Home
>>
Mercury
>>
1991
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Fuse 5
Fuse 5

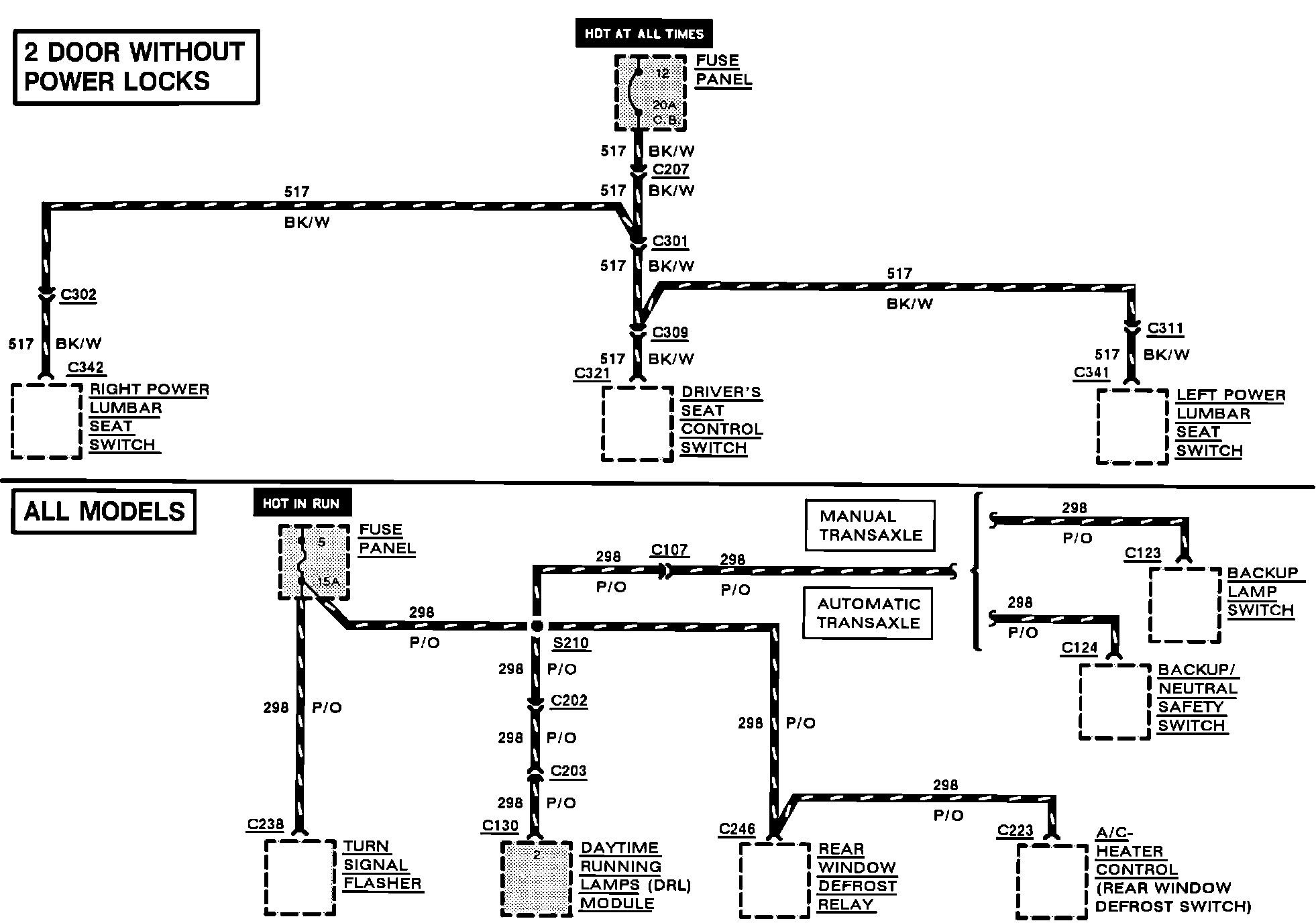

Power Distribution (C.B. 12, Fuse 5):
