Mercury
>>
1991
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>

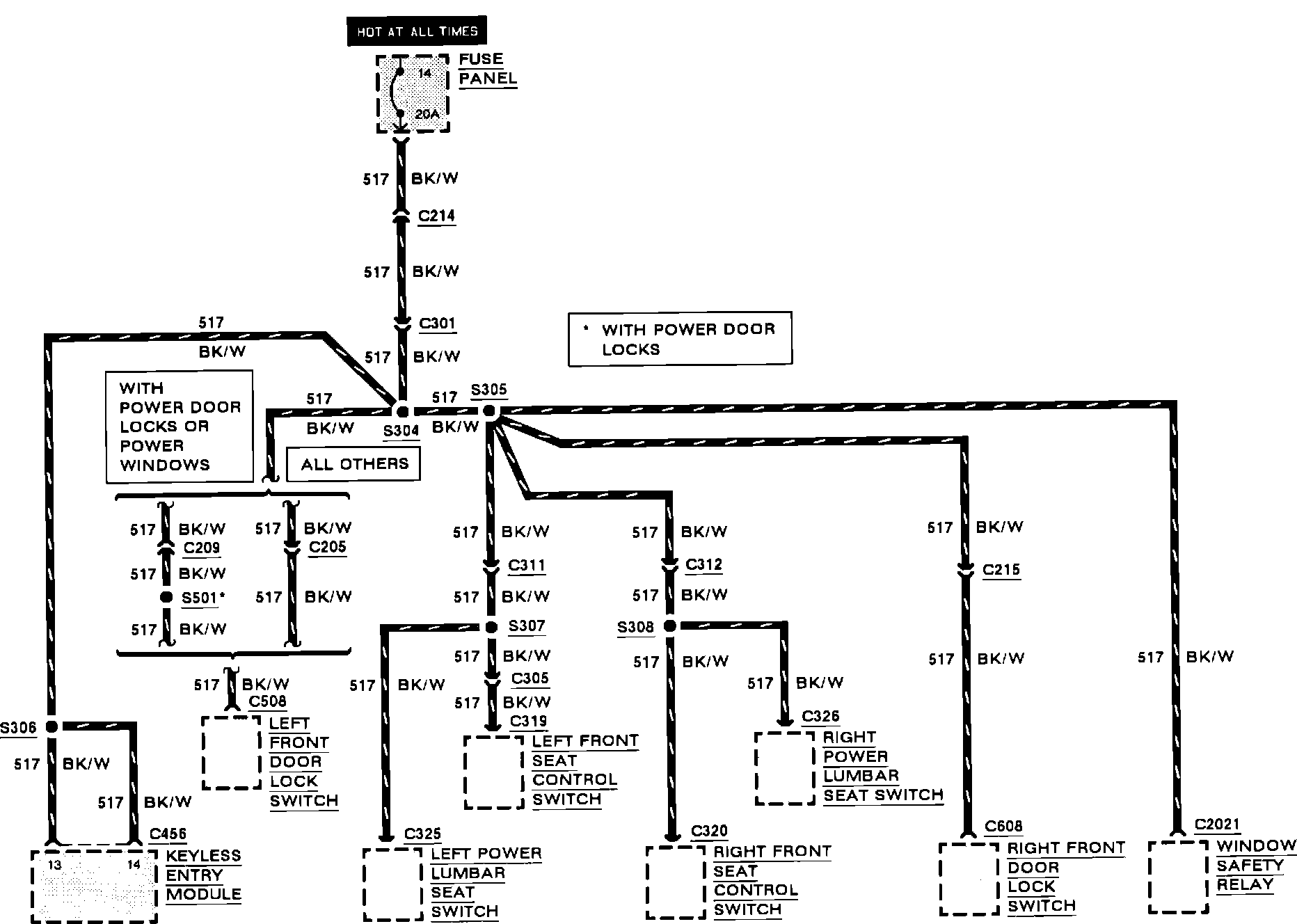

Circuit Breaker 14
Circuit Breaker 14
Power Distribution (Fuse 8):
