Mercury
>>
1991
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>

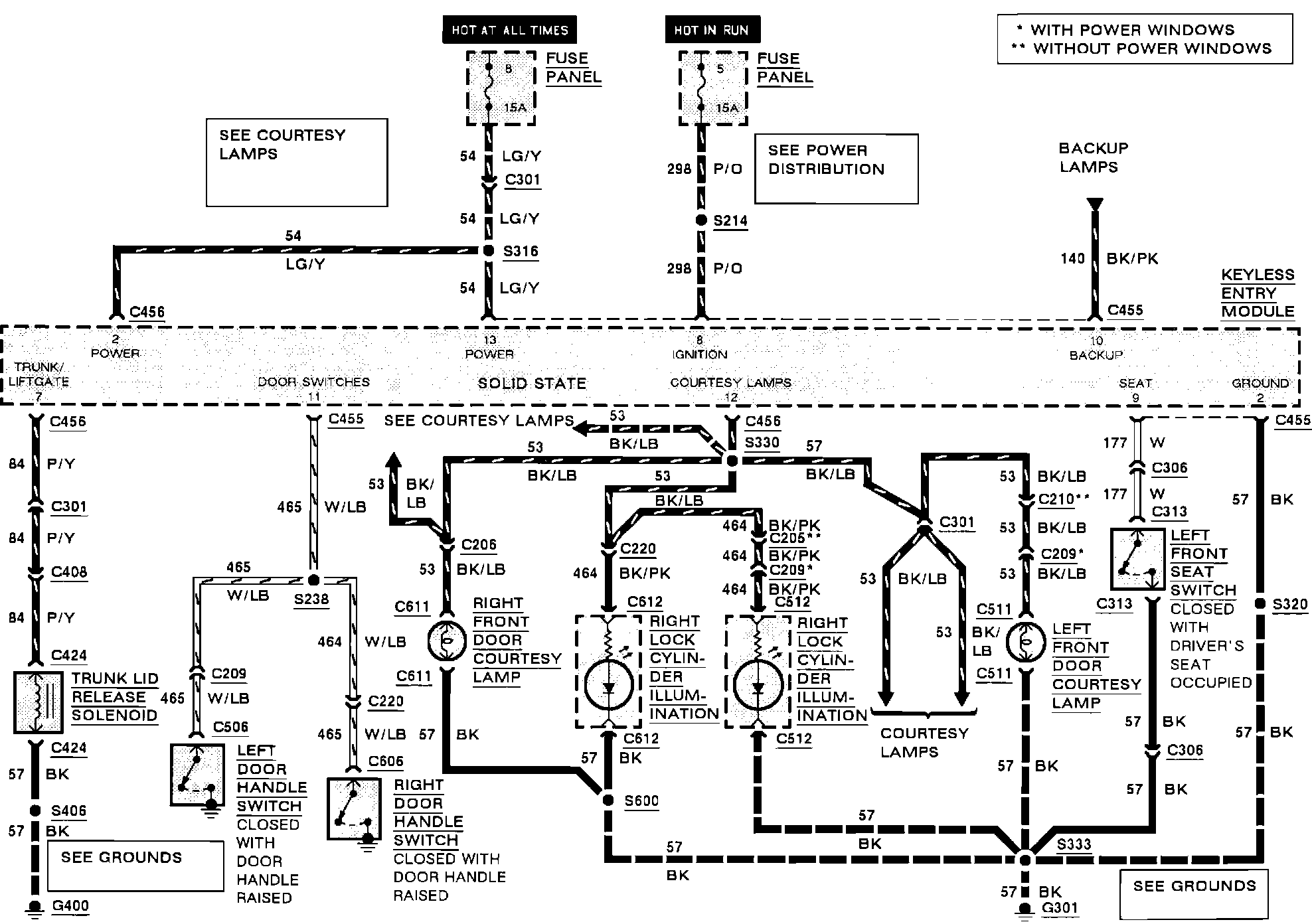

System Diagram
>>
With Keyless Entry
With Keyless Entry
Keyless Entry:
Keyless Entry:
