Mercury
>>
1991
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

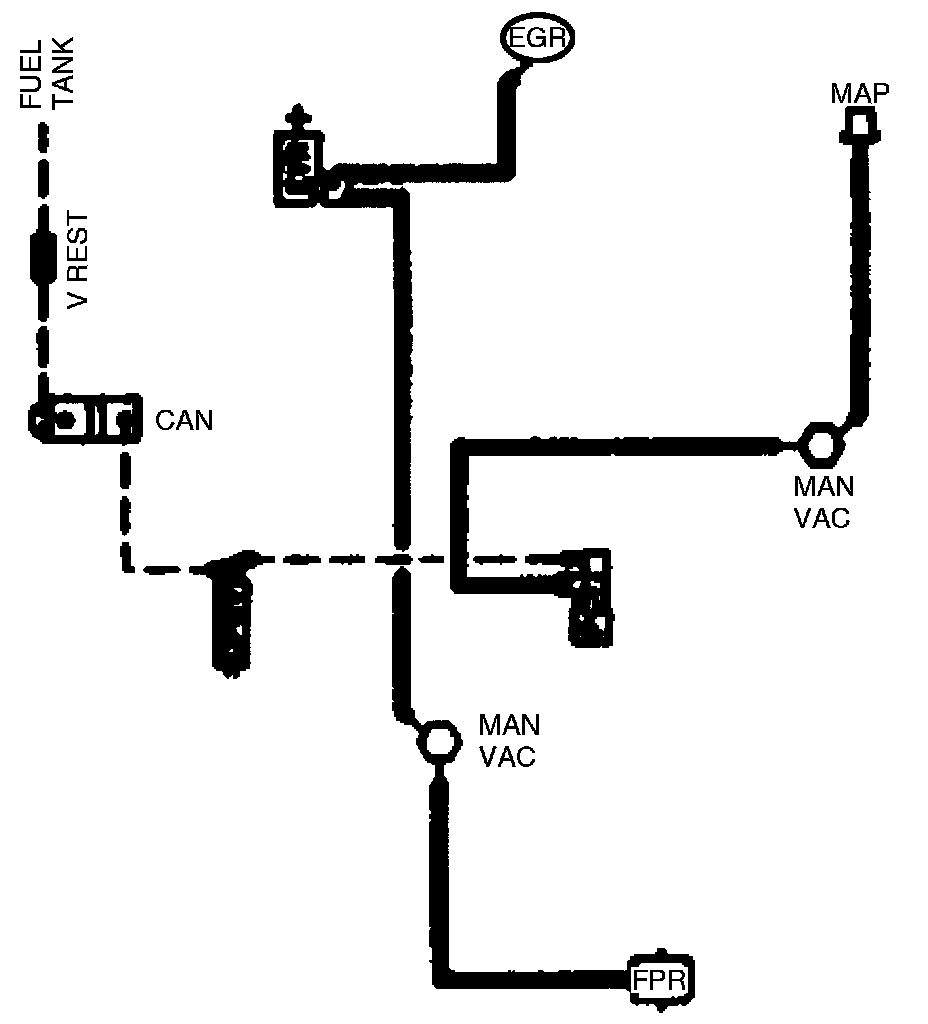

Vacuum and Vapor Hose Diagrams
>>
Diagrams By Calibration Code
>>
California
>>
1-09T-R10
1-09T-R10
