NA - TFI Ignition Diagnostic Monitor
>>
NA - Testing Schematic
NA - Testing Schematic

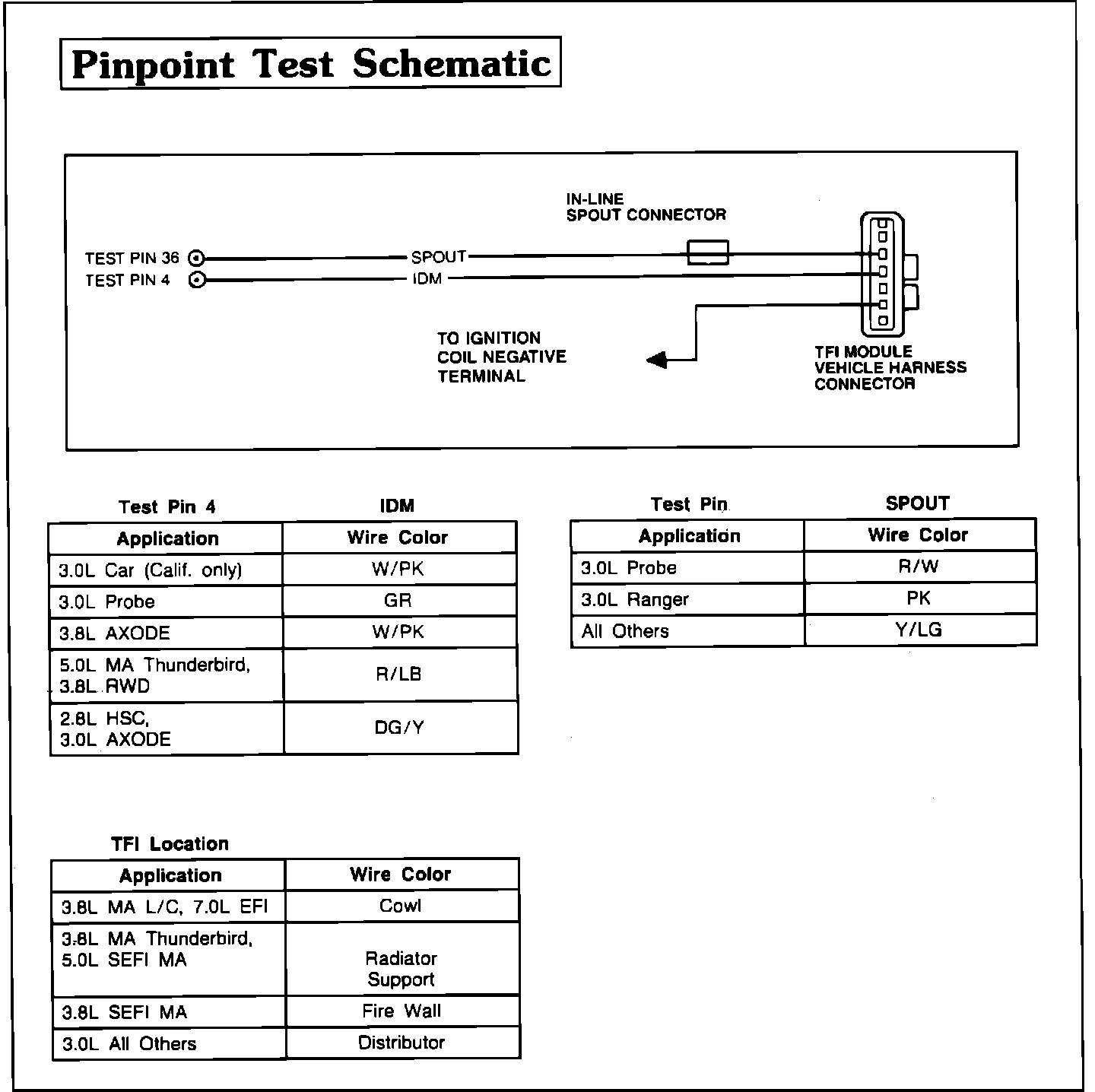

Pinpoint Test Schematic:
