Home
>>
Mercury
>>
1991
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KD - Canister Purge (CANP) Solenoid
>>
KD - Testing Schematic
KD - Testing Schematic

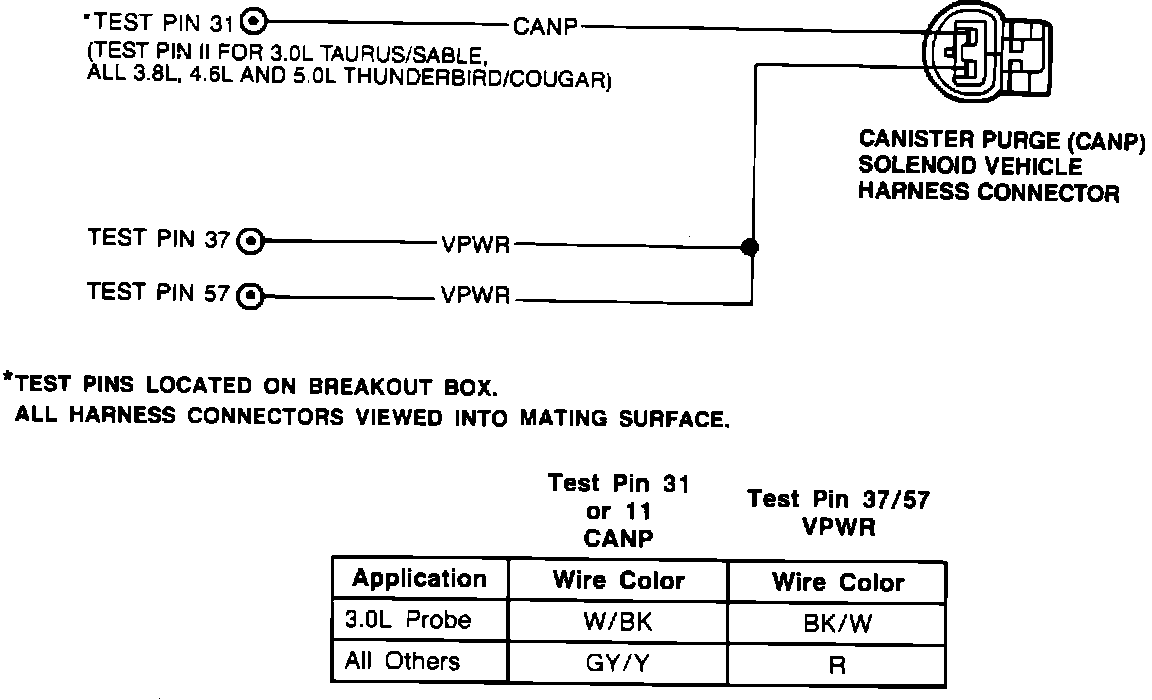

Pinpoint Test Schematic:
