Home
>>
Mercury
>>
1991
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G108, G111
G108, G111

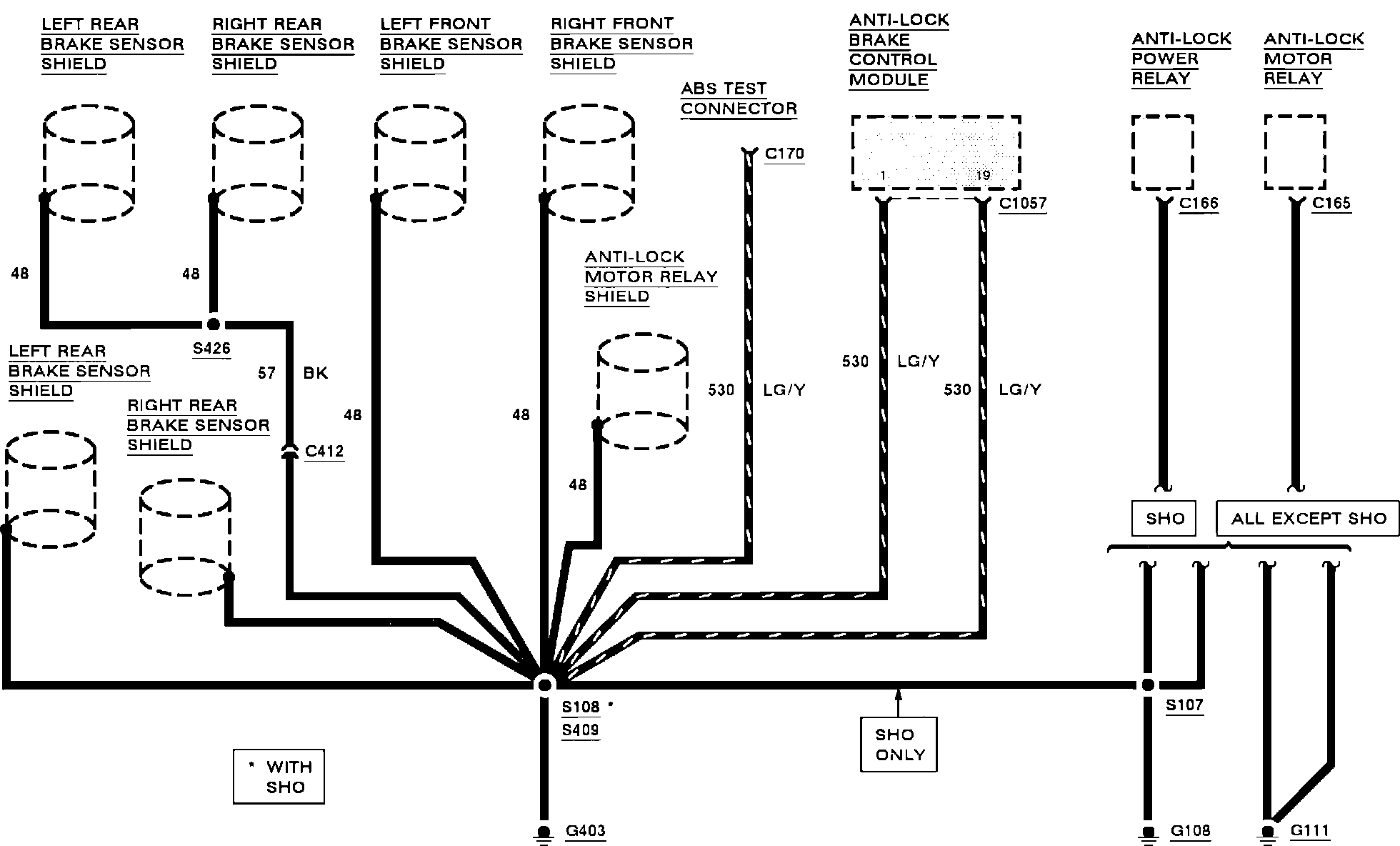

Grounds (G108, G111):
