Passive Restraint Quick Test

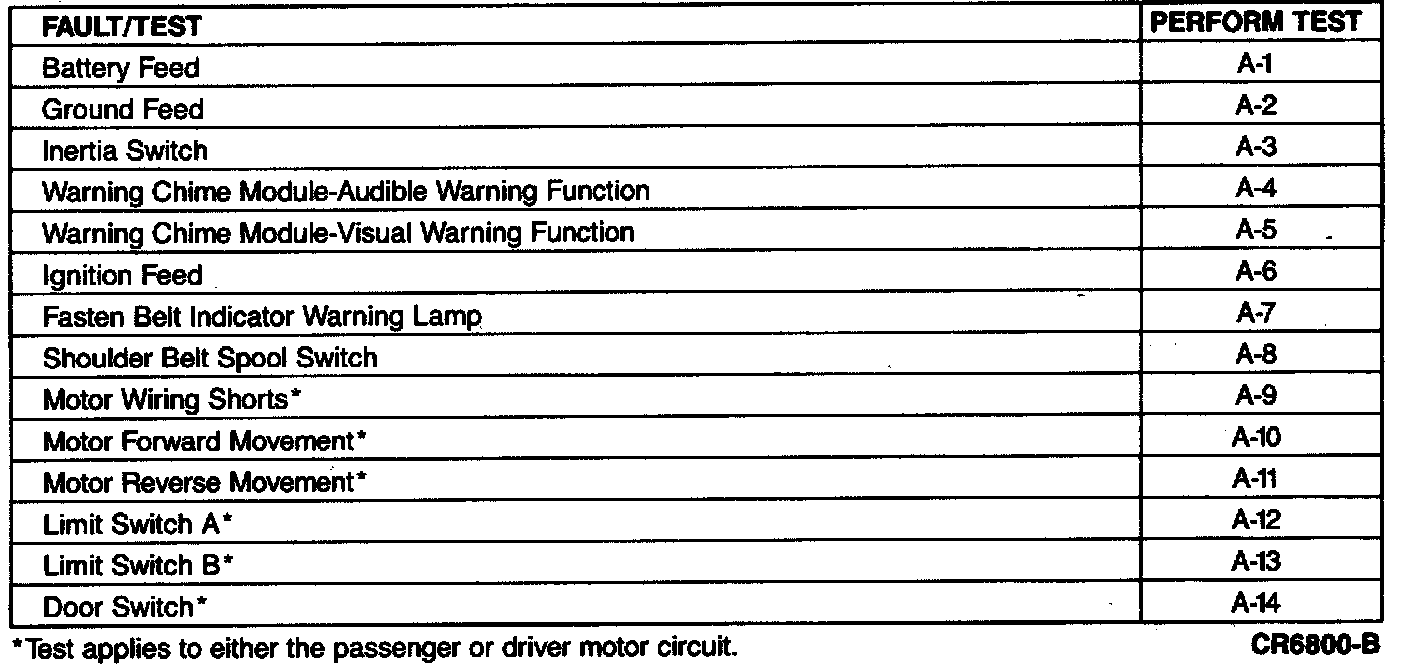

Passive Restraint Fault/Test Reference Guide:

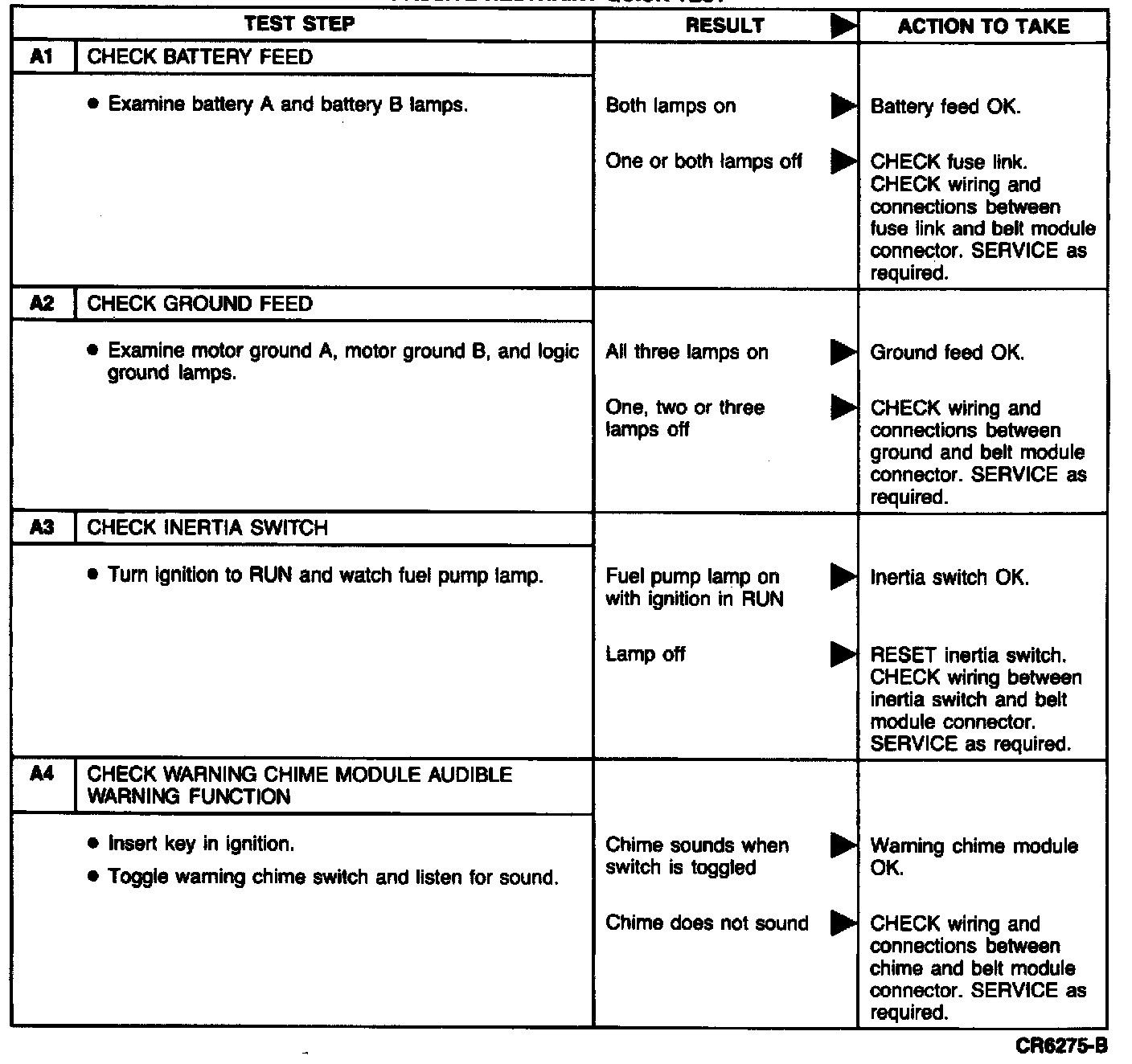

A1 - A4:

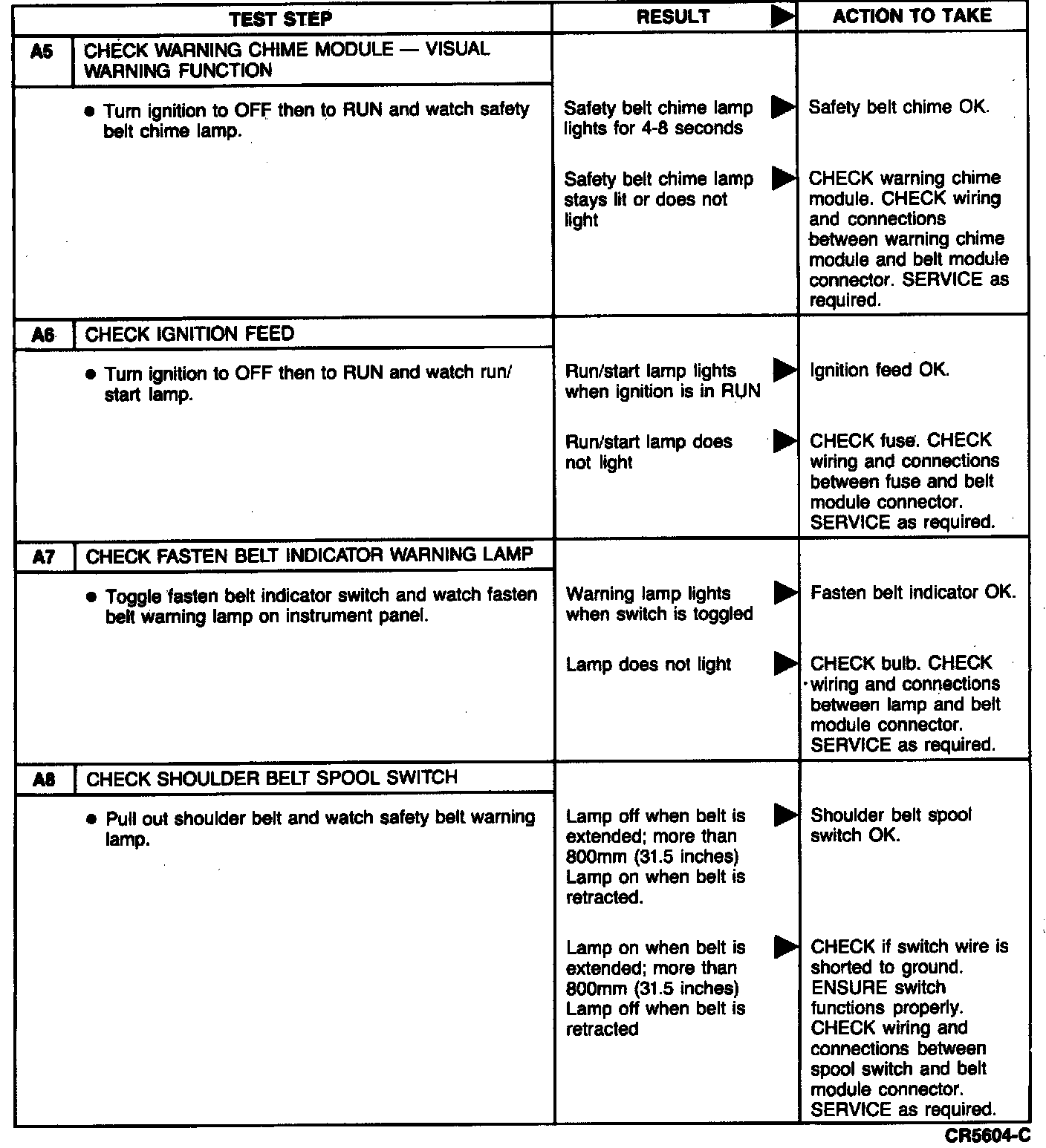

A5 - A8:

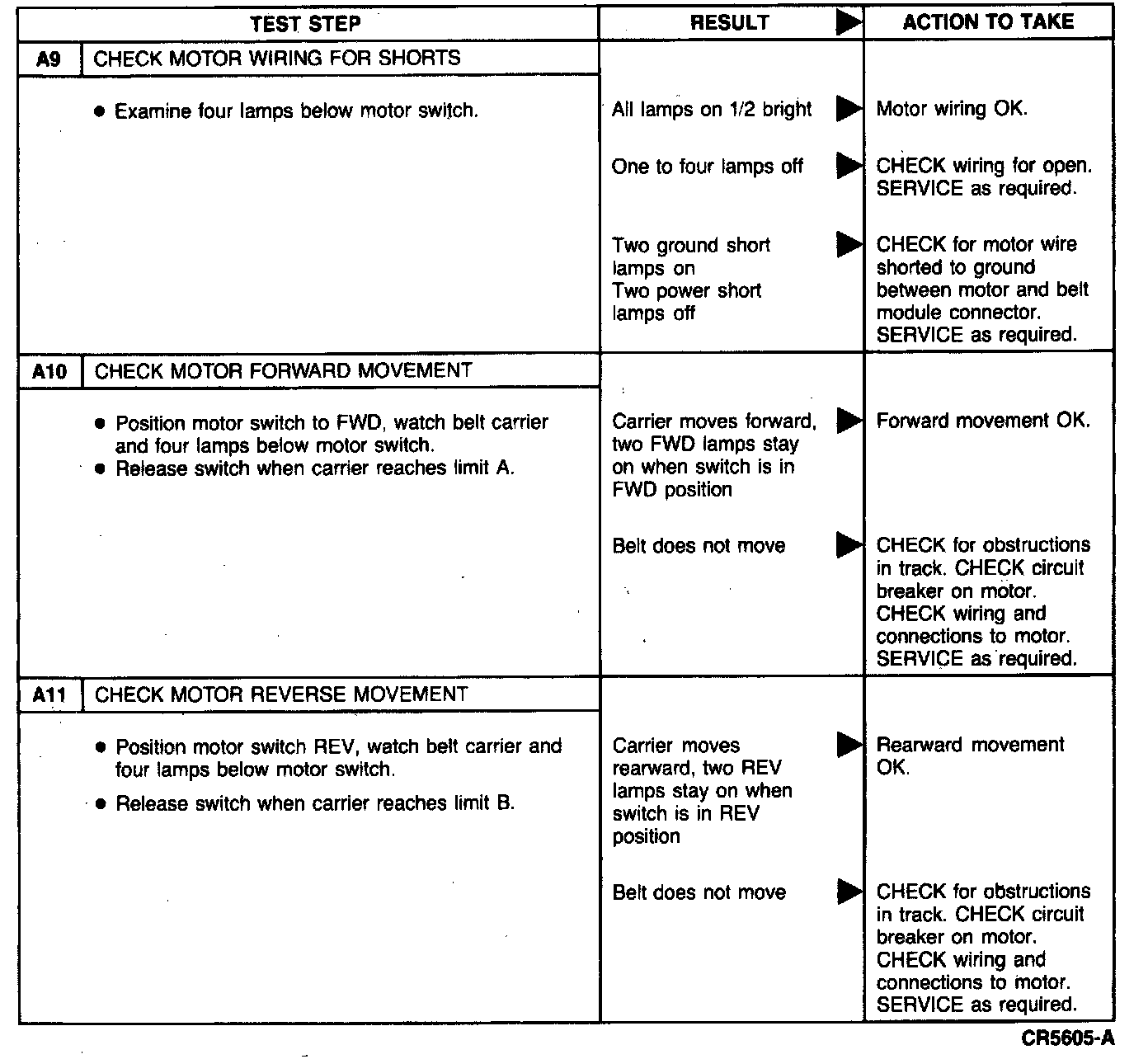

A9 - A11:

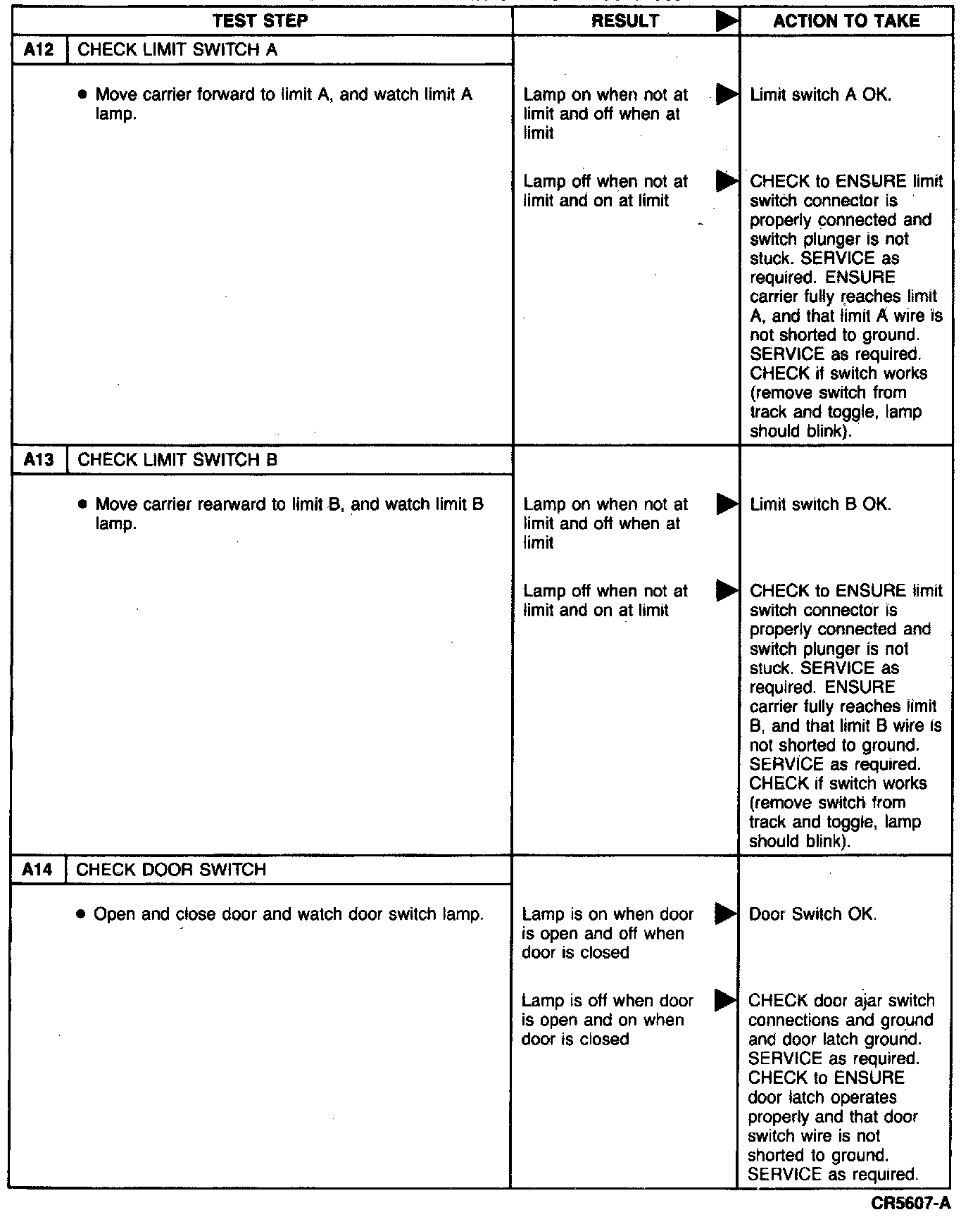

A12 - A14:
