Home >> Mercury >> 1991 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Fuses >> Cigar Lighter and Turn

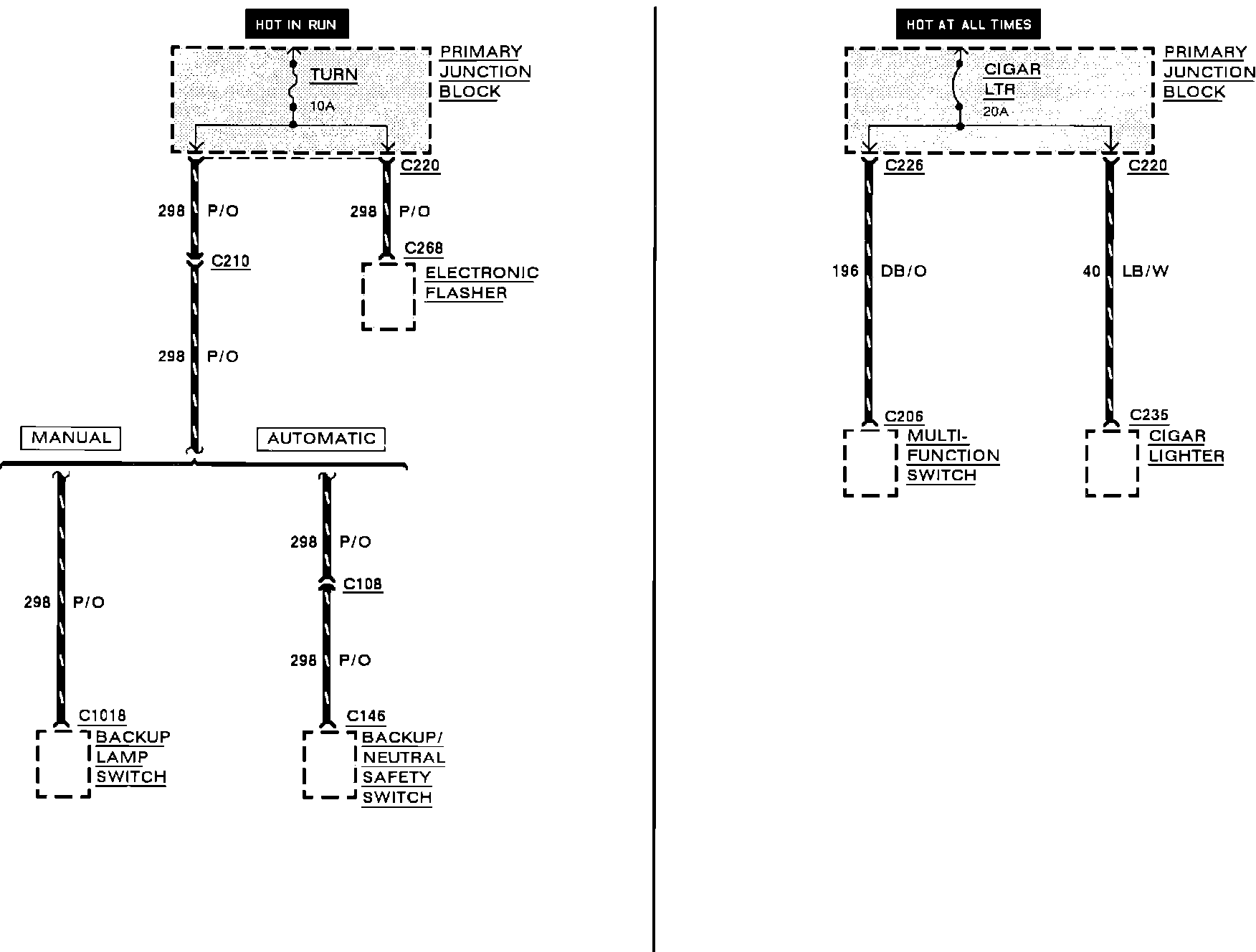

Cigar Lighter and Turn

Power Distribution:
