Mercury
>>
1991
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Fuses
>>

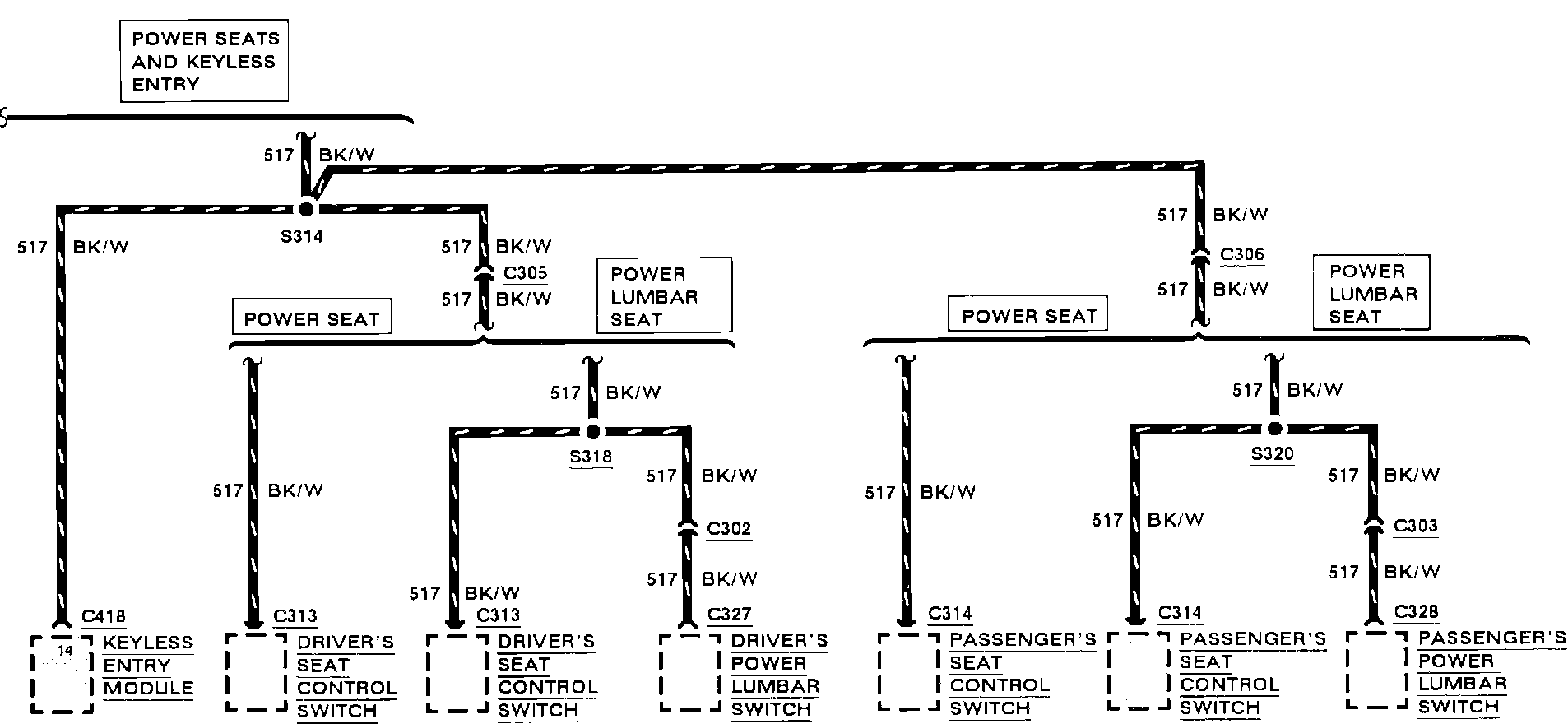

Seat/Lock
Seat/Lock

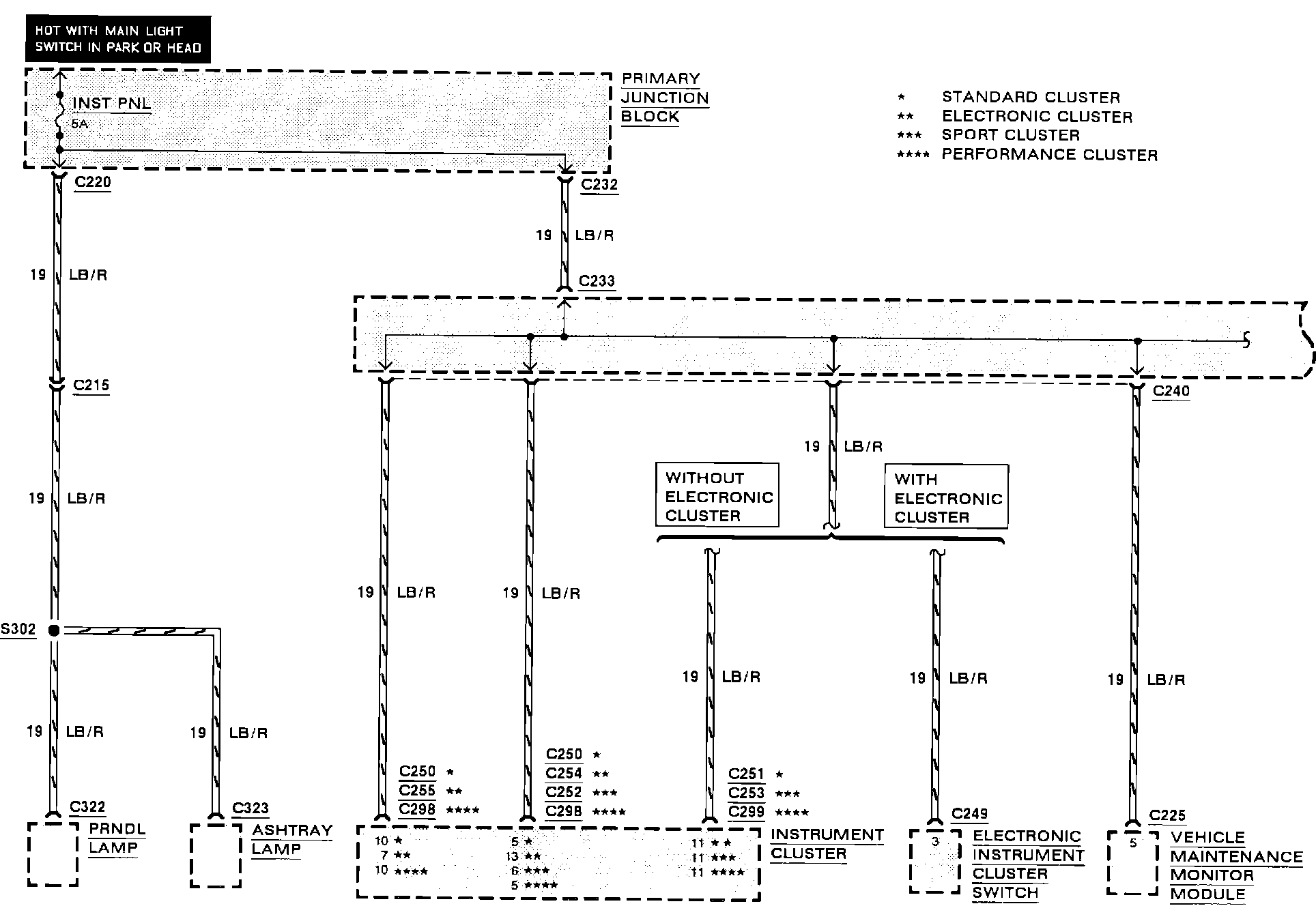

Power Distribution:
Power Distribution:
