Mercury
>>
1991
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>
Electronic Rear View Mirror
Electronic Rear View Mirror

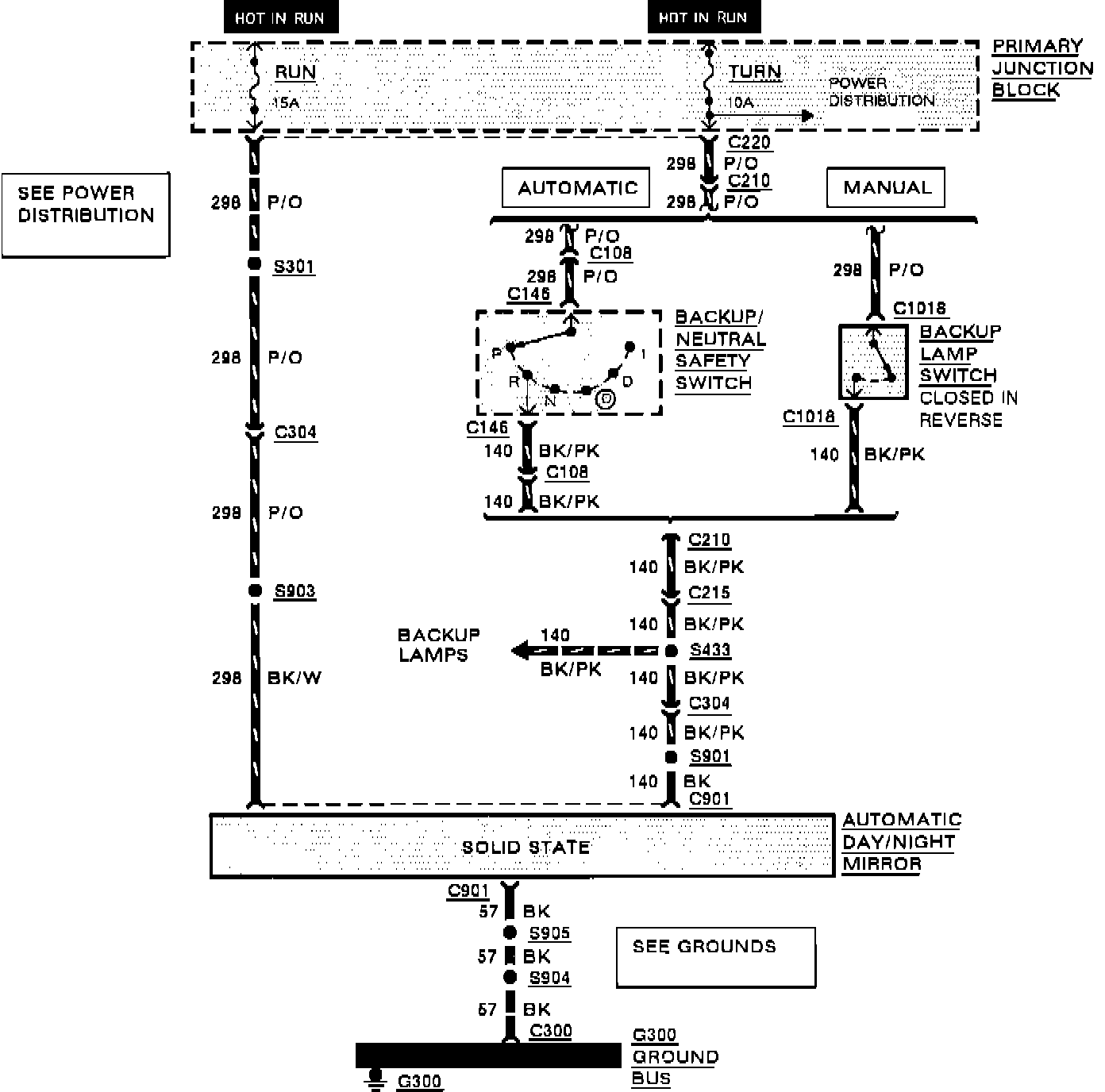

Automatic Day/Night Mirror:
