Mercury
>>
1991
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Systems
>>
Seat Belt Control Module
Seat Belt Control Module

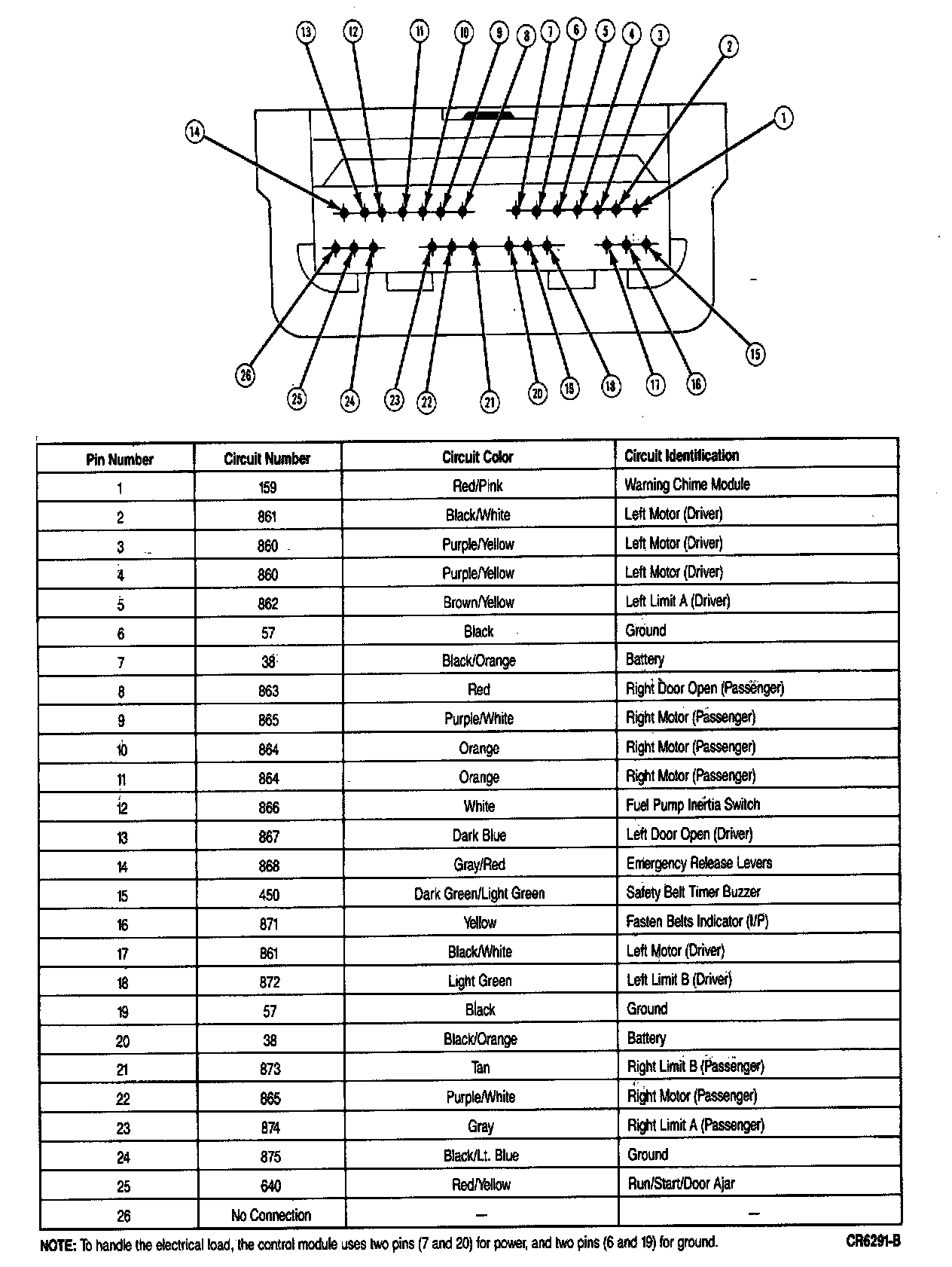

Connector View:
Harness Connector:
