Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1991
>>
Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
FF DTC 61 Warning Circuit Diagnosis
>>
FF2D
FF2D

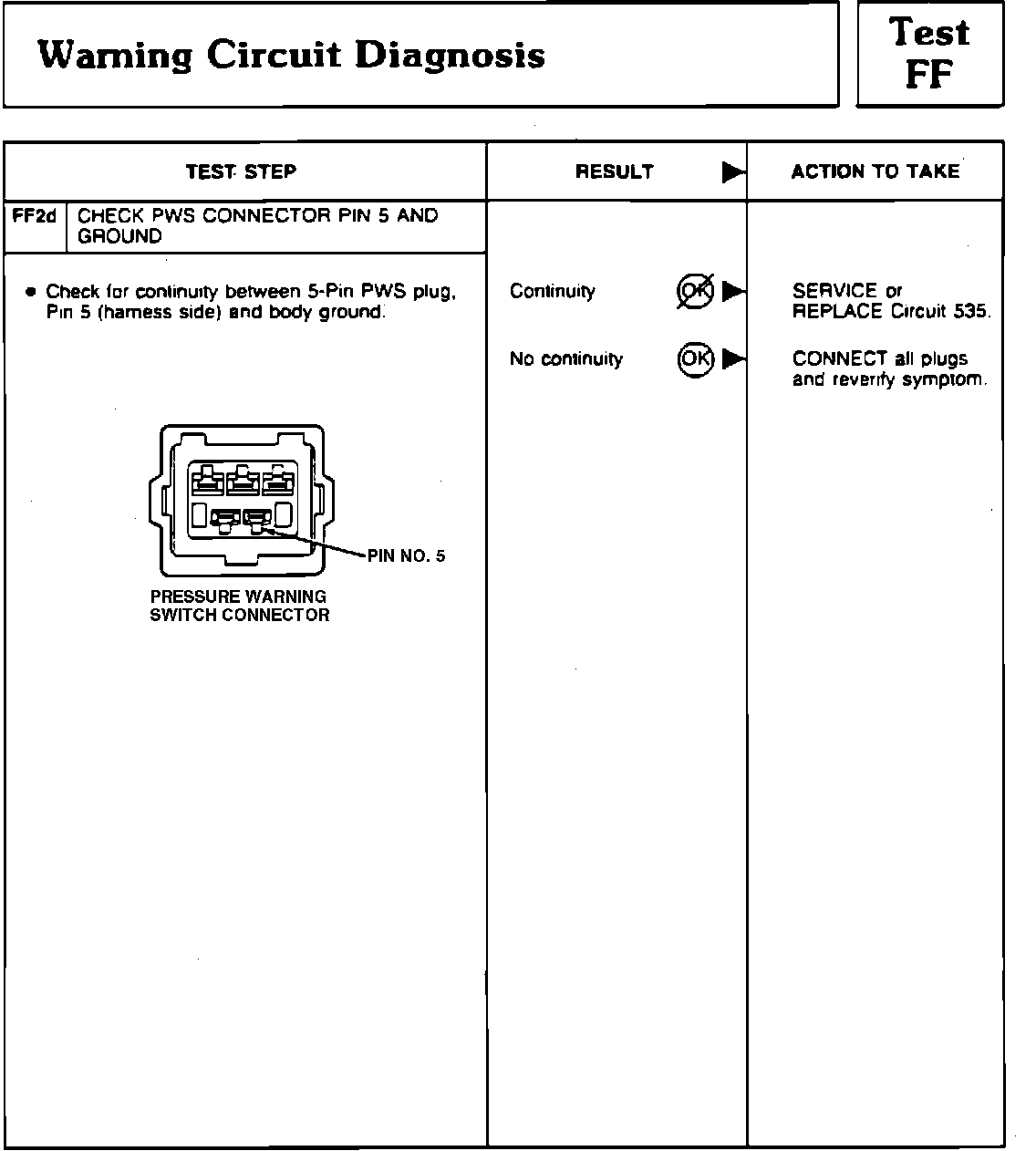

Fig. 17 Test FF, Warning Circuit Diagnosis (Part 6 Of 6):
