Cougar/XR7 V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DD Wheel Sensor Diagnosis
>>
DD26
DD26

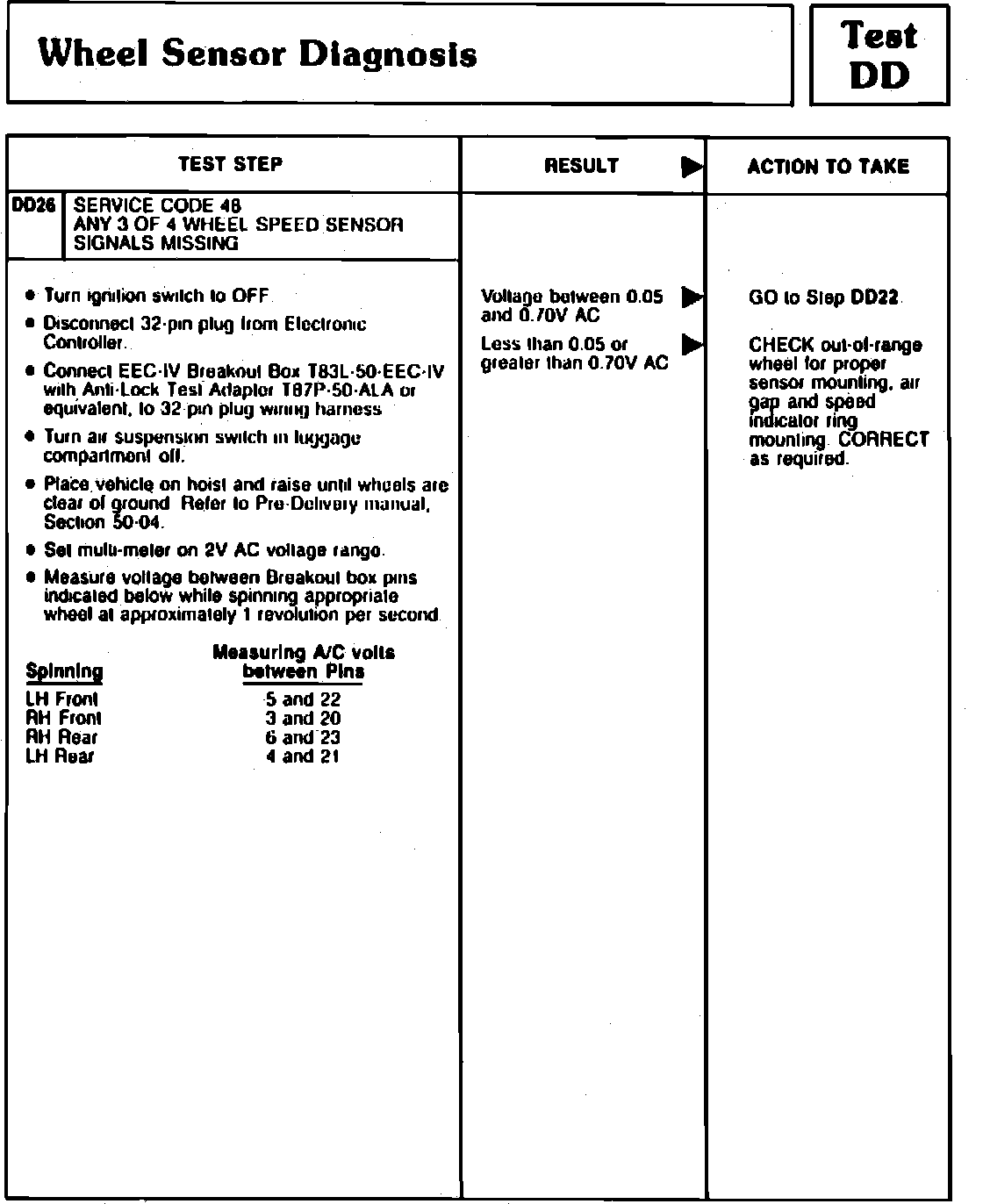

Fig. 15 Test DD, Wheel Sensor Diagnosis (Part 12 Of 12):
