DD Wheel Sensor Diagnosis
>>
DD11 & DD11A
DD11 & DD11A

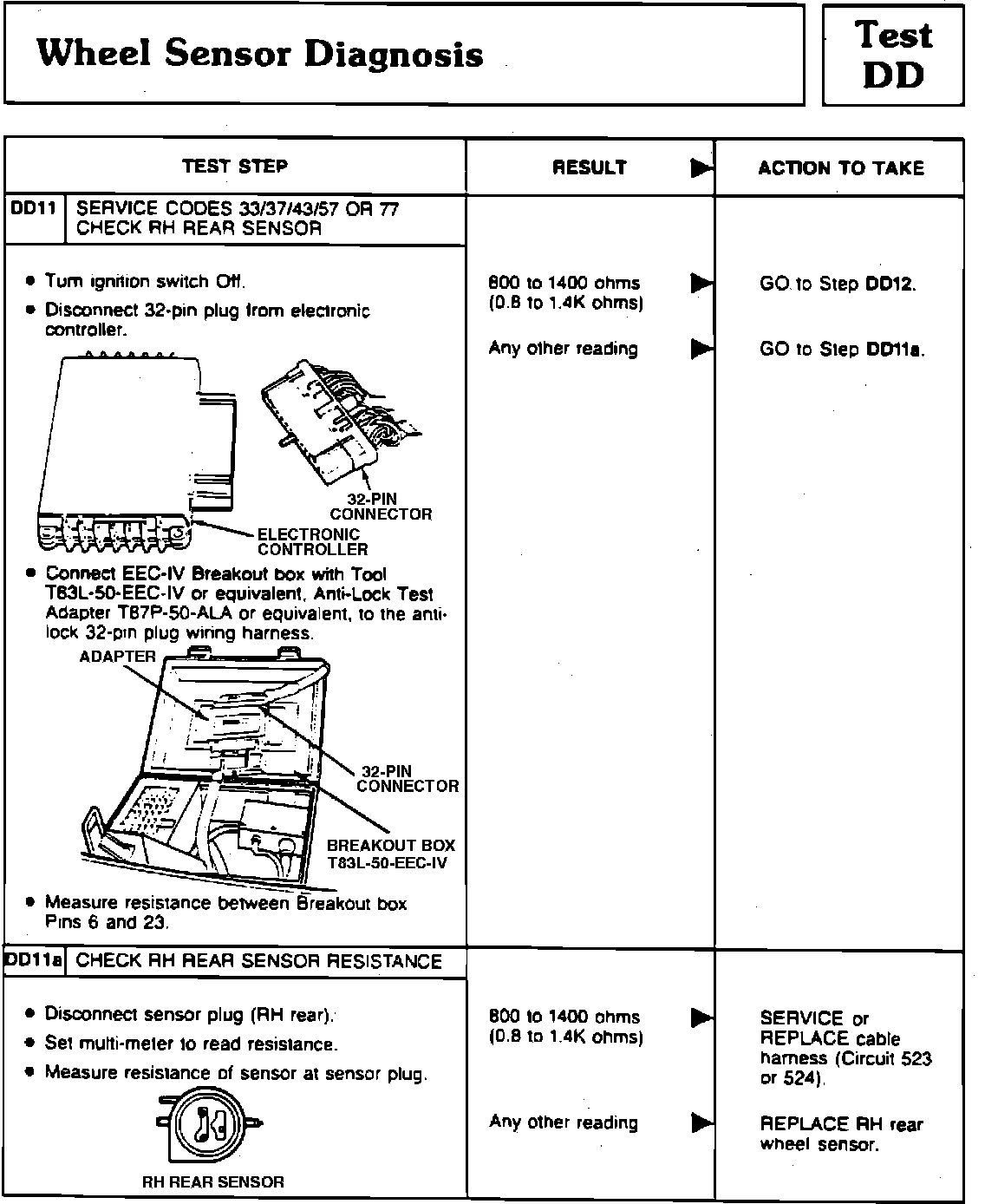

Fig. 15 Test DD, Wheel Sensor Diagnosis (Part 5 Of 12):
