Mercury
>>
1989
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

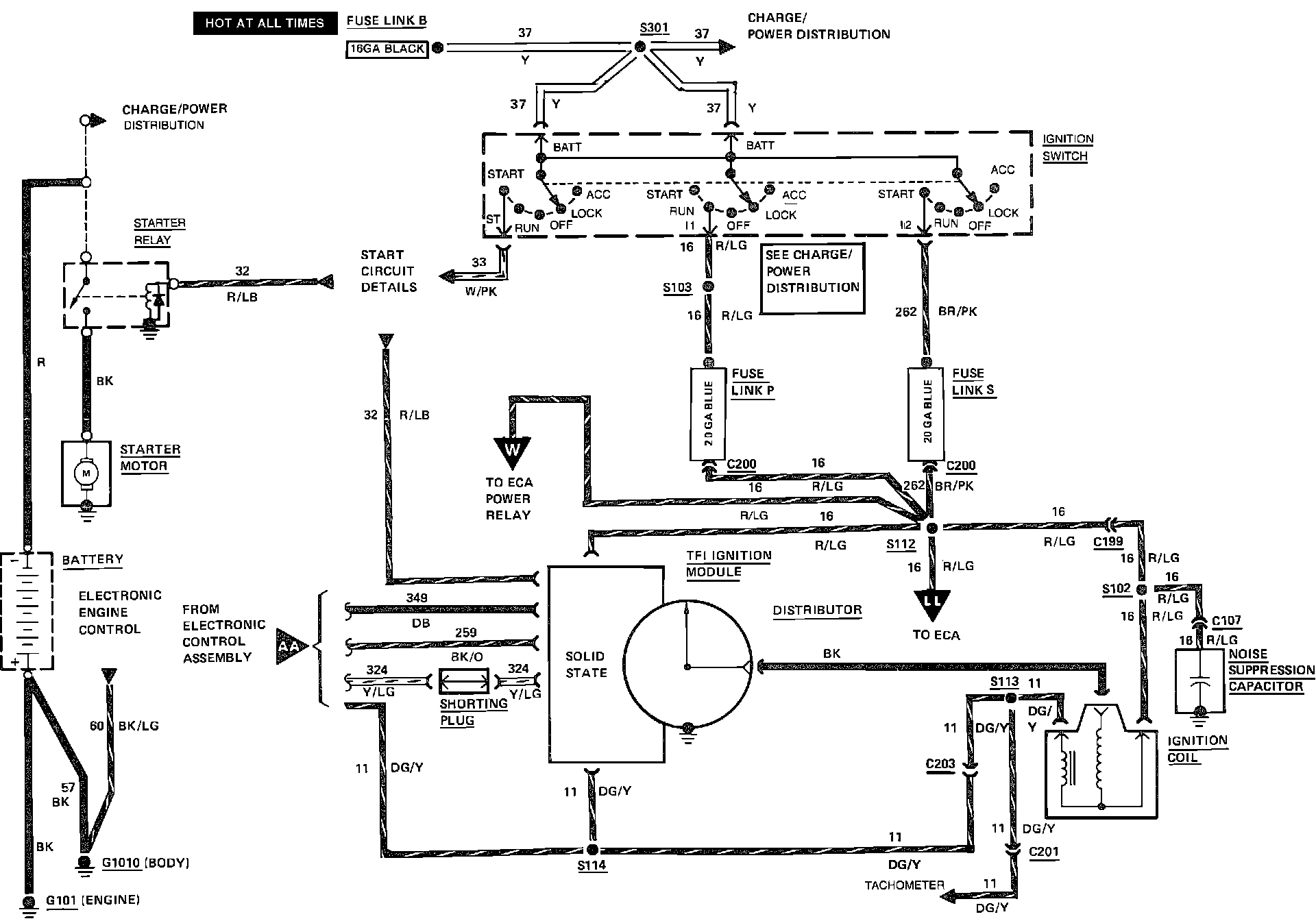

Ignition & Starter Wiring Circuit:

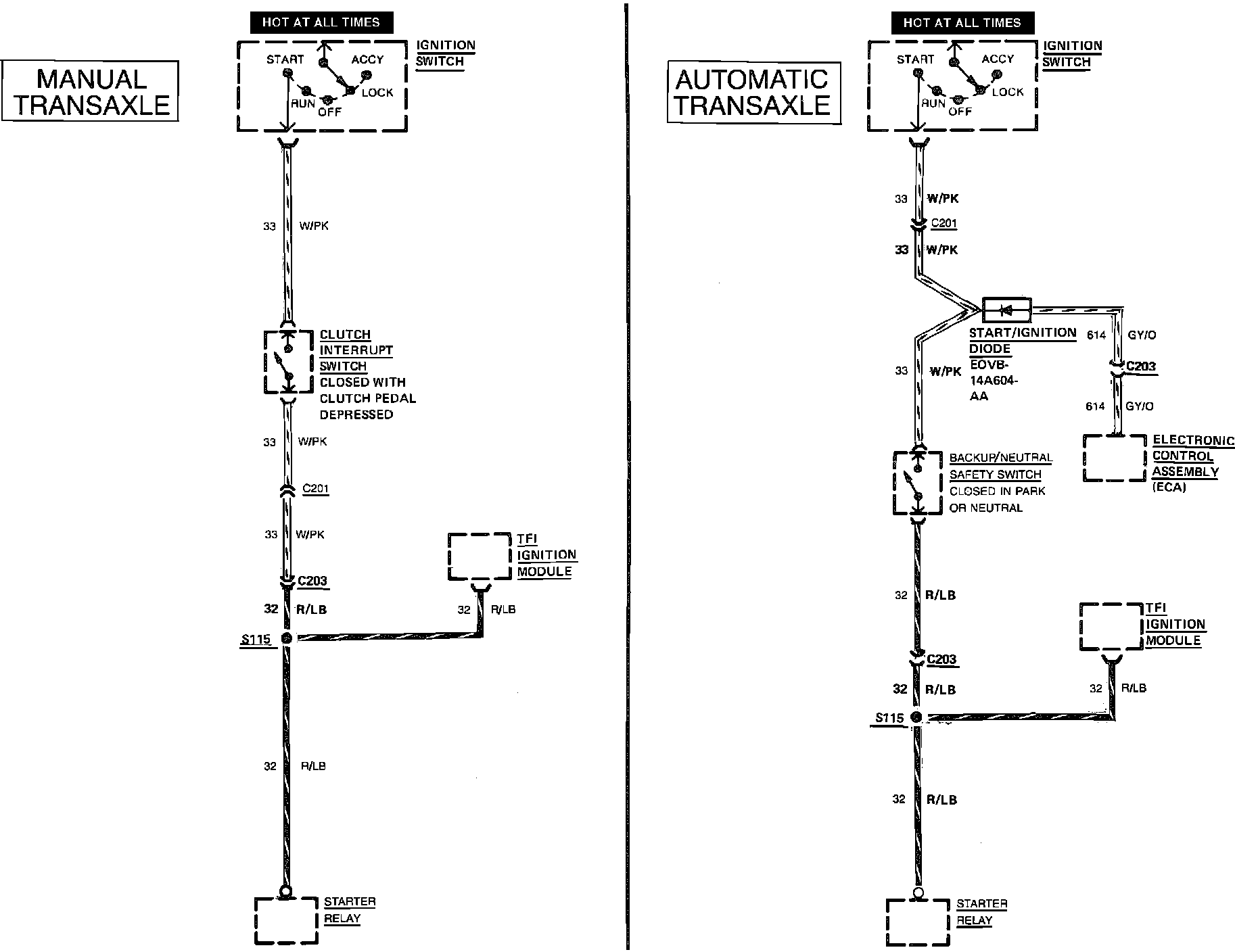

Ignition & Starter Wiring Circuit:
