Main
Main

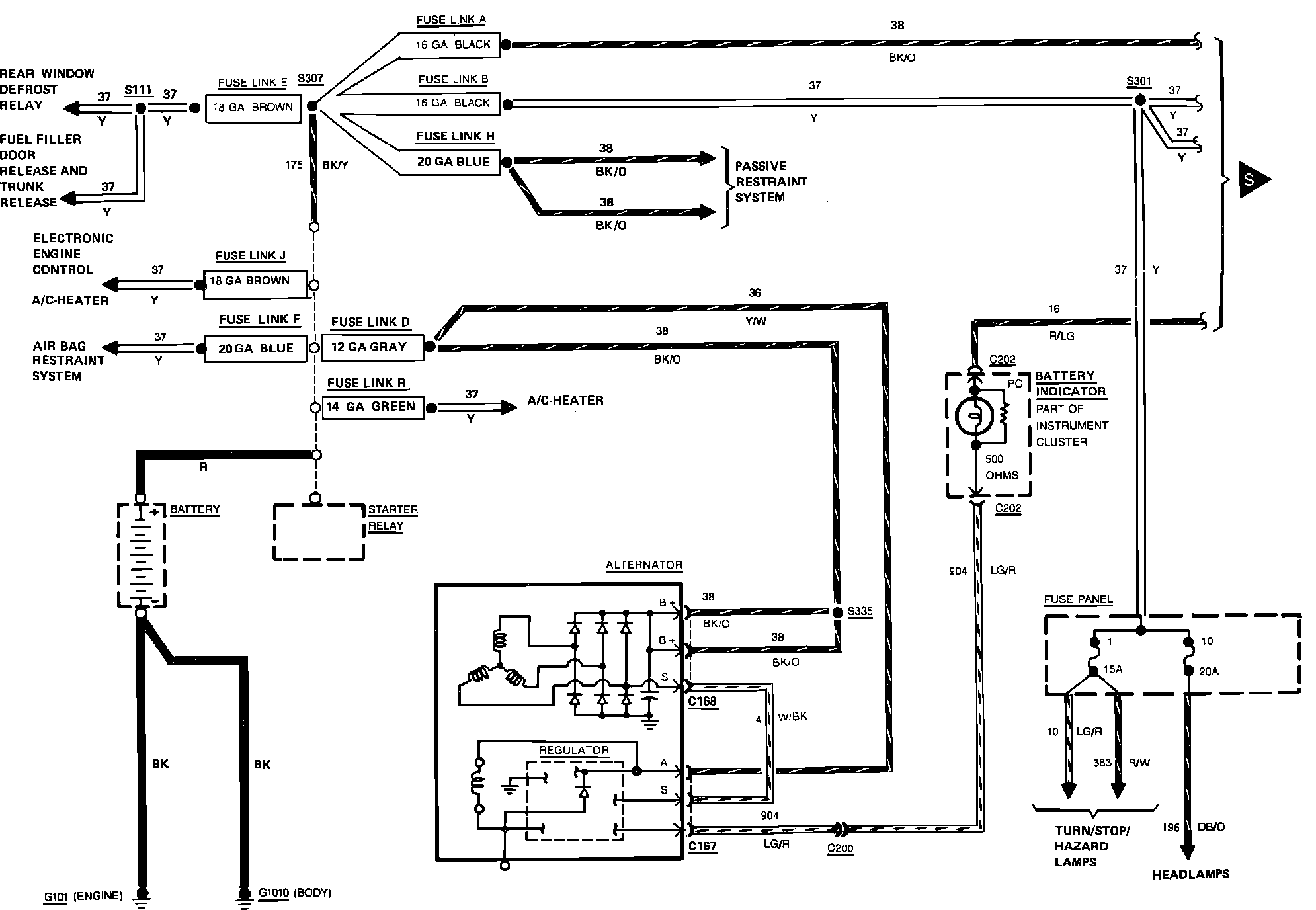

Charge And Power Distribution Wiring Circuit. Battery:

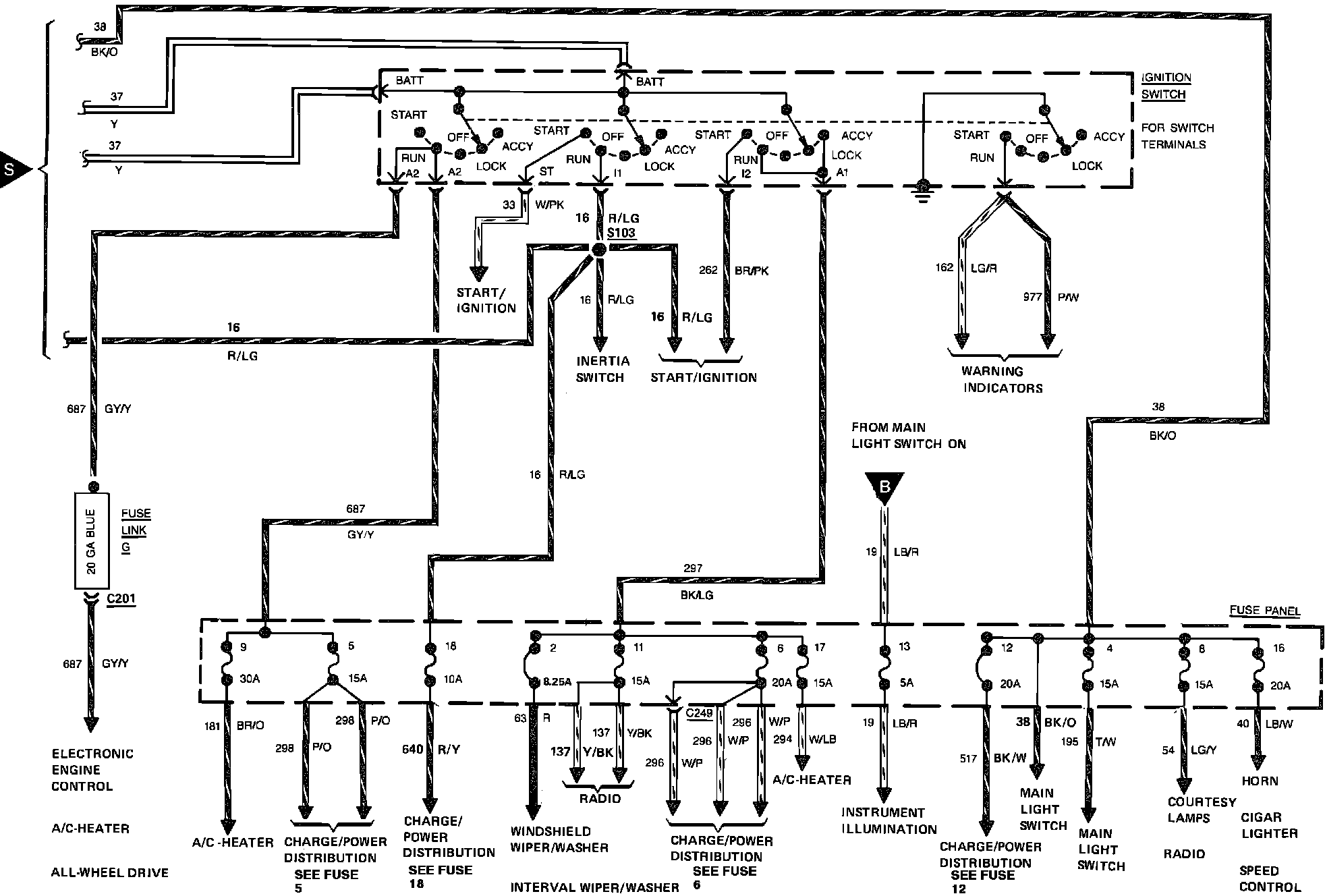

Charge And Power Distribution Wiring Circuit. Ignition Switch:
