Schematic and Connector Views Used With Pinpoint Tests

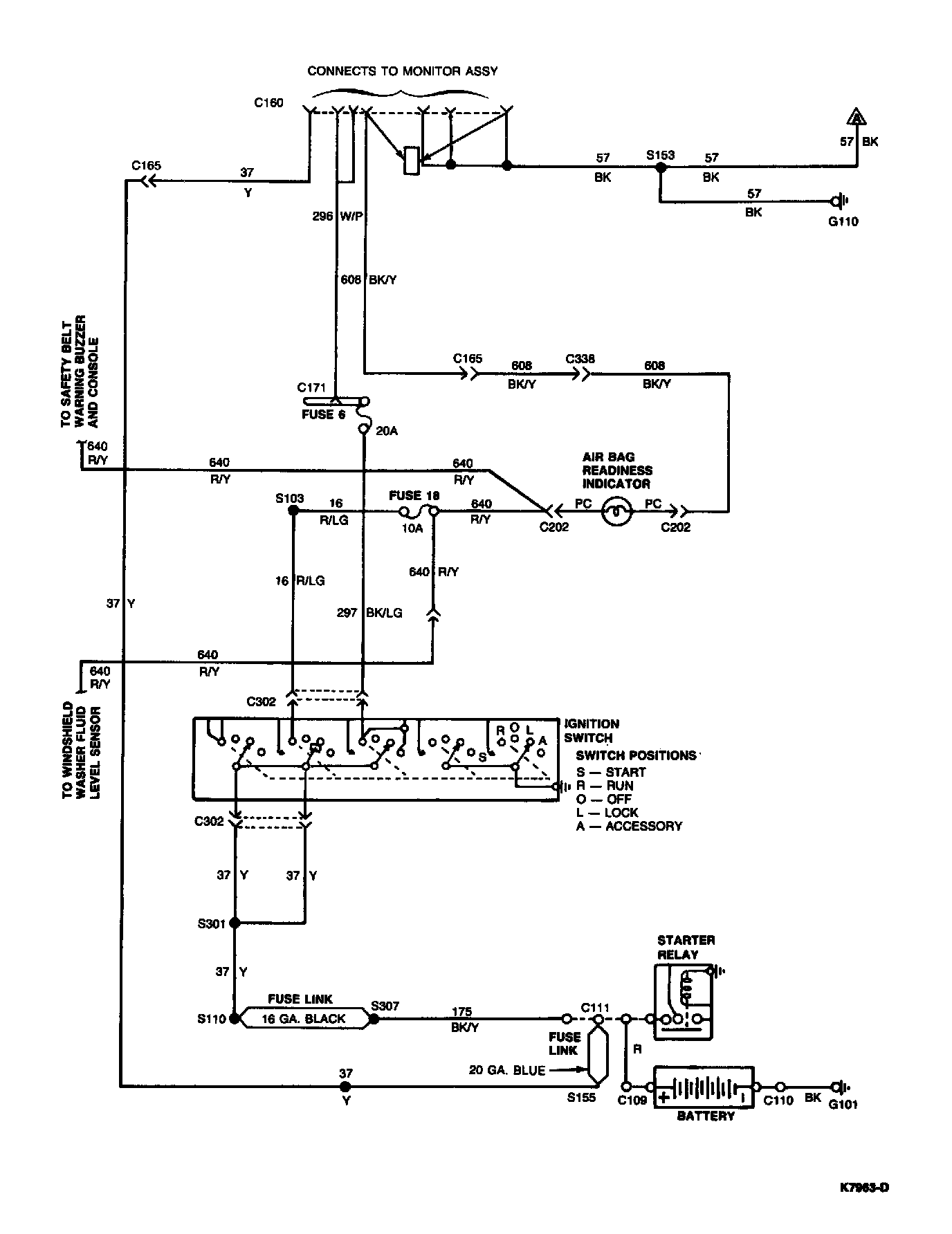

System Schematic (Part One):




System Schematic (Part Two):

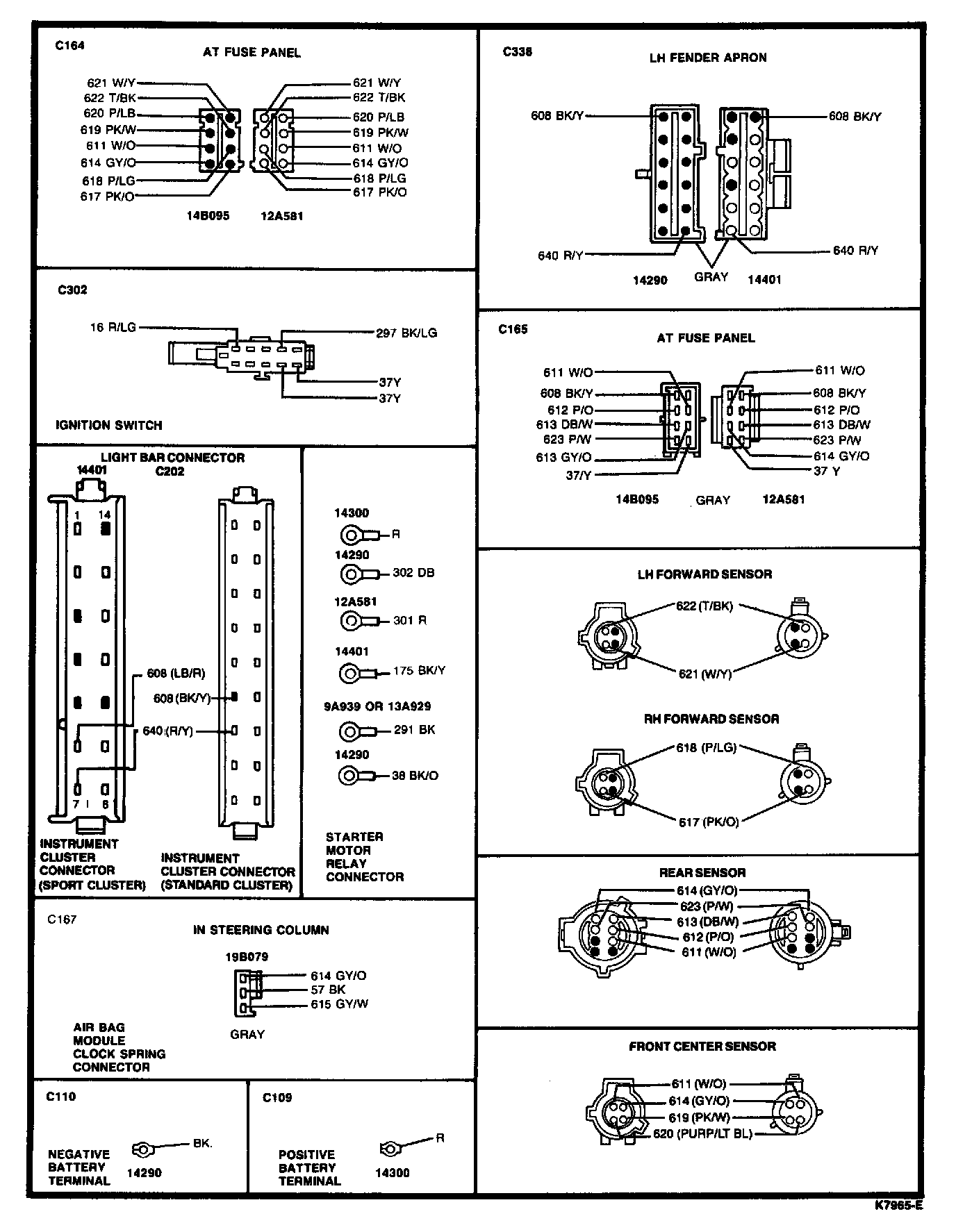

Connector Views:
