Mercury
>>
1989
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J - Fuel Pump Circuit
>>
J30 - J31
J30 - J31

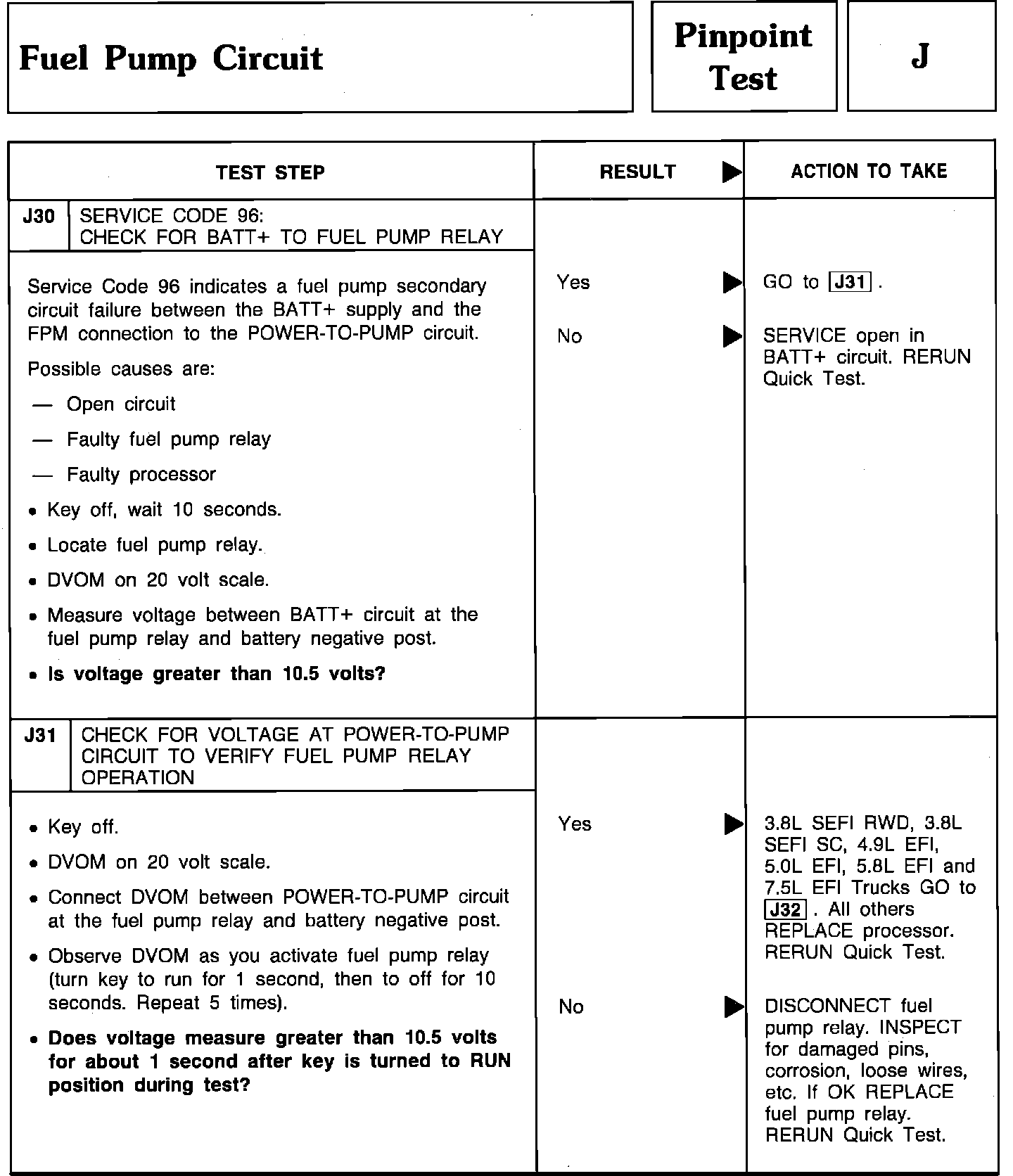

Pinpoint Test J30 Thru J31 - Fuel Pump Circuit:
