Mercury
>>
1989
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G710
G710

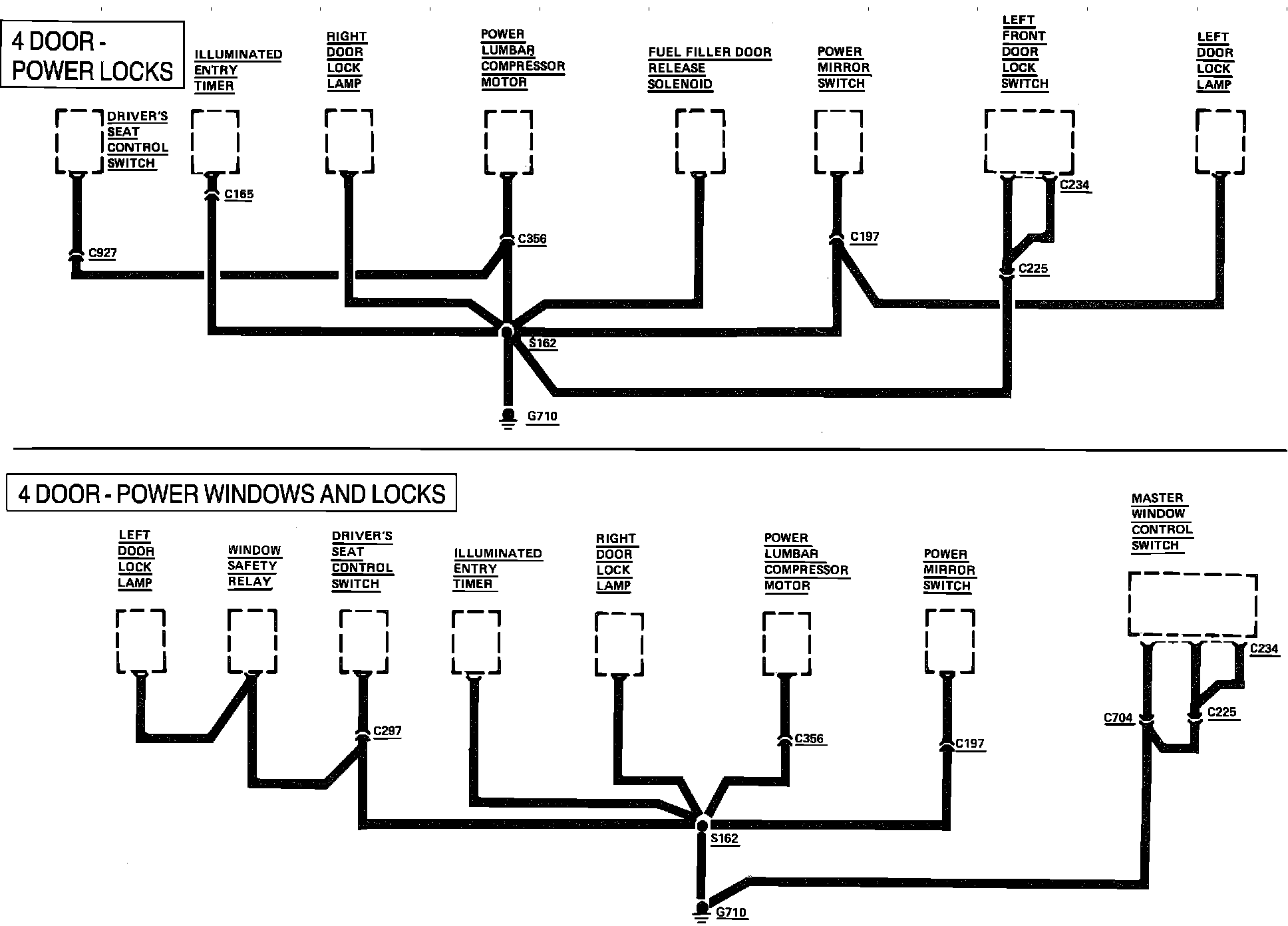

Ground Distribution. G710:

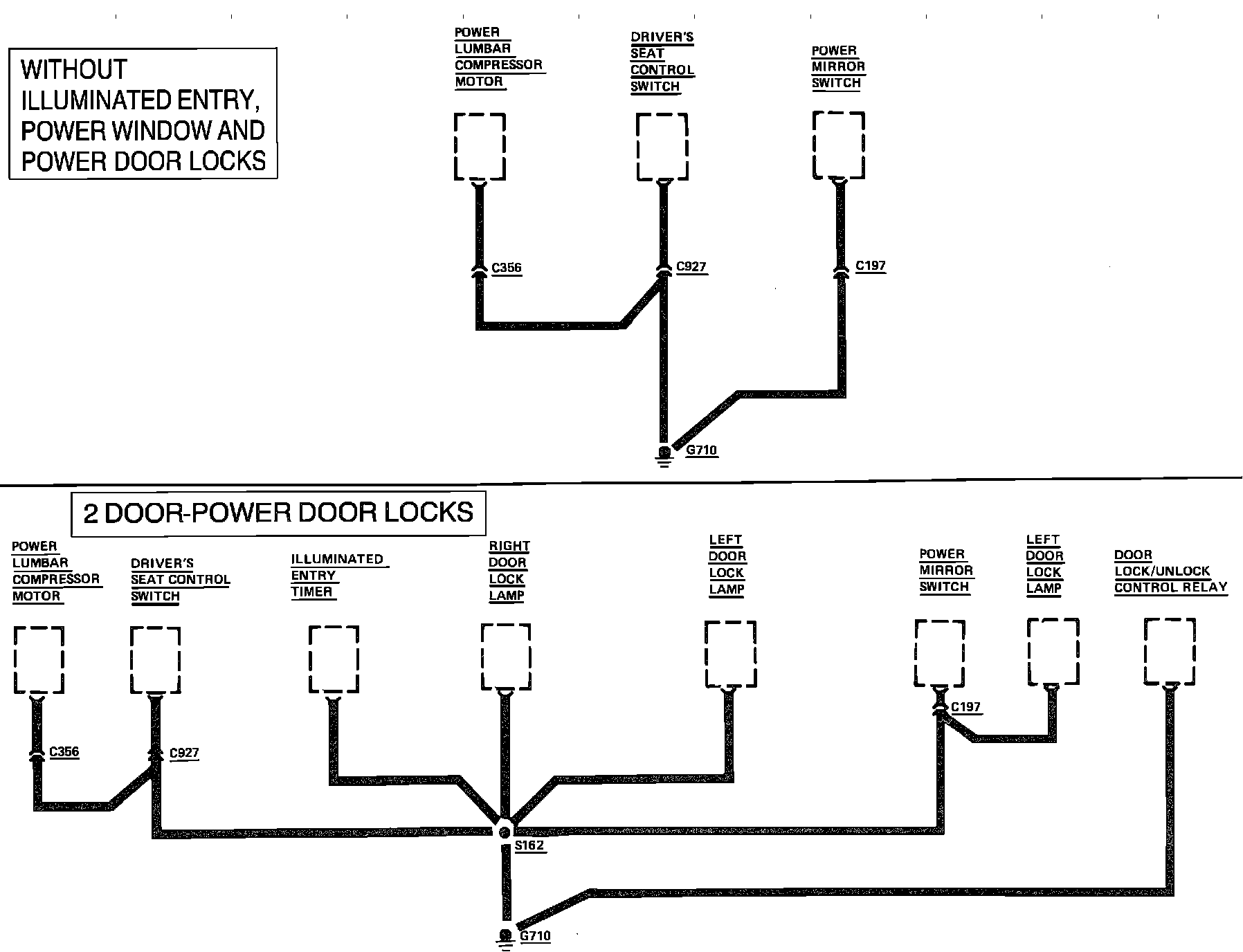

Ground Distribution. G710:
