Mercury
>>
1989
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
>>
Two Door Models
Two Door Models

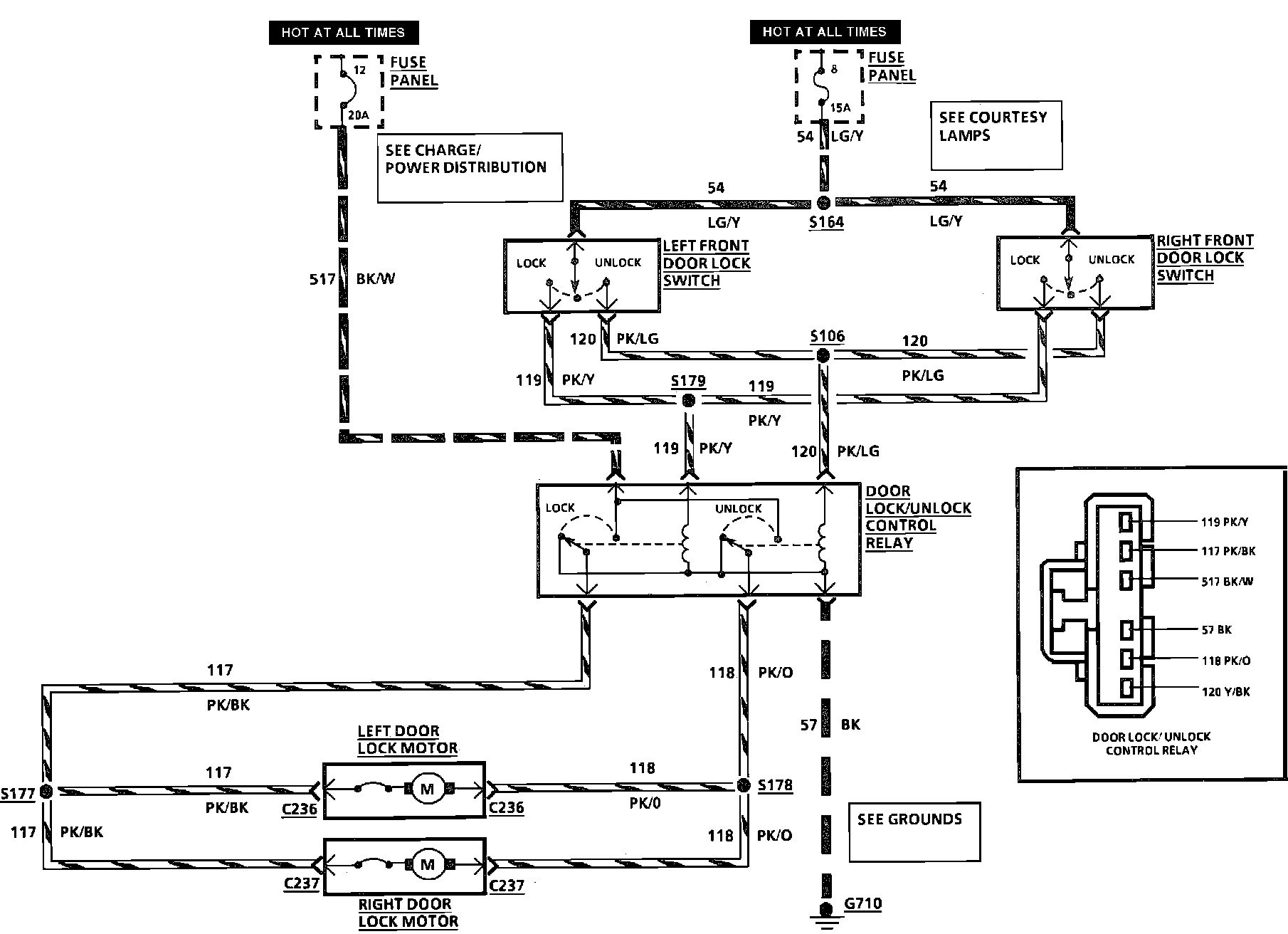

Power Door Locks Wiring Circuit. 2-Door:
