Home >> Mercury >> 1989 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> Recall - Seat Belt Buckle Replacement >> Attachment III - Technical Instruction >> 1991 Explorer

1991 Explorer

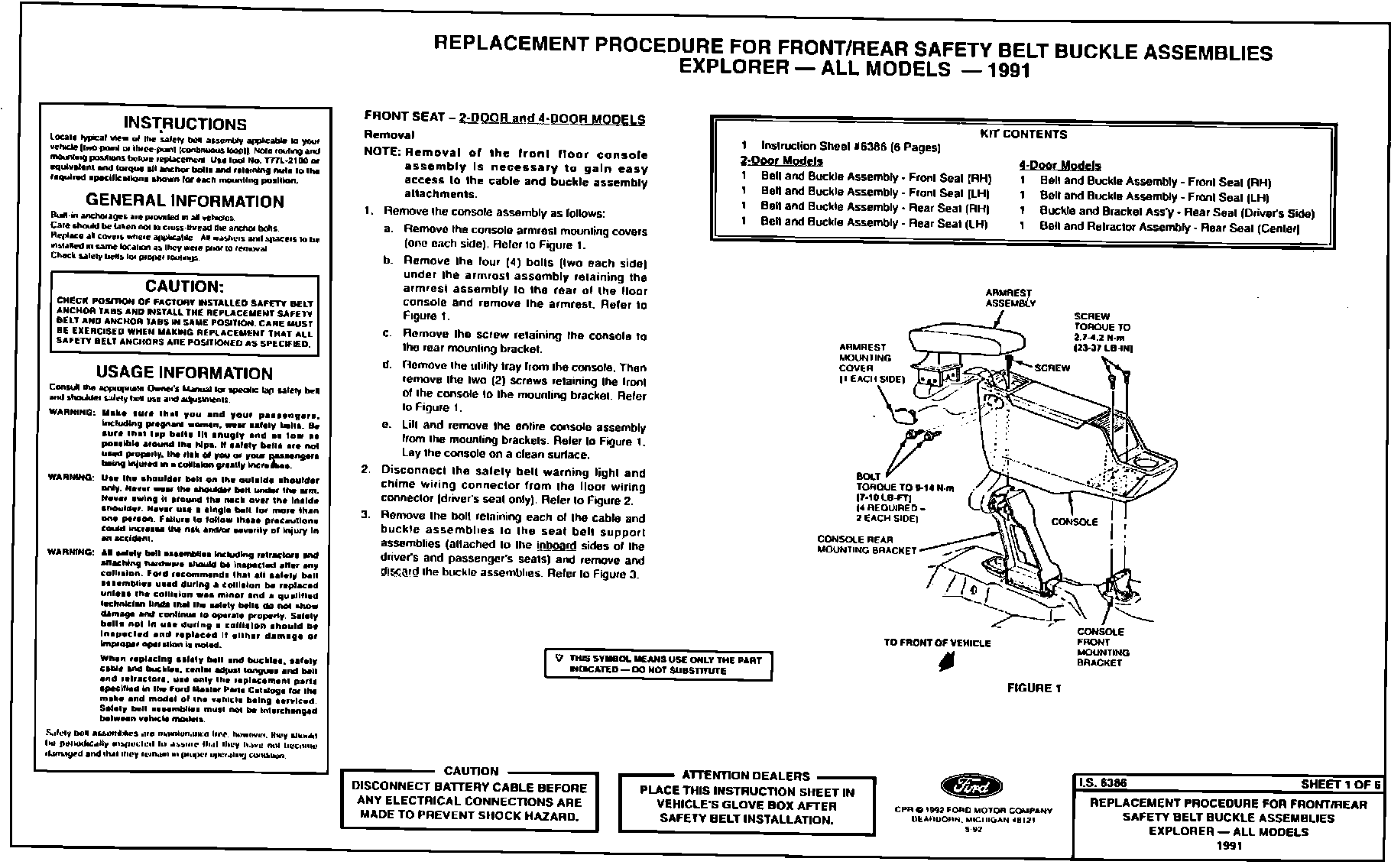

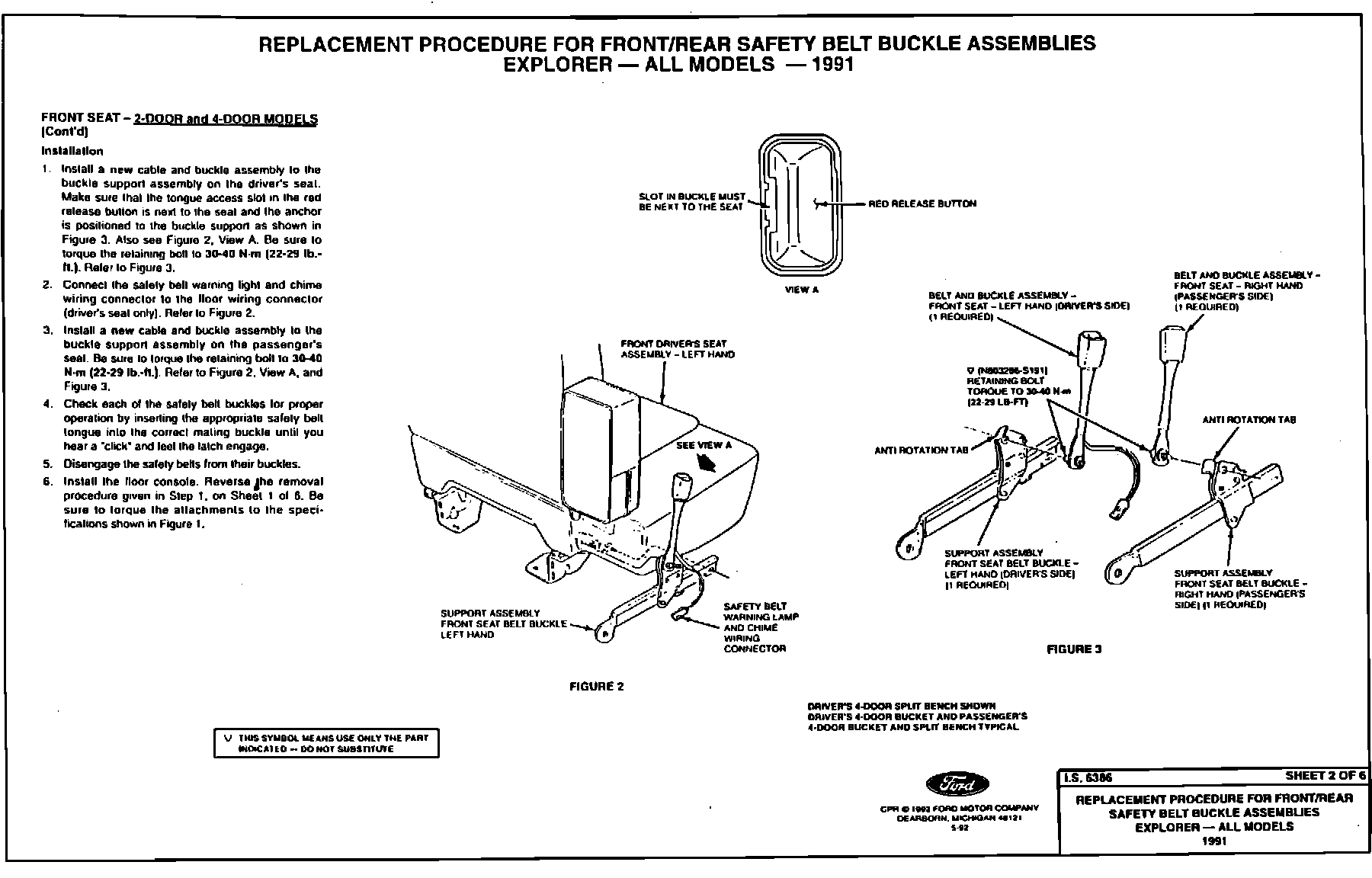

FRONT SEAT

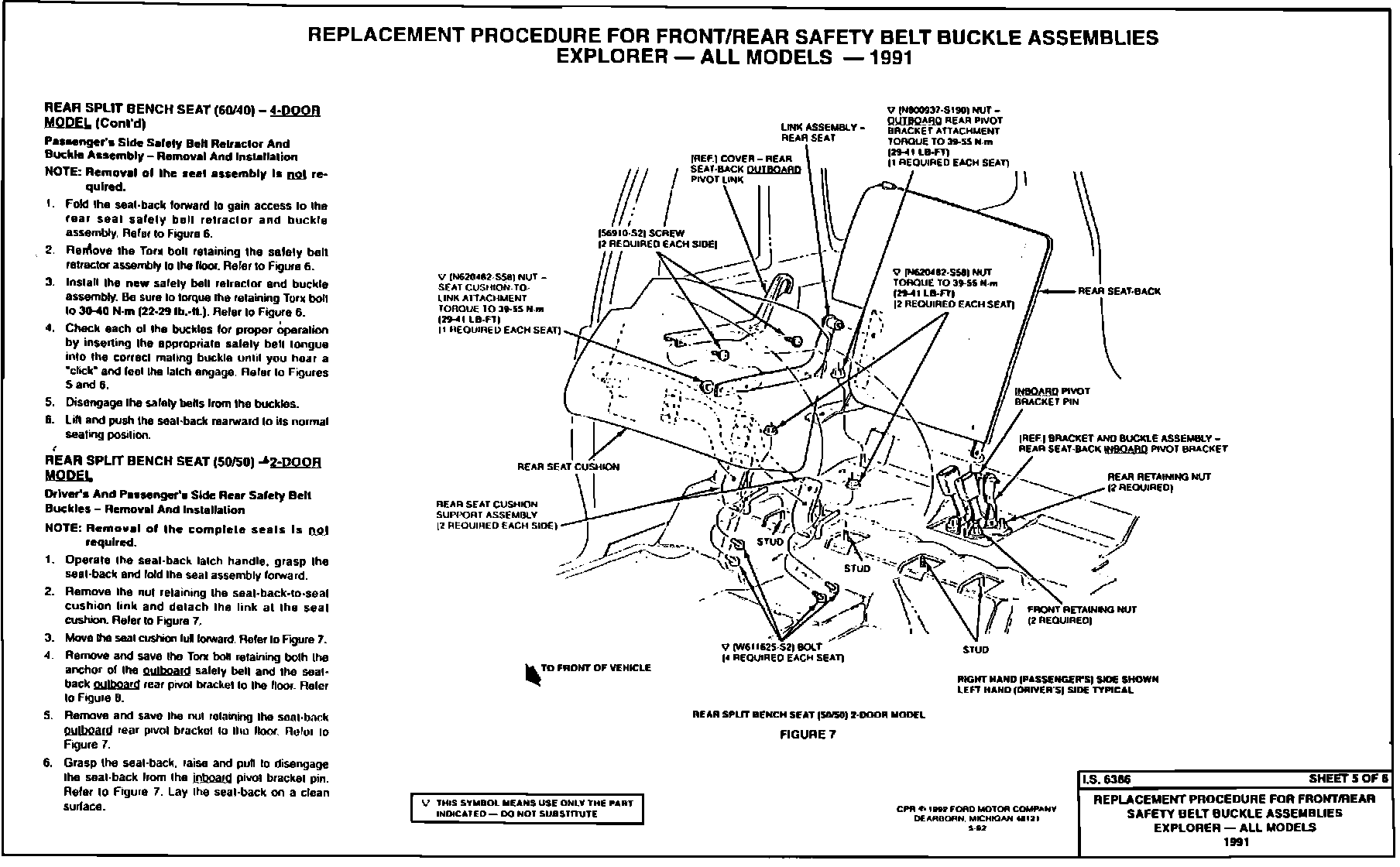

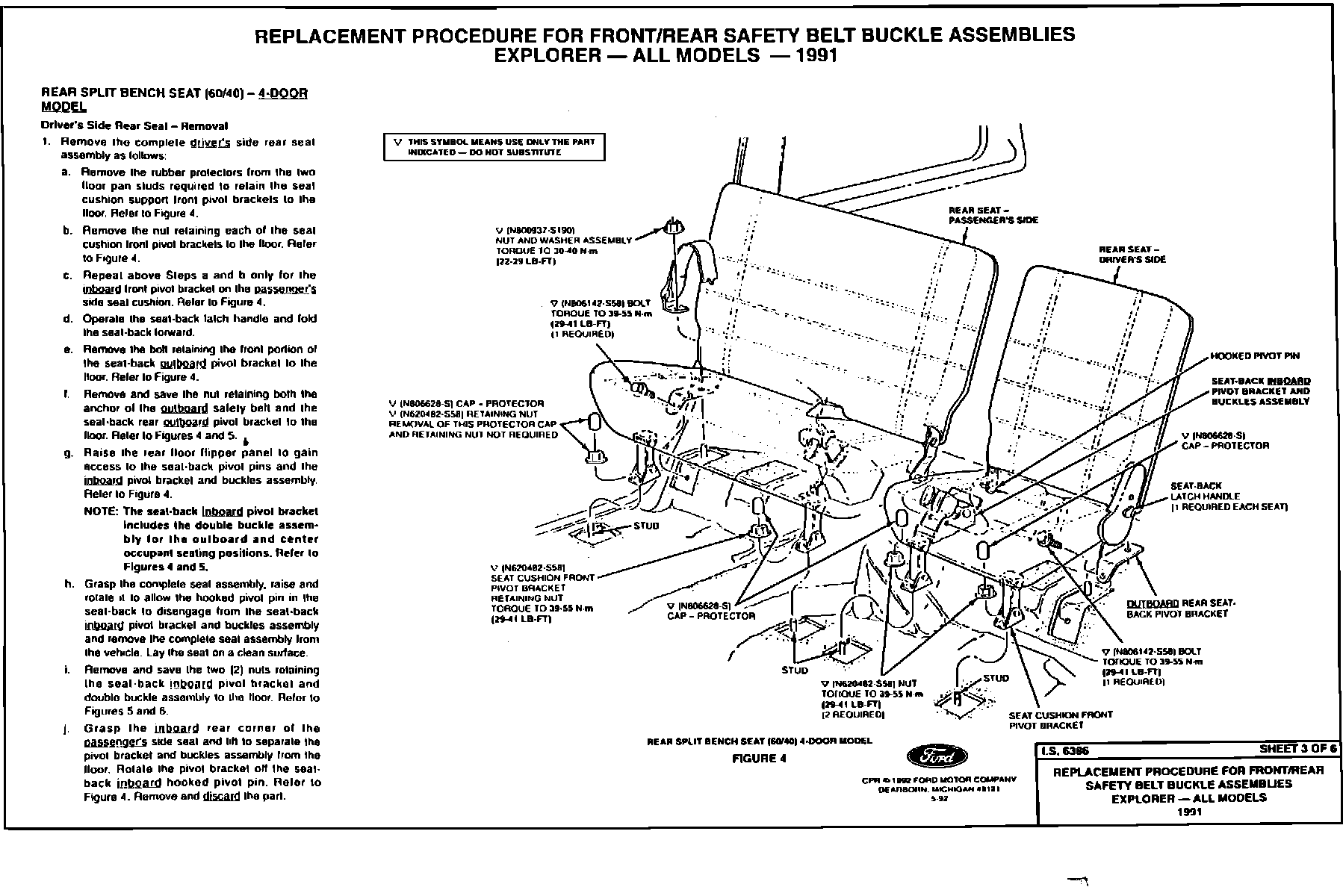

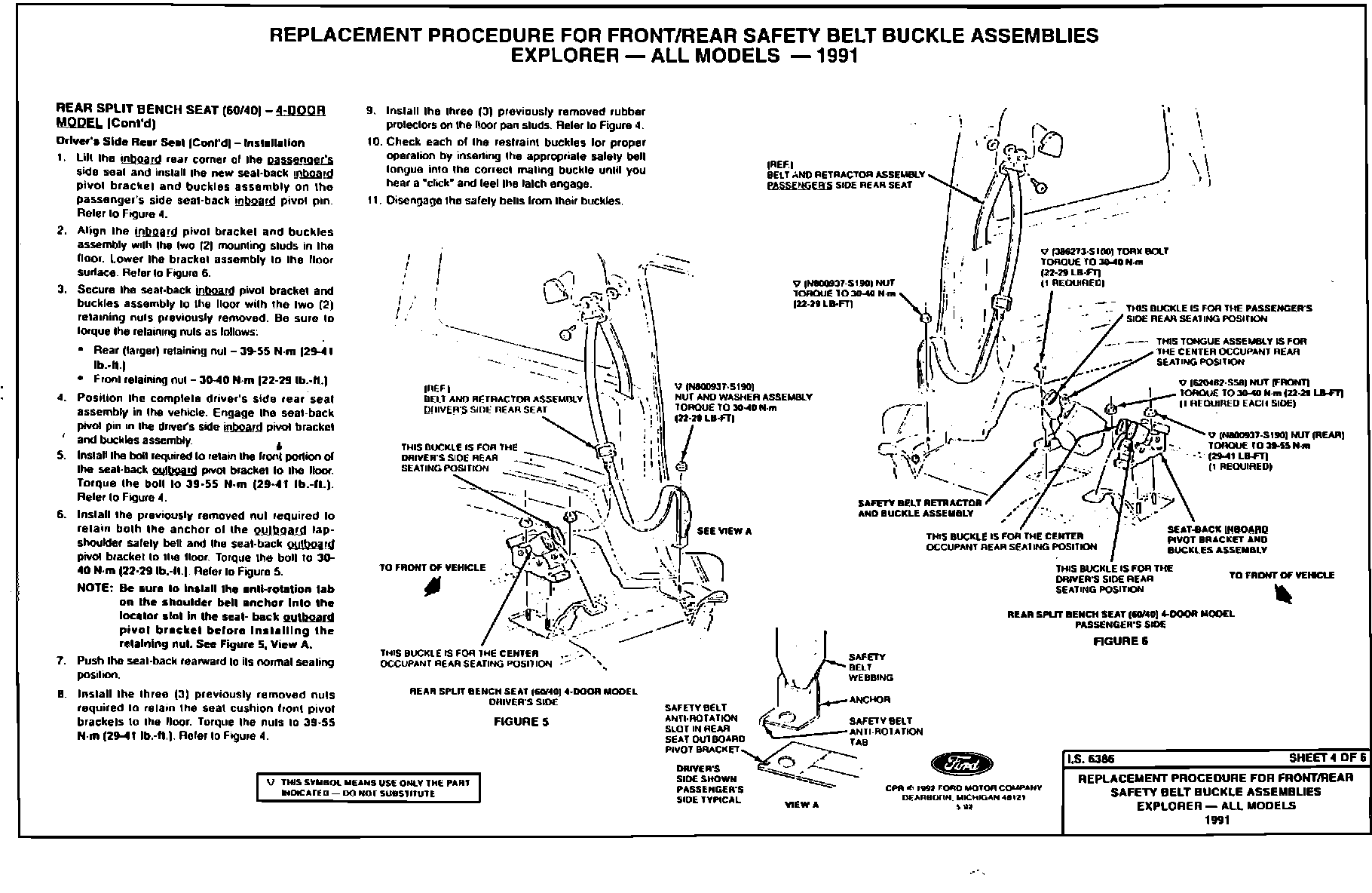

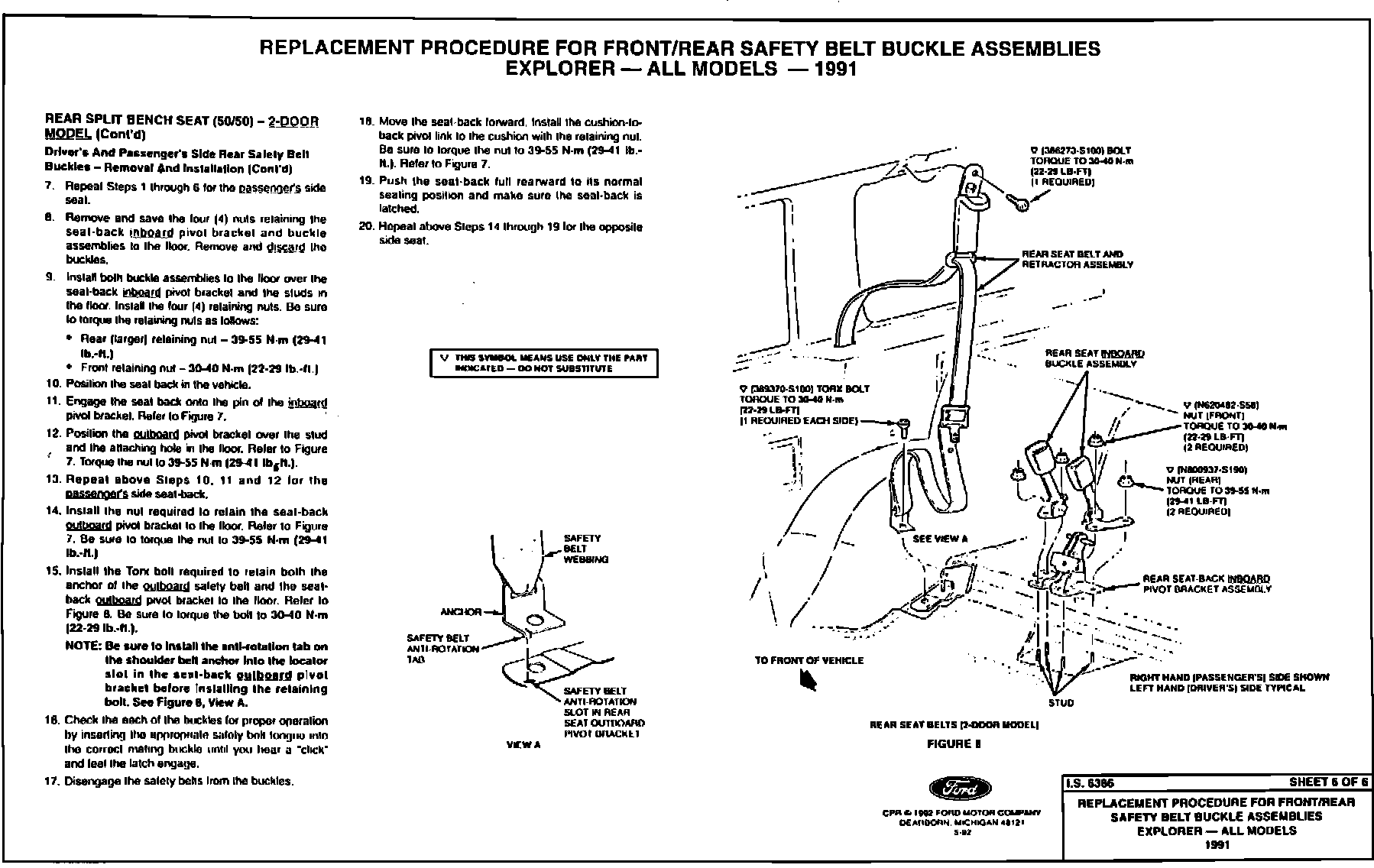

REAR SPLIT BENCH SEAT
