X - Integrated Relay Control Module
>>

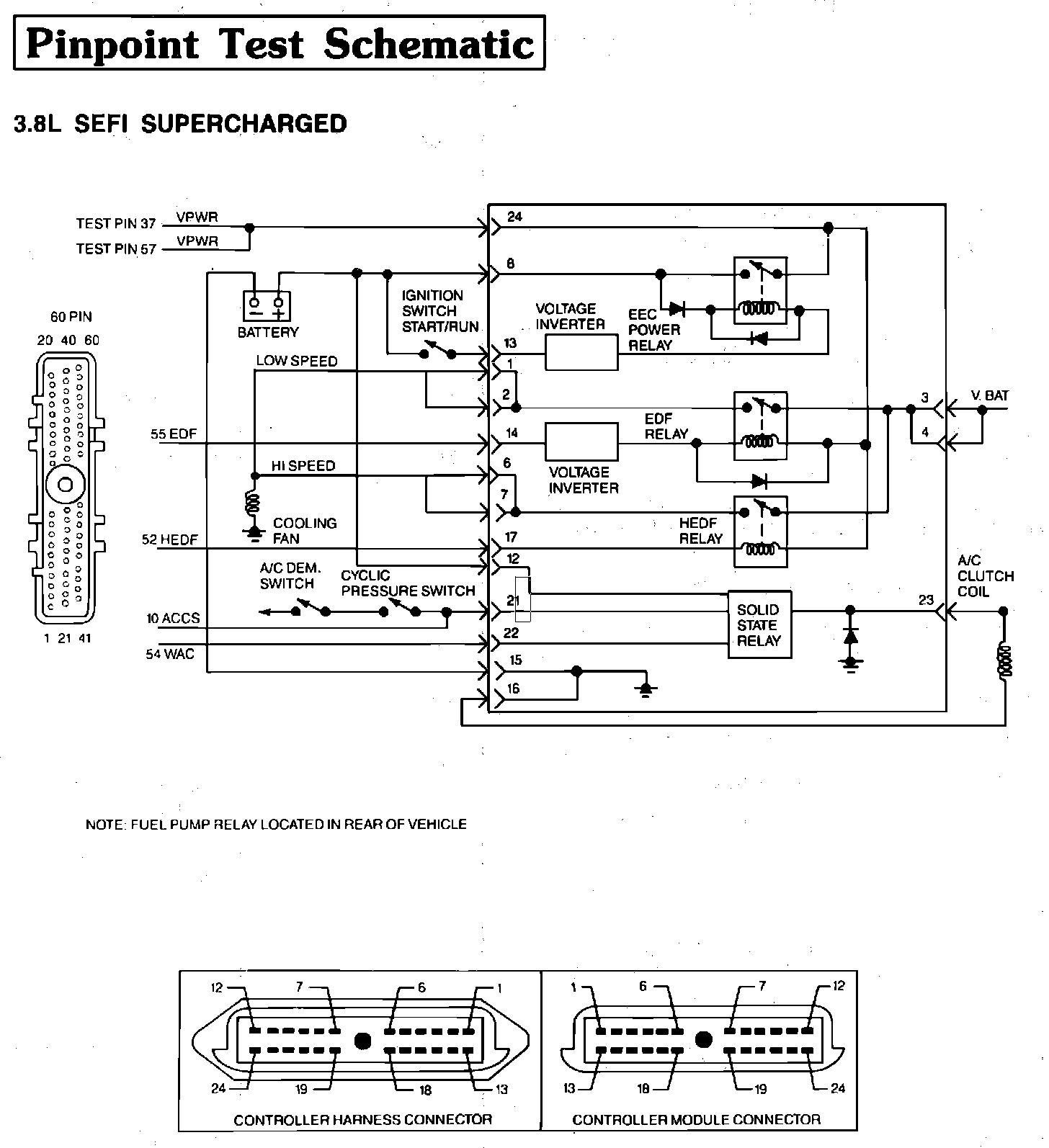

X - Wiring Diagram W/Supercharger
X - Wiring Diagram W/Supercharger
Pinpoint Test X - Integrated Controller:
