Mercury
>>
1989
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G200 & G201
>>
Analog Cluster
Analog Cluster

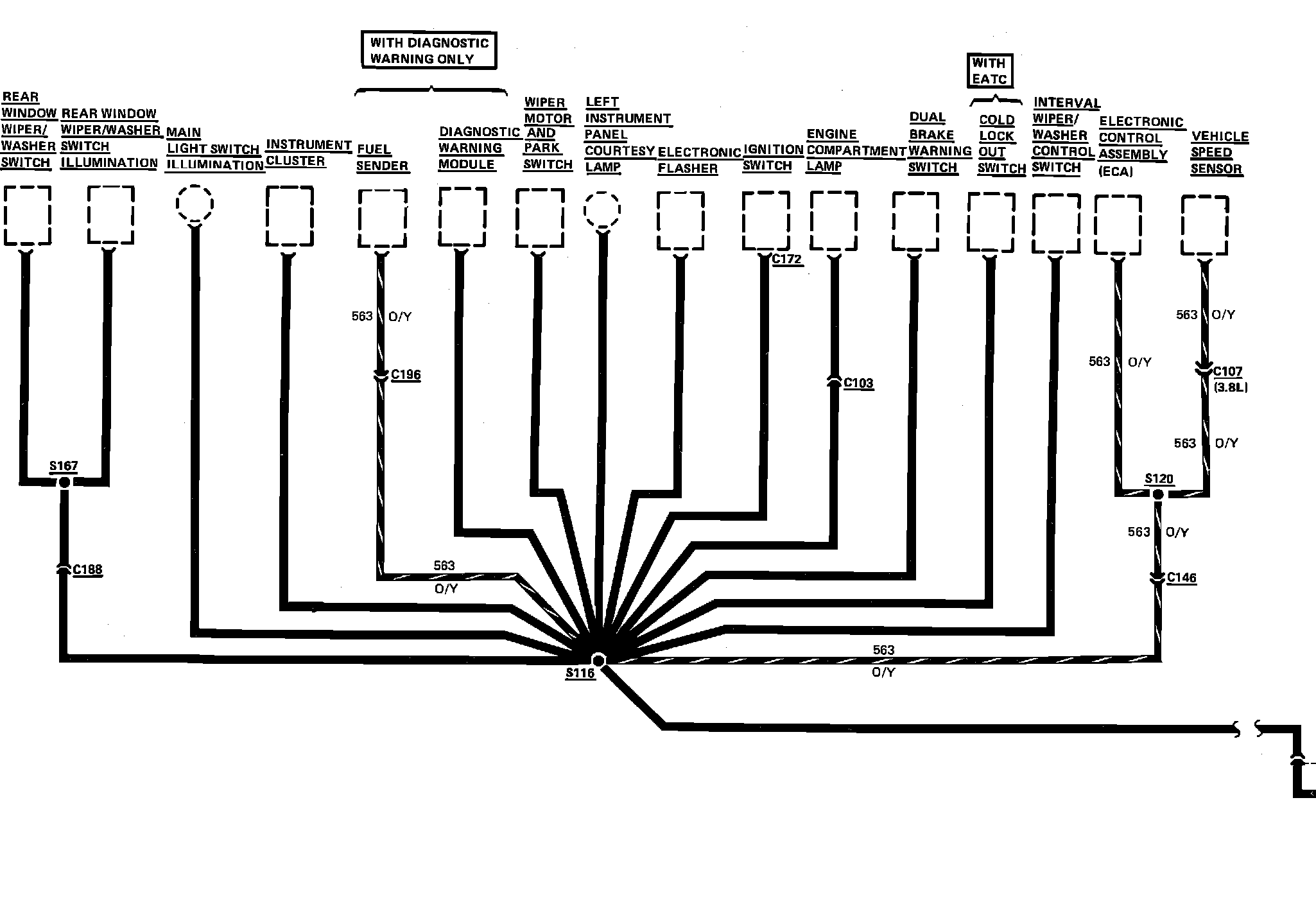

g�BFGround Distribution (G200 & G201 With Analog Cluster):
