Home
>>
Mercury
>>
1989
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
With Diagnostic Warning
>>
Wagon
Wagon

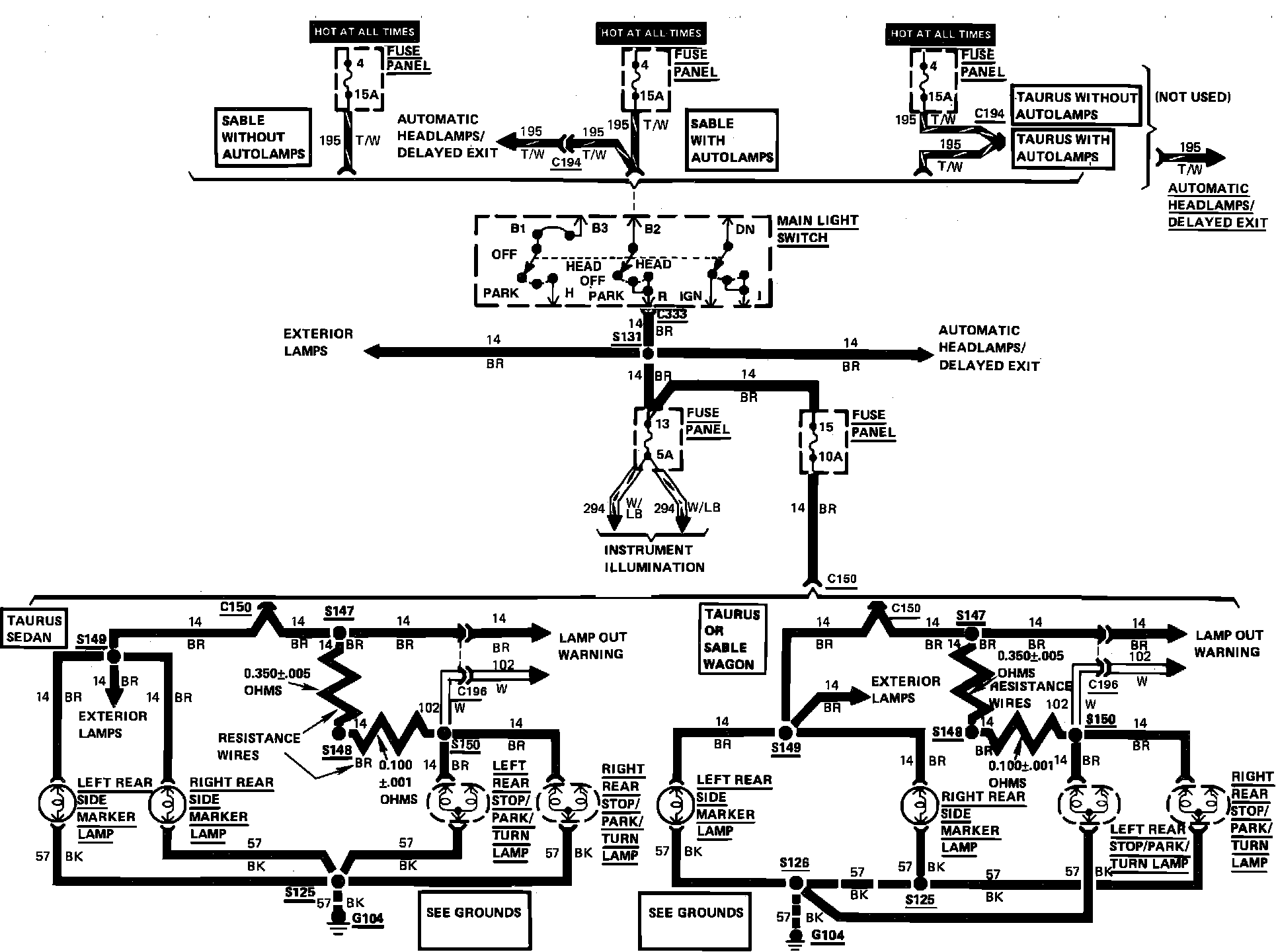

Exterior Lamps Wiring Circuit (Wagon With Diagnostic Warning):
