Mercury
>>
1989
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
Fuse

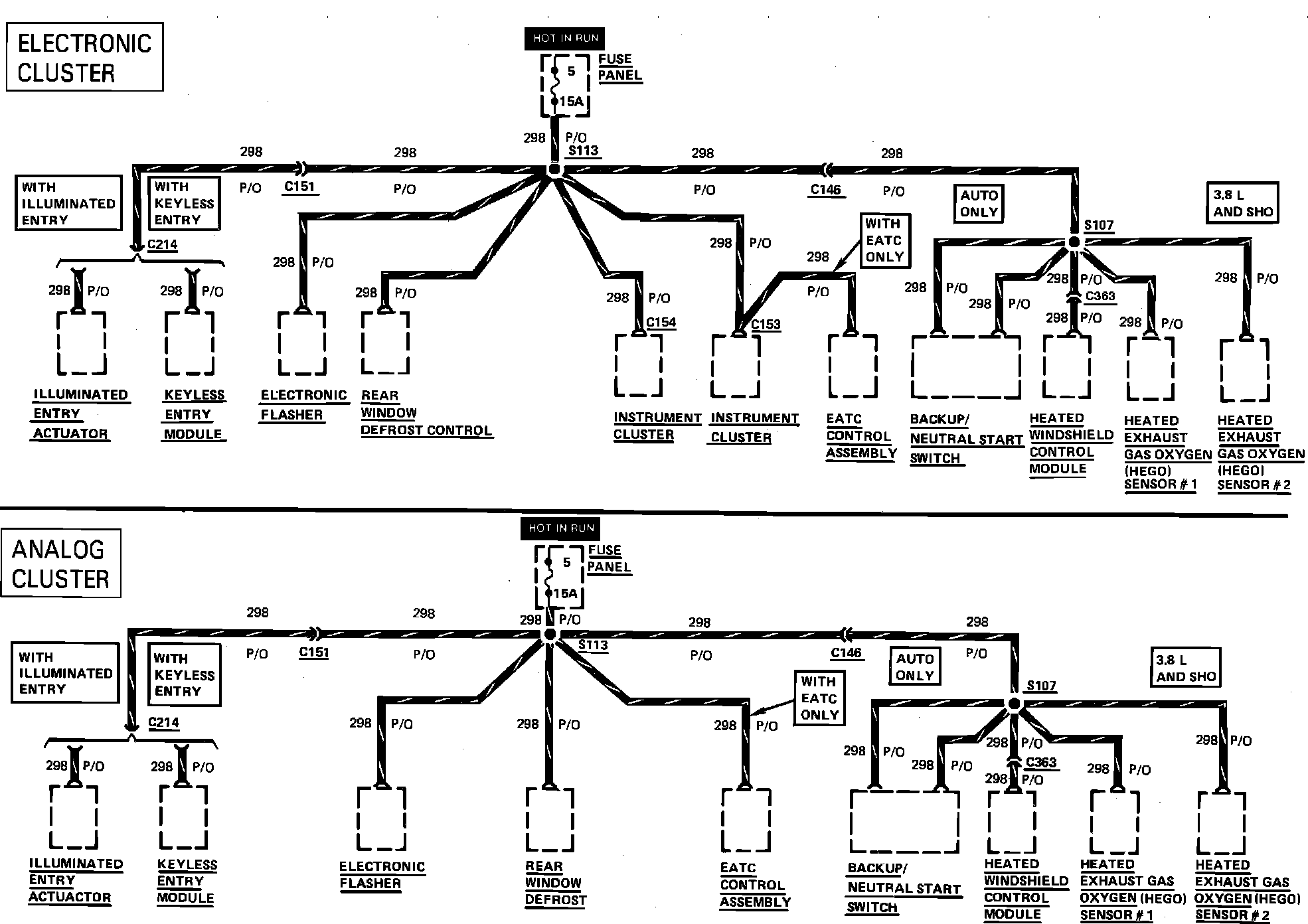

Charge & Power Distribution Wiring Circuit (Fuse 5):
