Home
>>
Mercury
>>
1989
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Heated Windshield
Heated Windshield

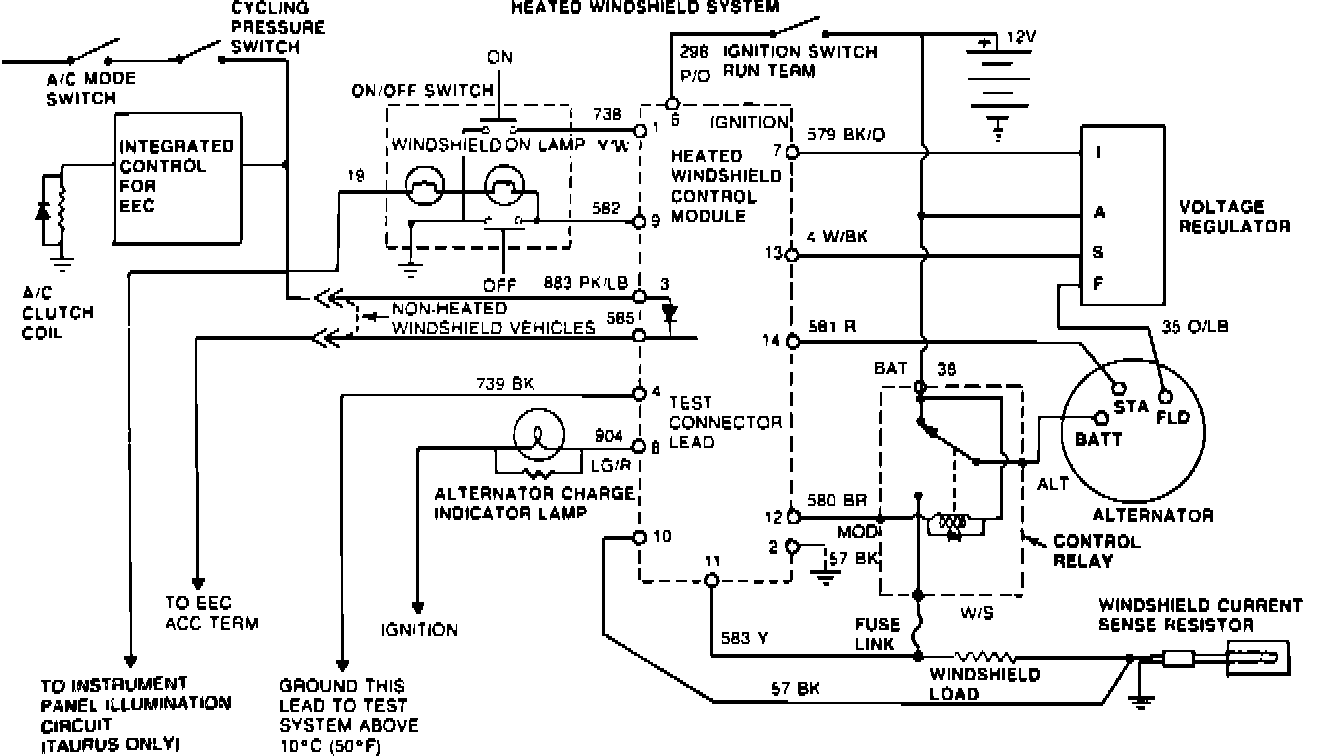

Heated Windshield System Wiring Diagram:
Heated Windshield Wiring Circuit:
Heated Windshield Wiring Circuit:
