Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

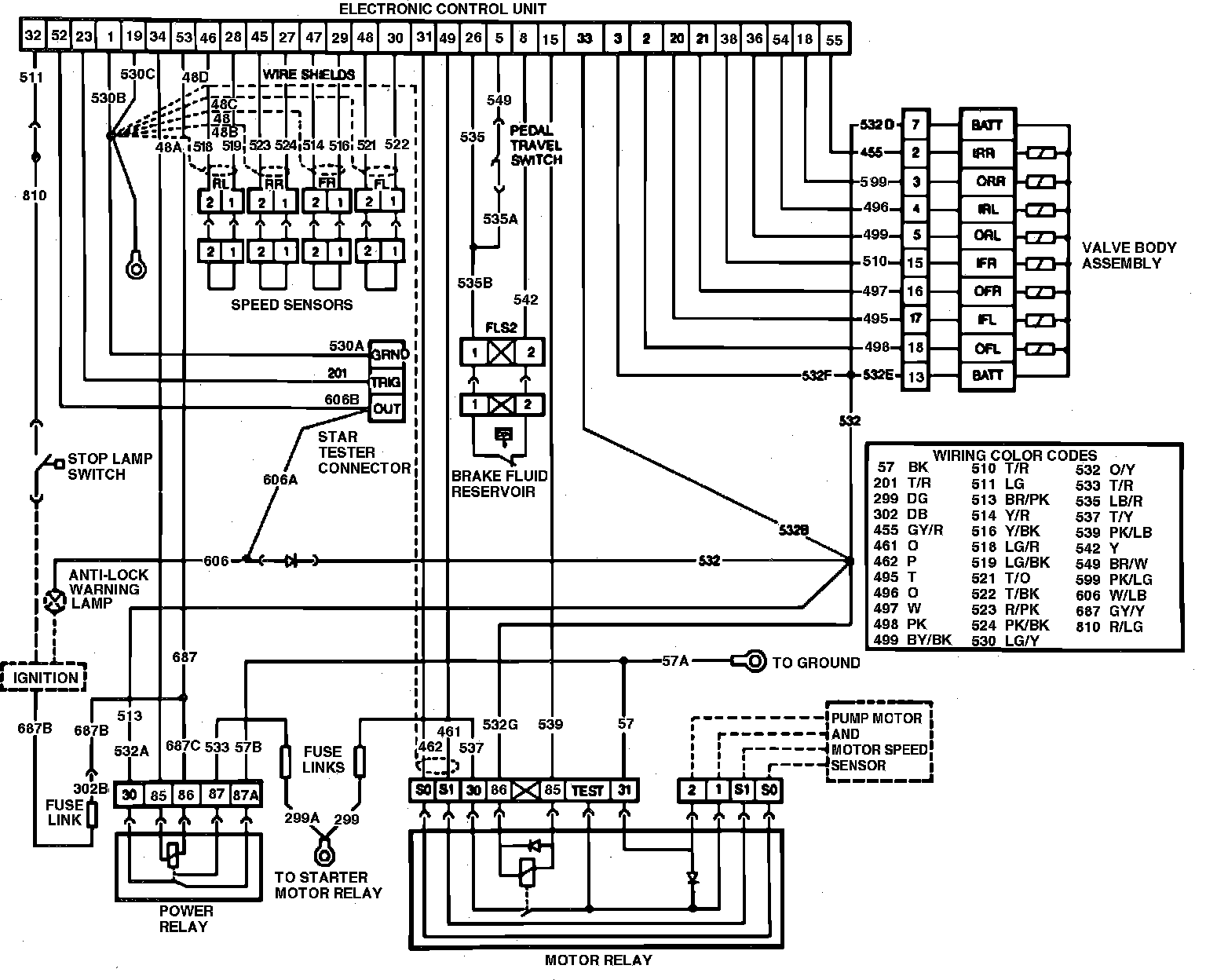

Fig. 6 ABS Wiring Circuit:
