Amplifier, Sound System
Amplifier, Sound System

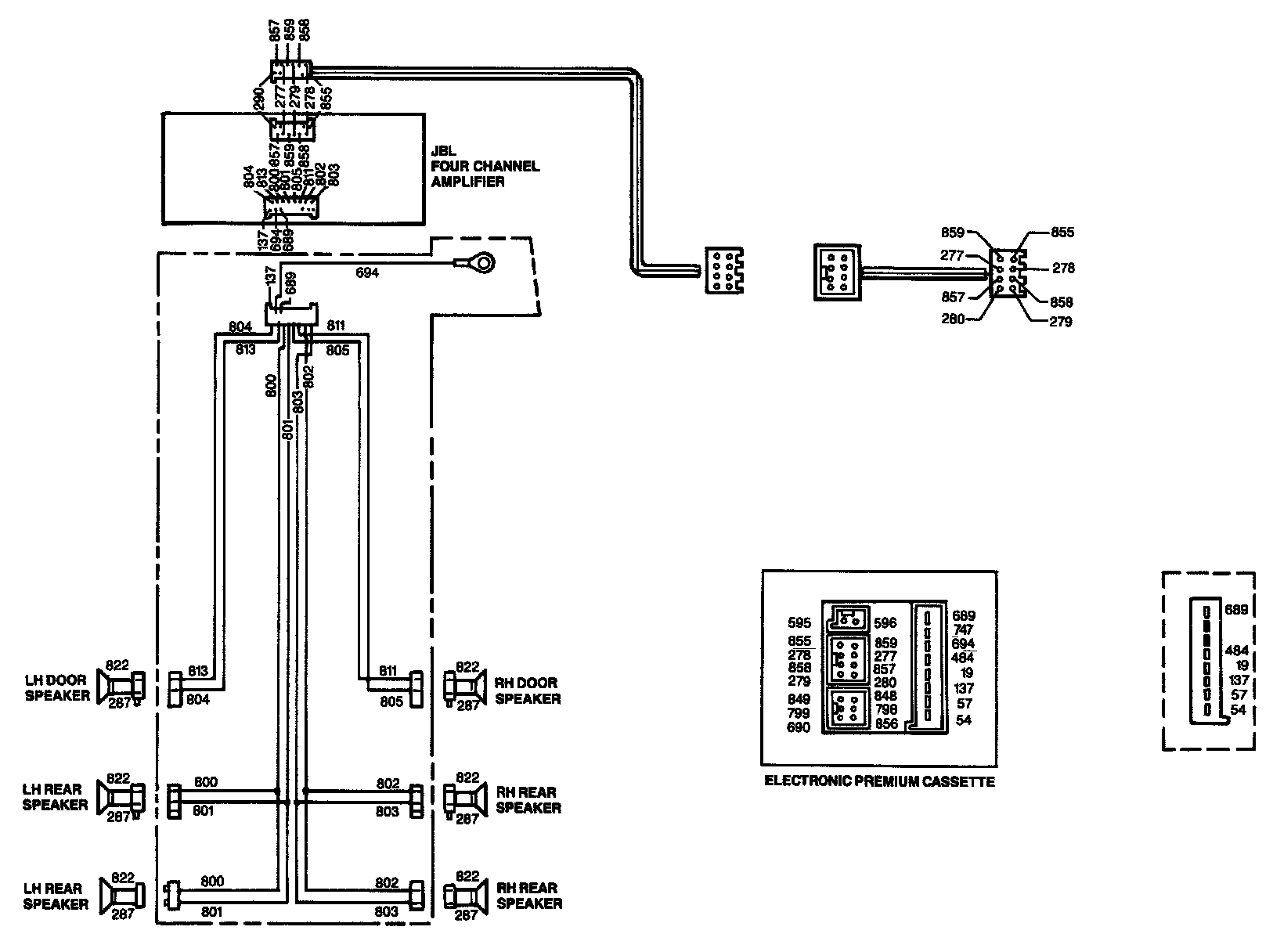

Wiring Diagram - Elect. Premium Cassette W/JBL Amplifier:
Circuit Description Chart:
