HA - Fuel Control (EFI)
>>
HA - Wiring Diagram
HA - Wiring Diagram

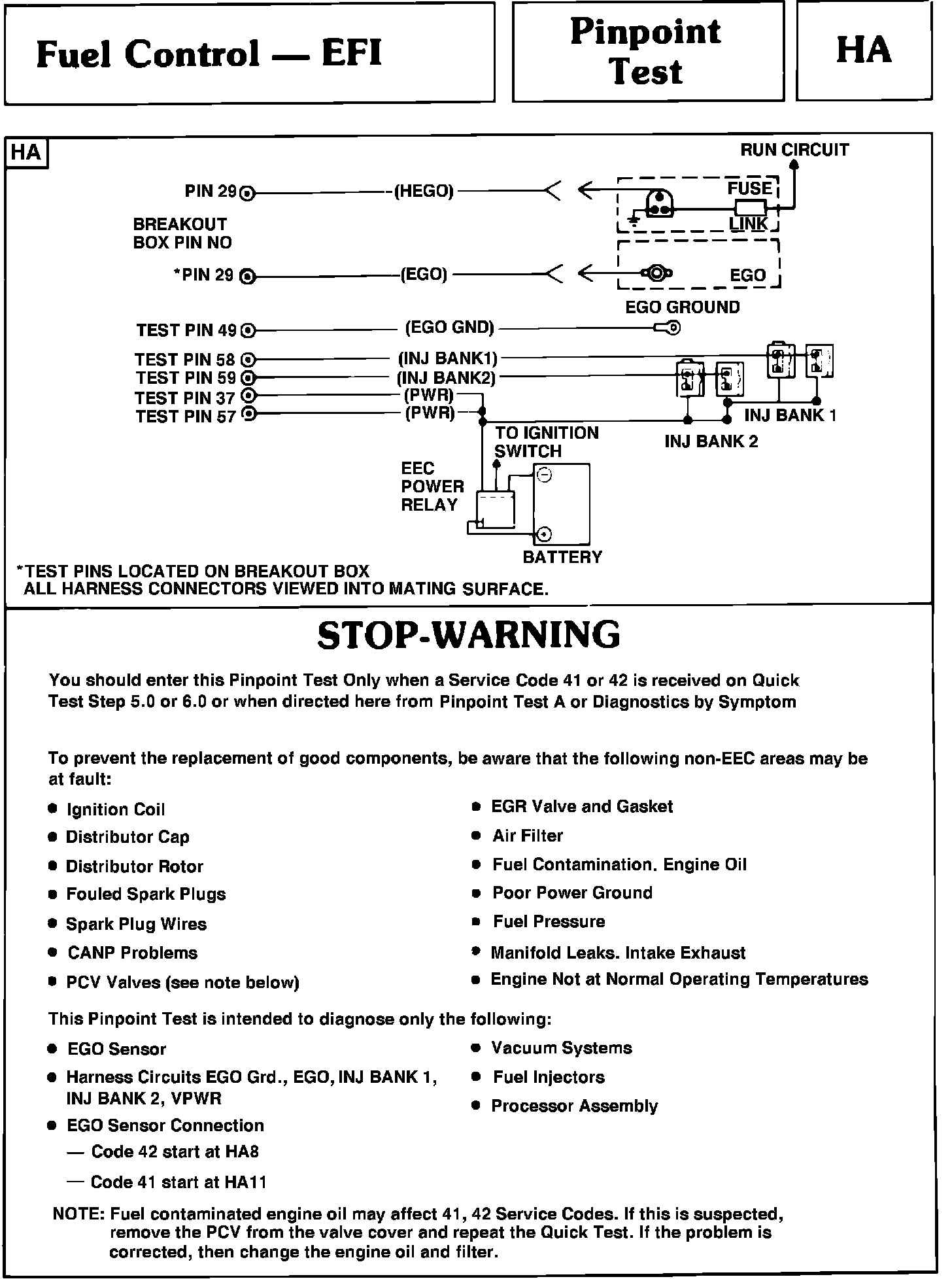

Pinpoint Test HA. EFI Fuel Control:
