Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Specifications
>>
Cylinder Head Assembly
Cylinder Head Assembly

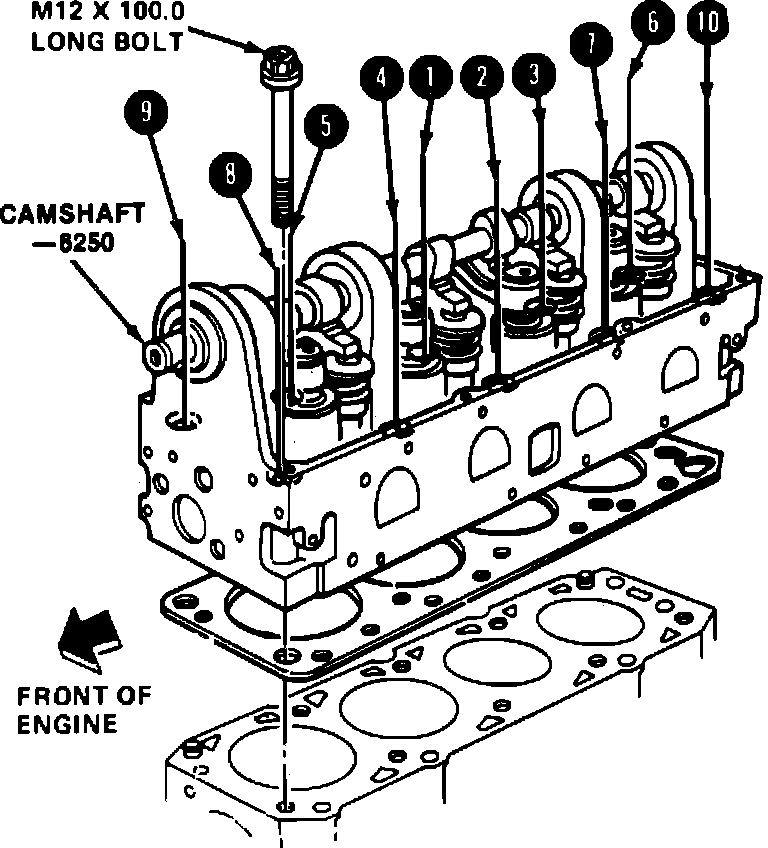

Fig. 12 Cylinder Head Bolt Tightening Sequence:
