Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

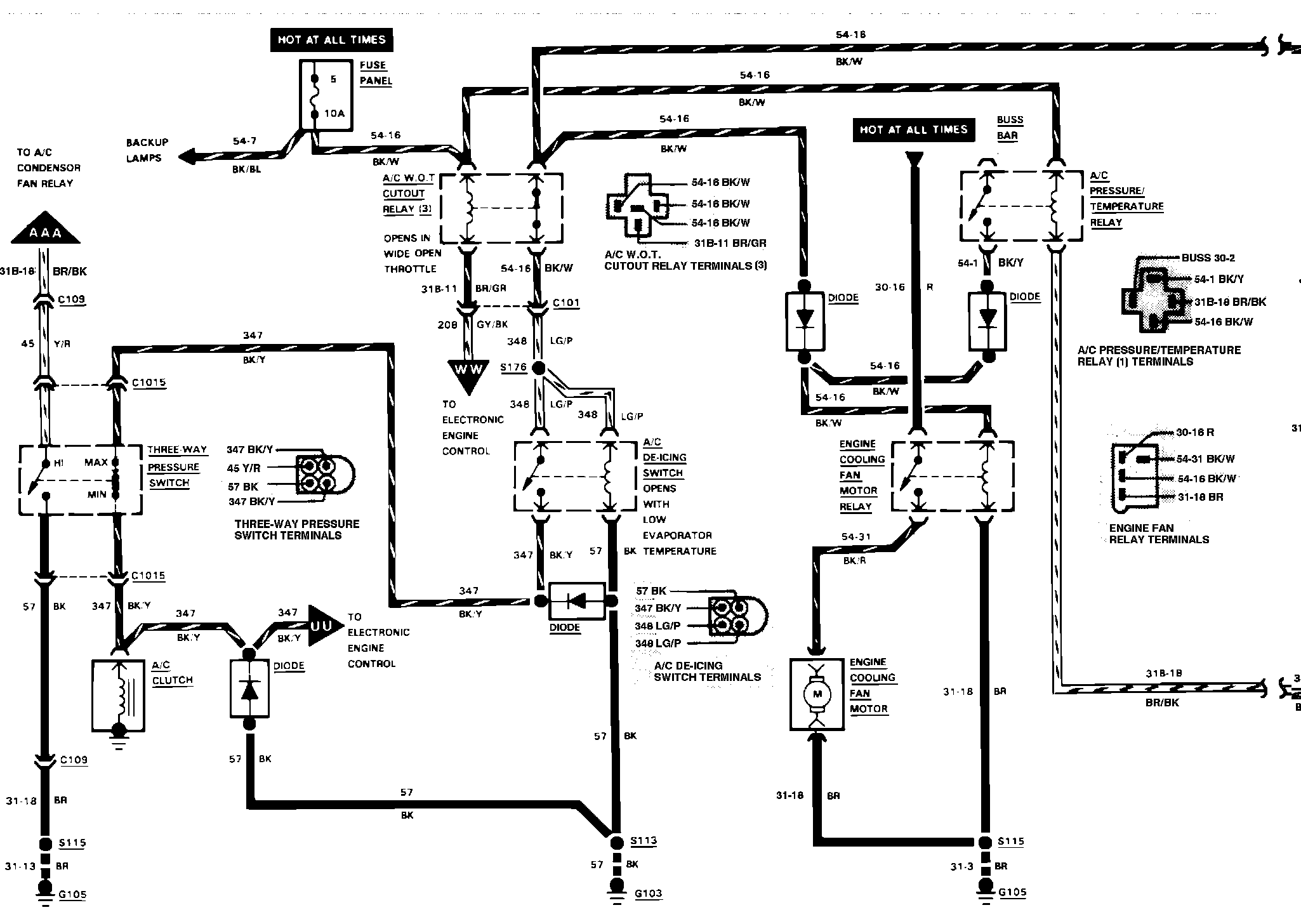

�)Air Conditioning, Cooling Fan & Heater Wiring Circuit:
