Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
7: Vacuum Valve Electrical Test
7: Vacuum Valve Electrical Test

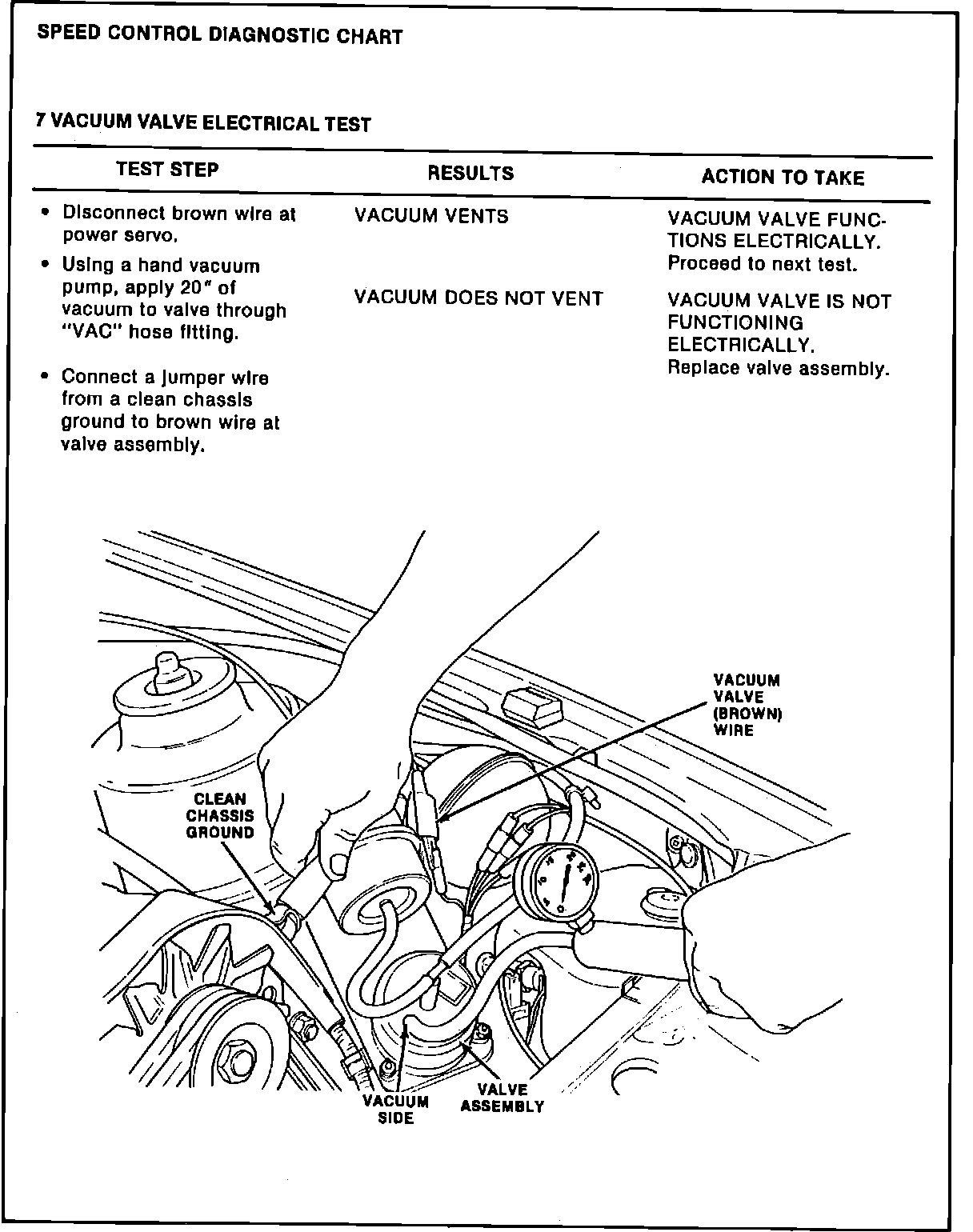

Fig. 51 Diagnosis and Testing (Part 6 Of 24):
