Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
19: Power Feed to Set Switch
19: Power Feed to Set Switch

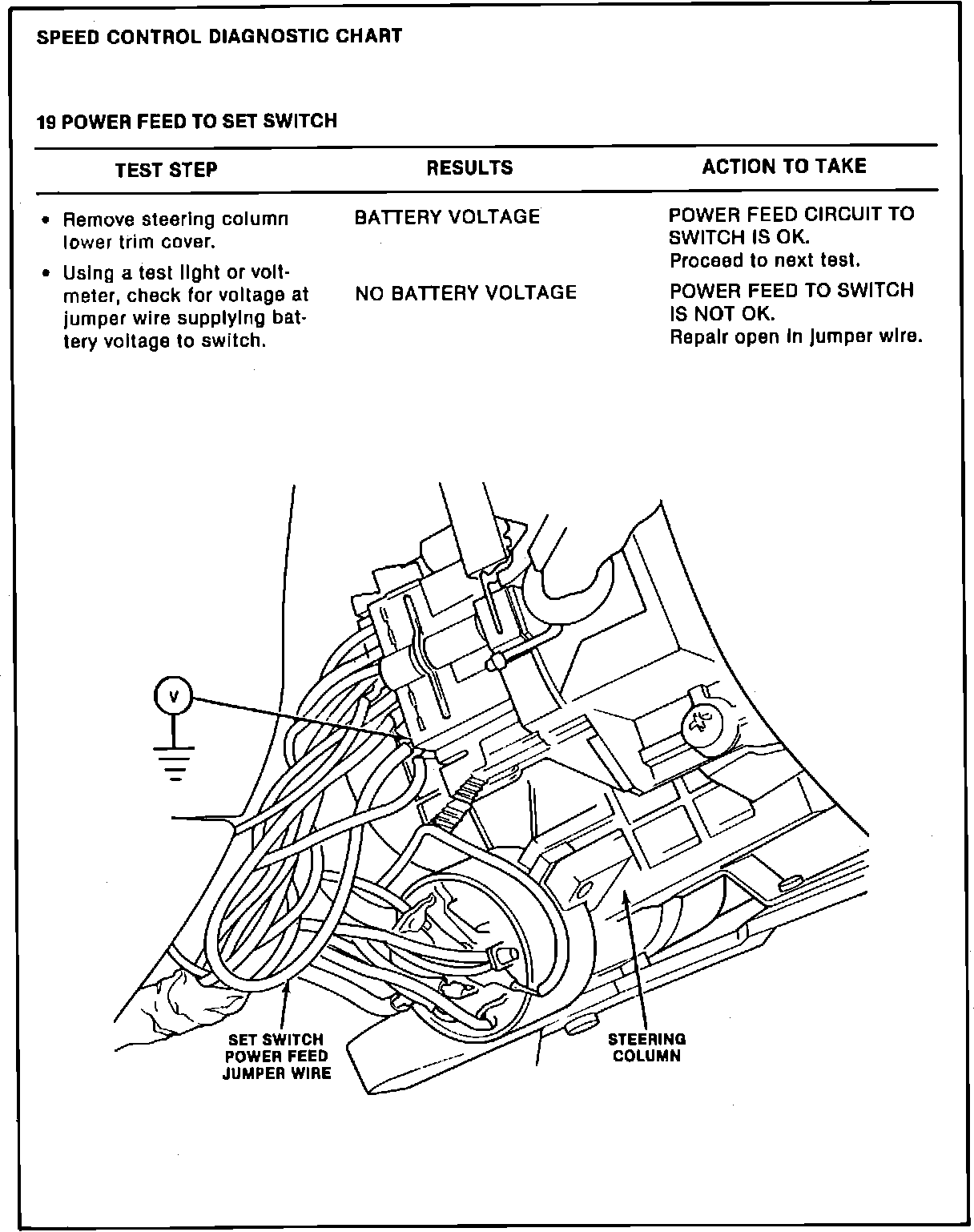

Fig. 51 Diagnosis and Testing (Part 15 Of 24):
