Cruise Control Vacuum Solenoid: Service and Repair

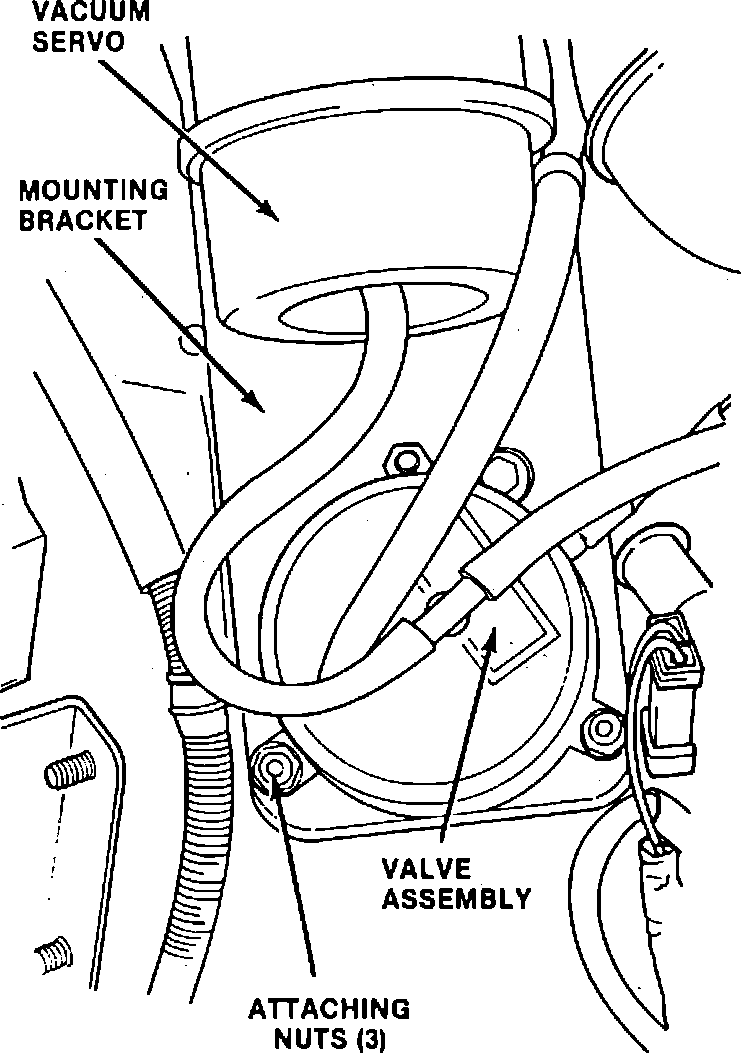

Fig. 64 Vacuum Valve Removal:

1. Disconnect vacuum valve hose from valve, Fig. 64.
2. Separate wiring connectors then remove valve attaching nuts and valve assembly
3. Reverse procedure to install.
