Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Servo
>>
Testing and Inspection
>>
Tests 10-12 - Linkage/Servo,Throttle Cable/Throttle Lever Test
Tests 10-12 - Linkage/Servo,Throttle Cable/Throttle Lever Test

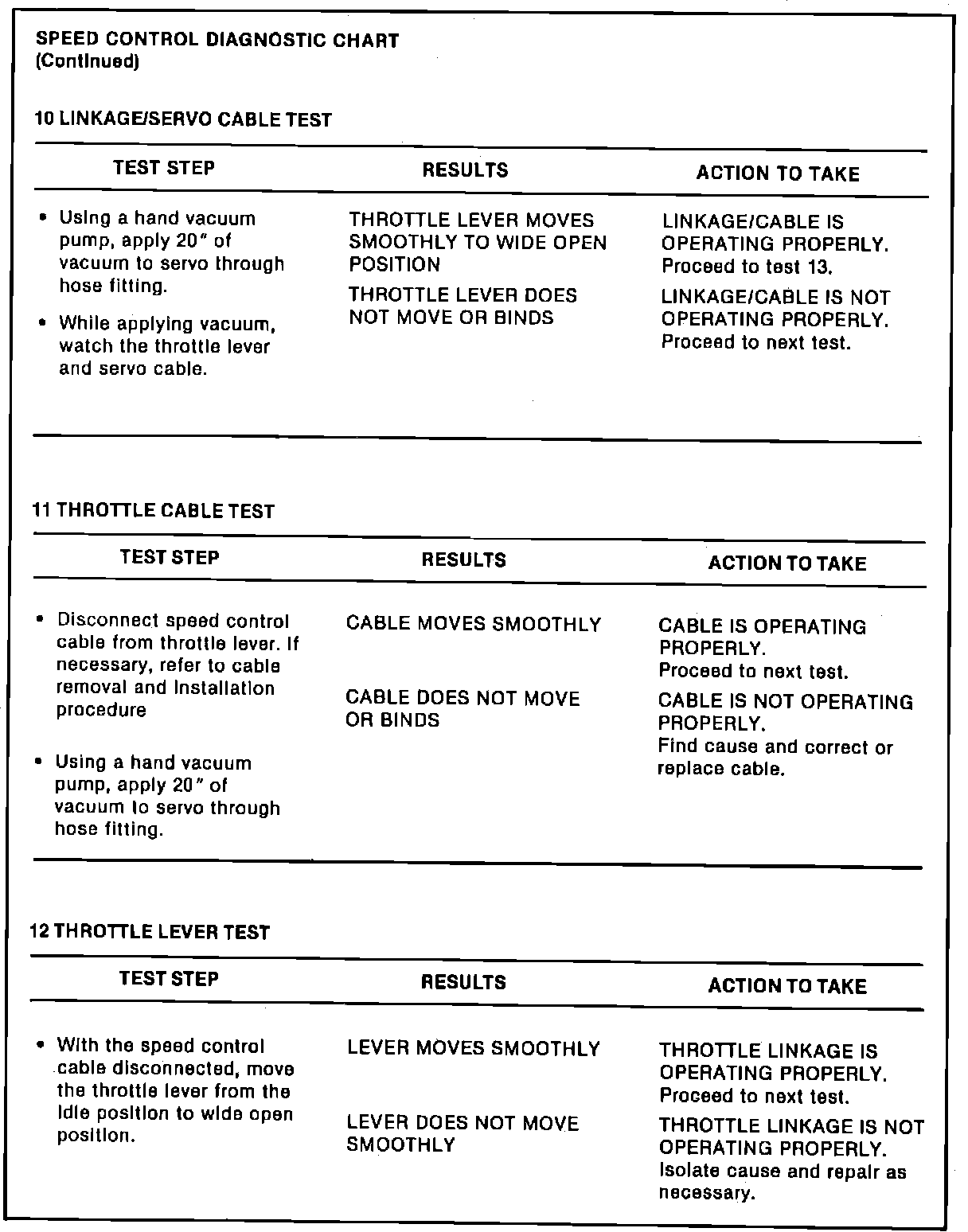

Fig. 51 Diagnosis and Testing (Part 9 Of 24):
