Mercury
>>
1989
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
Without Autolamps
Without Autolamps

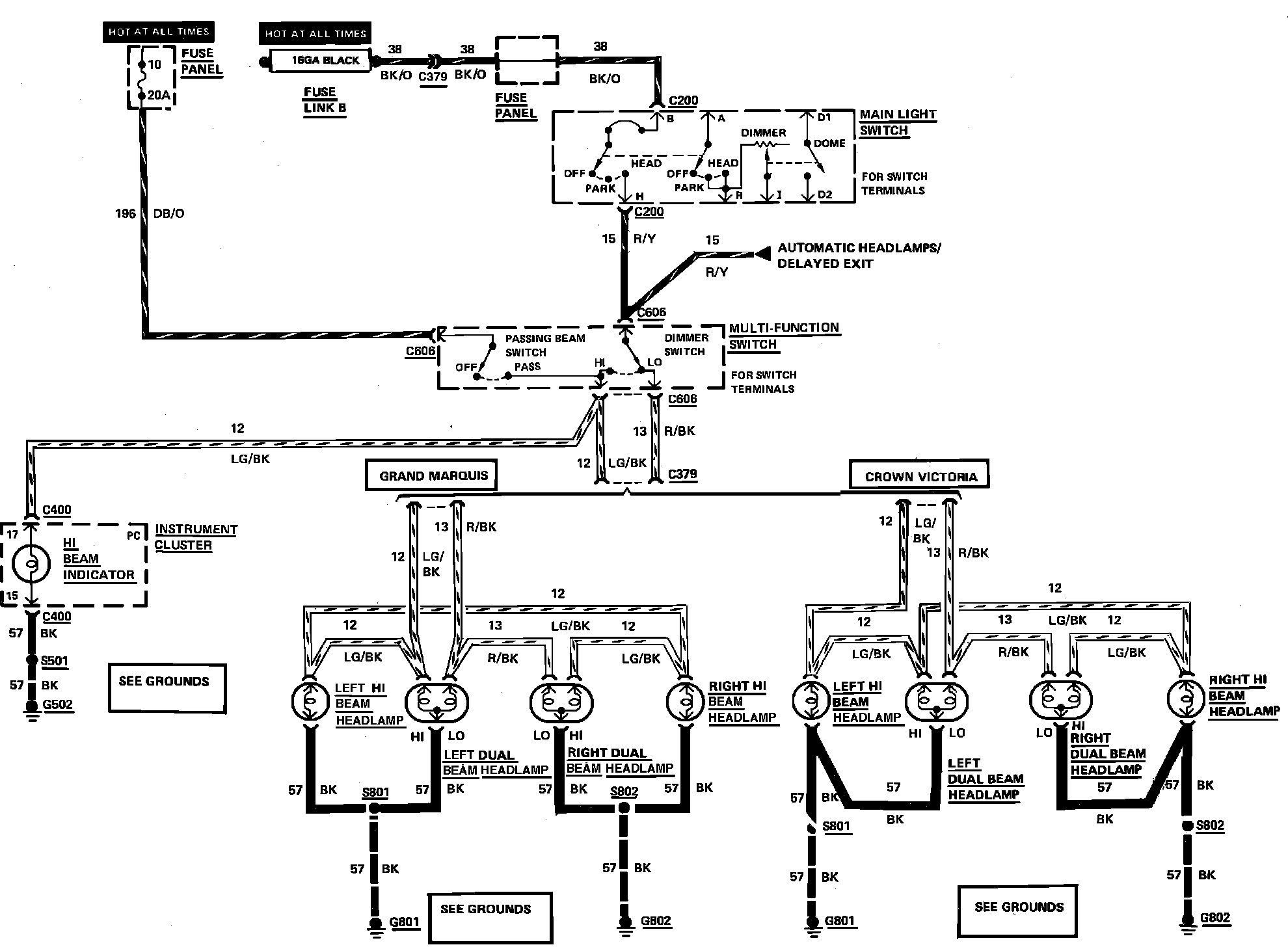

Headlamp Wiring Circuit:
