Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
Front Exterior
Front Exterior

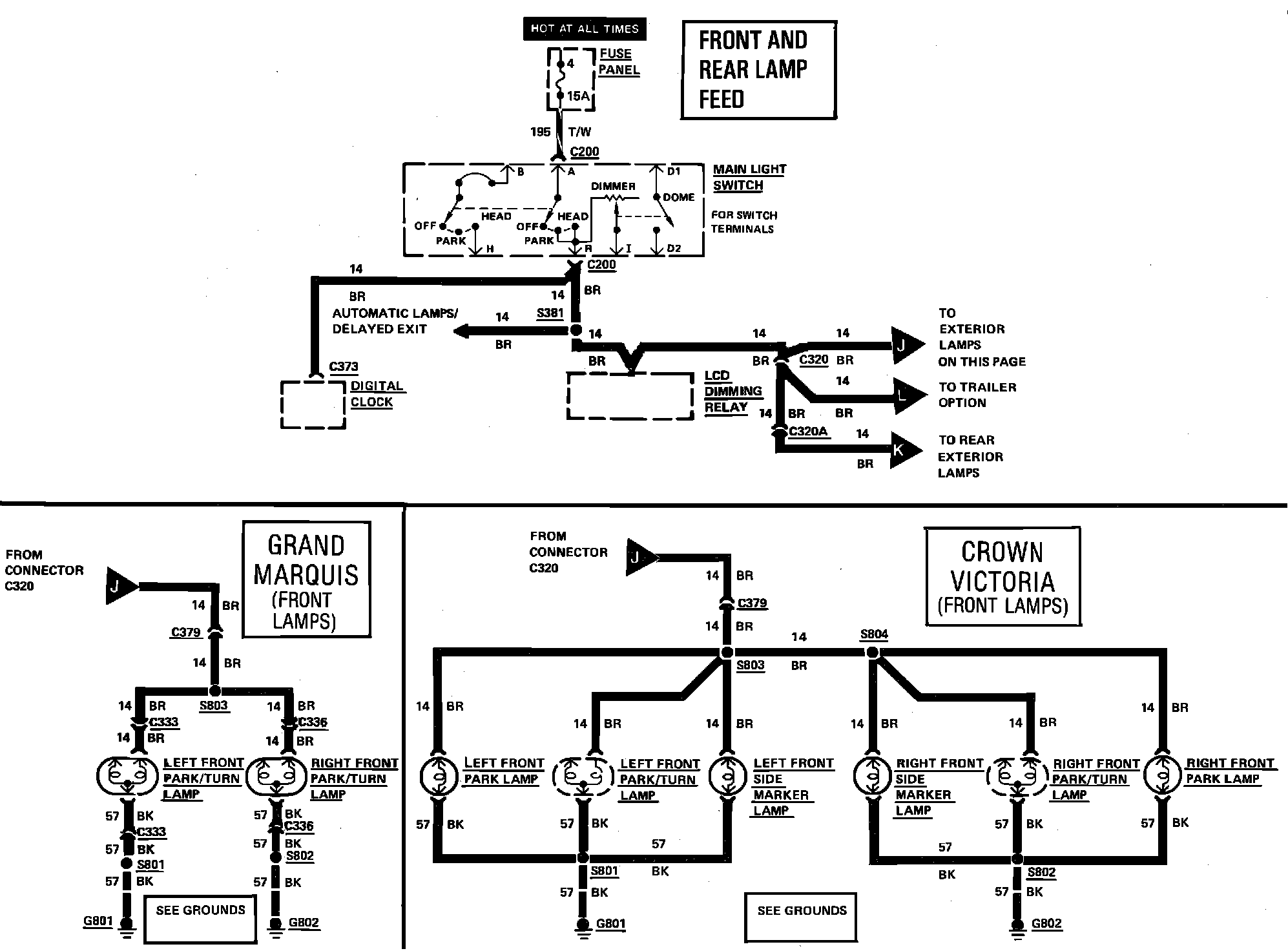

Exterior Lamps Wiring Circuit:
