Feedback Carburetor Control Wiring Circuit
Feedback Carburetor Control Wiring Circuit

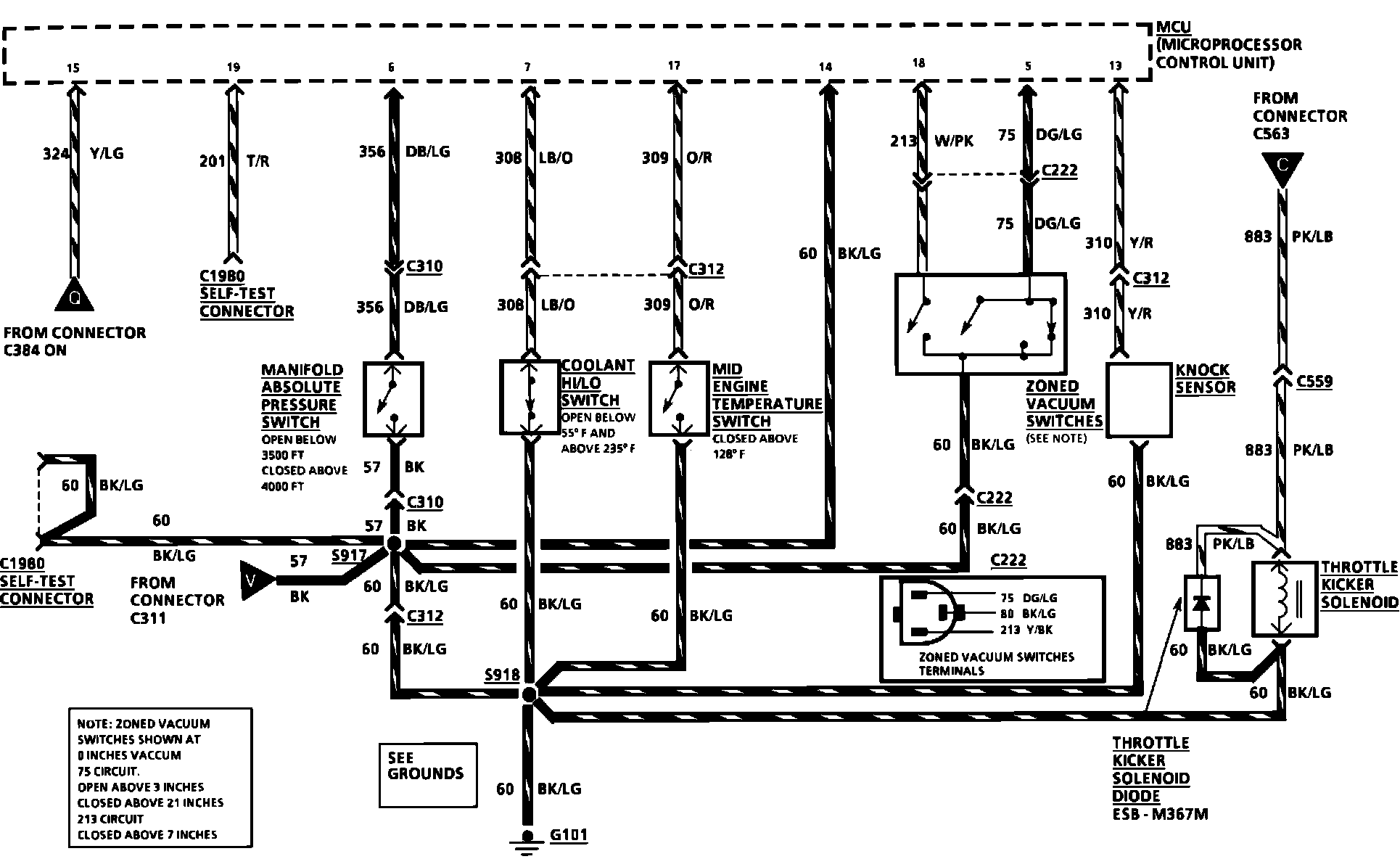

Feedback Carburetor Control (5.8L):
Feedback Carburetor Control (5.8L):

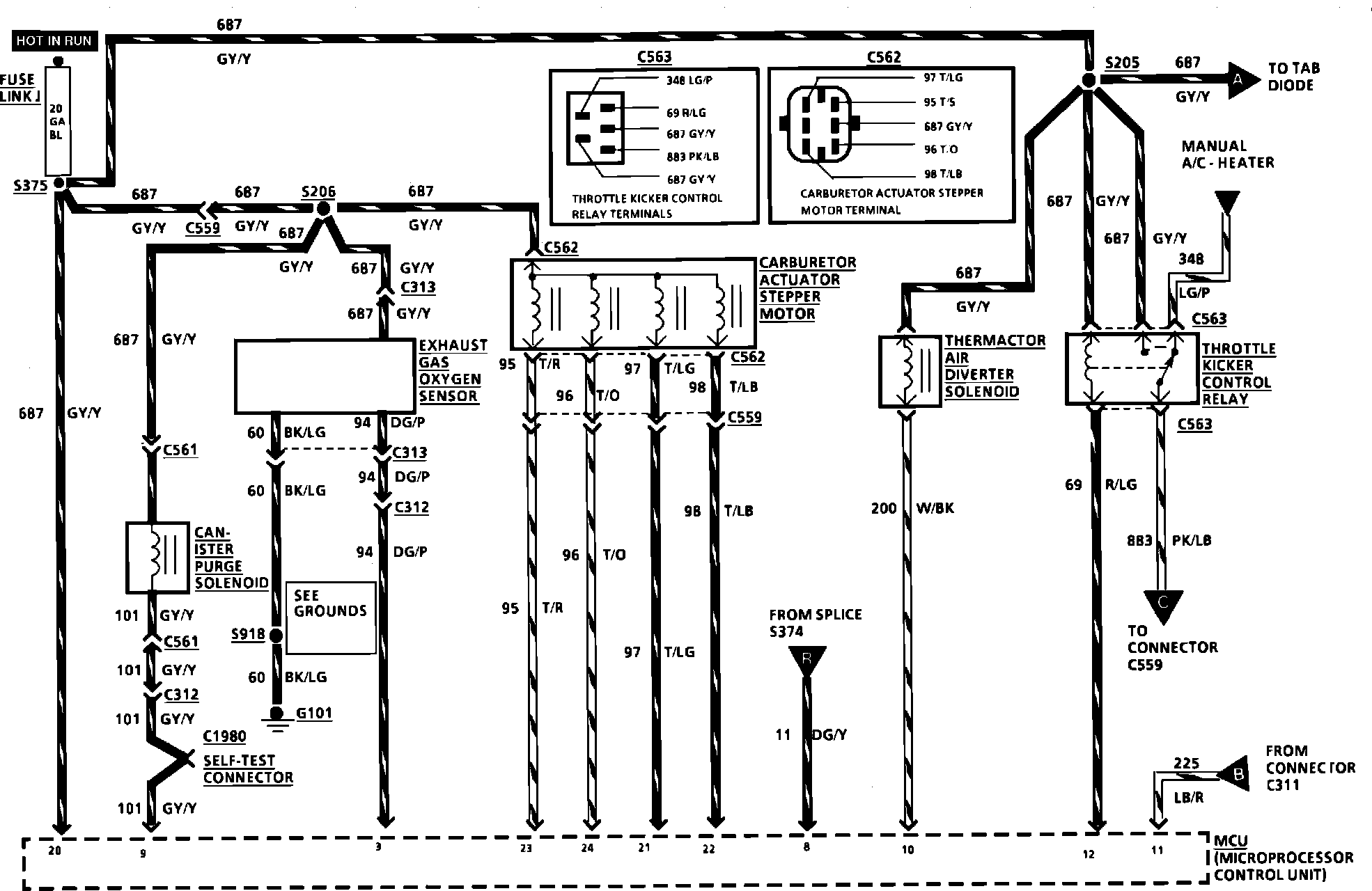

Feedback Carburetor Control (5.8L):
