Engine Controls

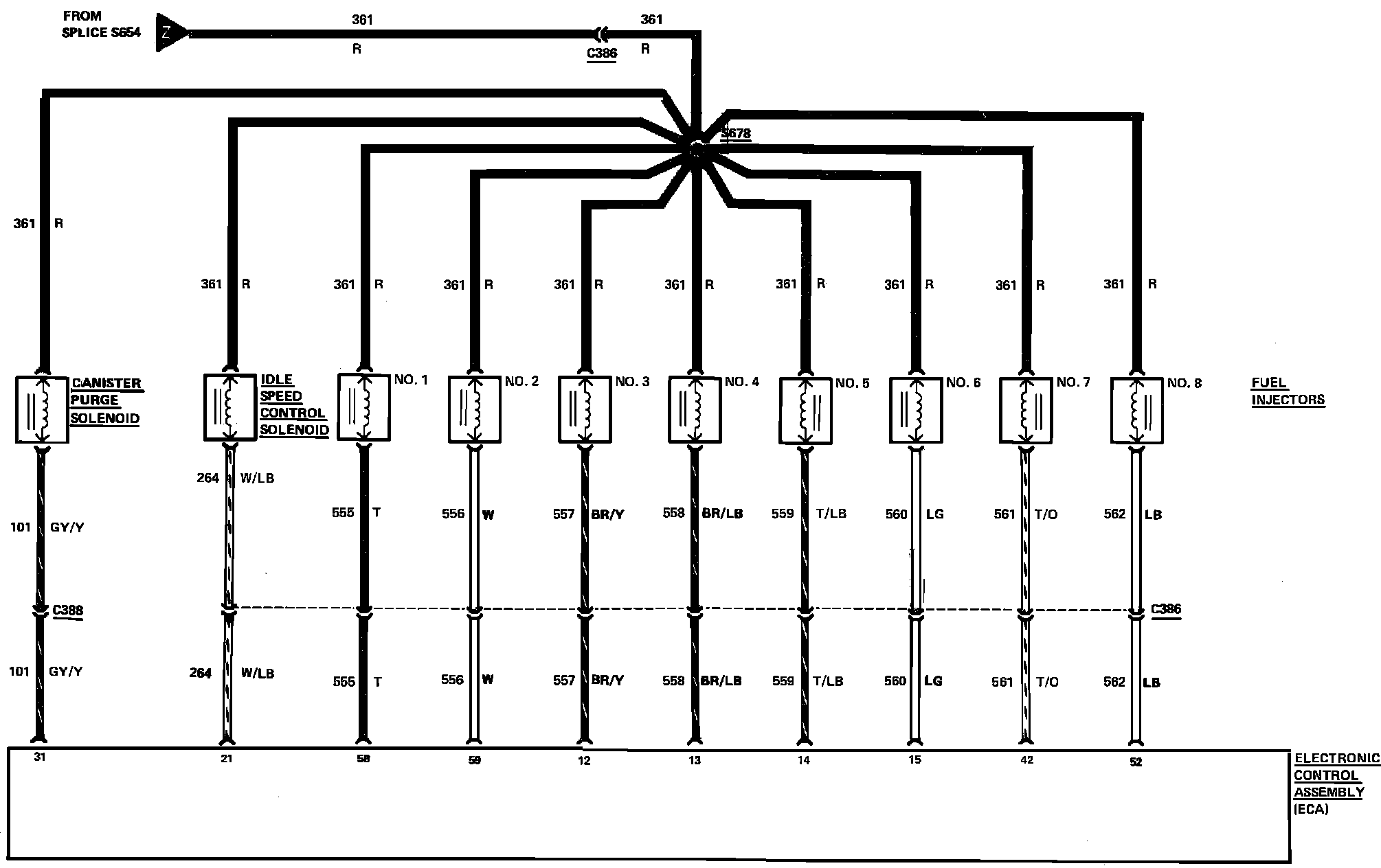

Electronic Engine Control System Wiring Circuit:

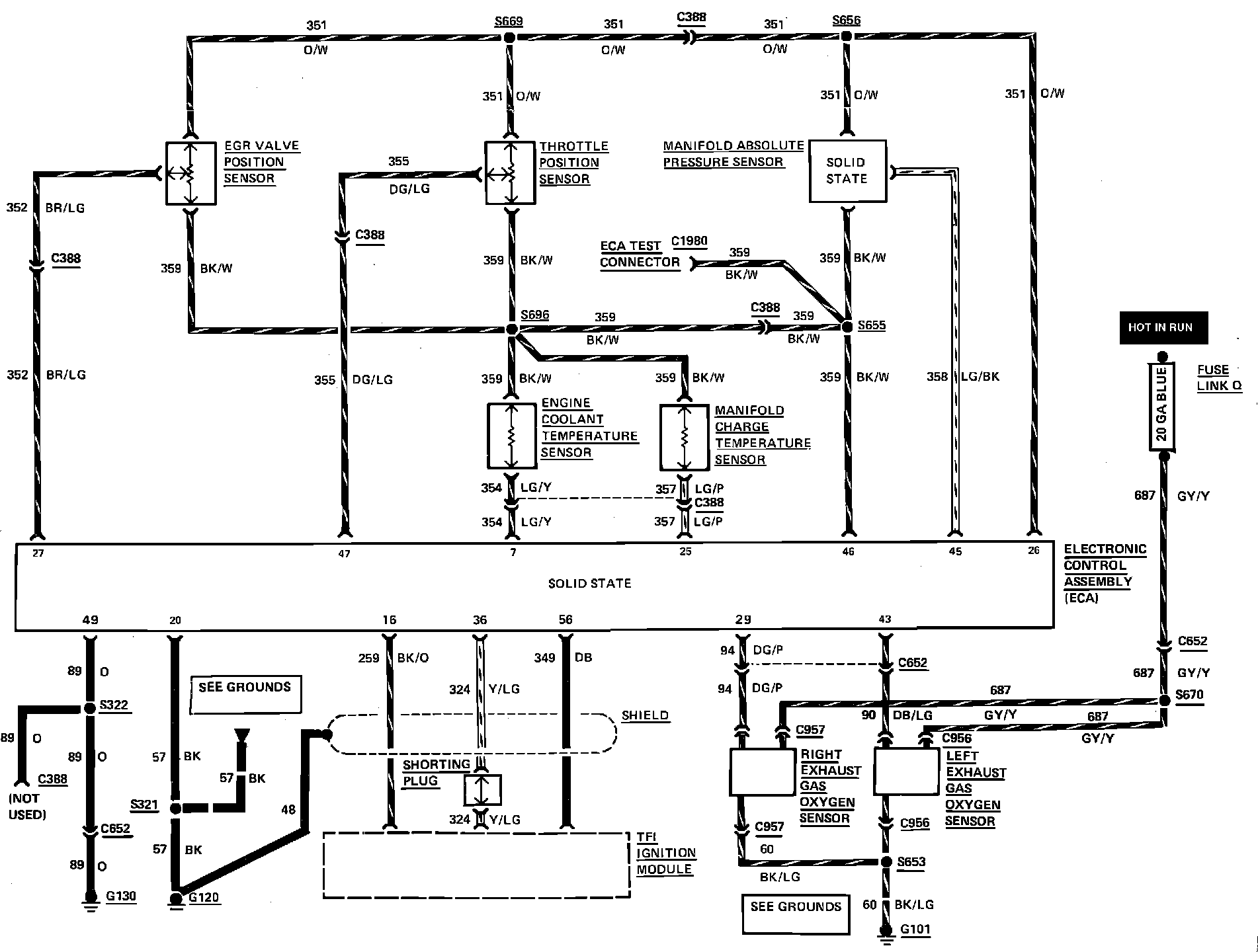

Electronic Engine Control System Wiring Circuit:

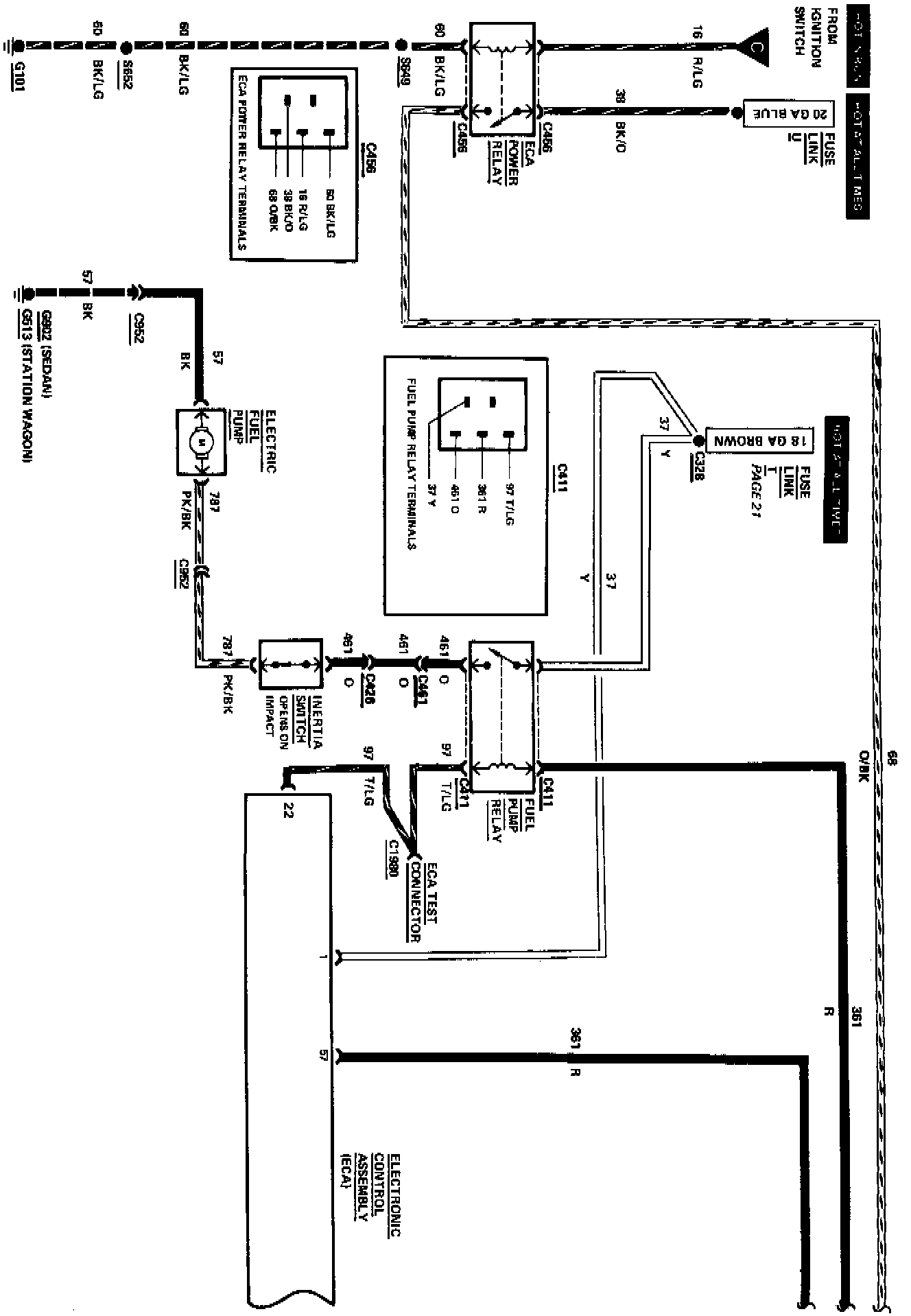

Electronic Engine Control System Wiring Circuit:

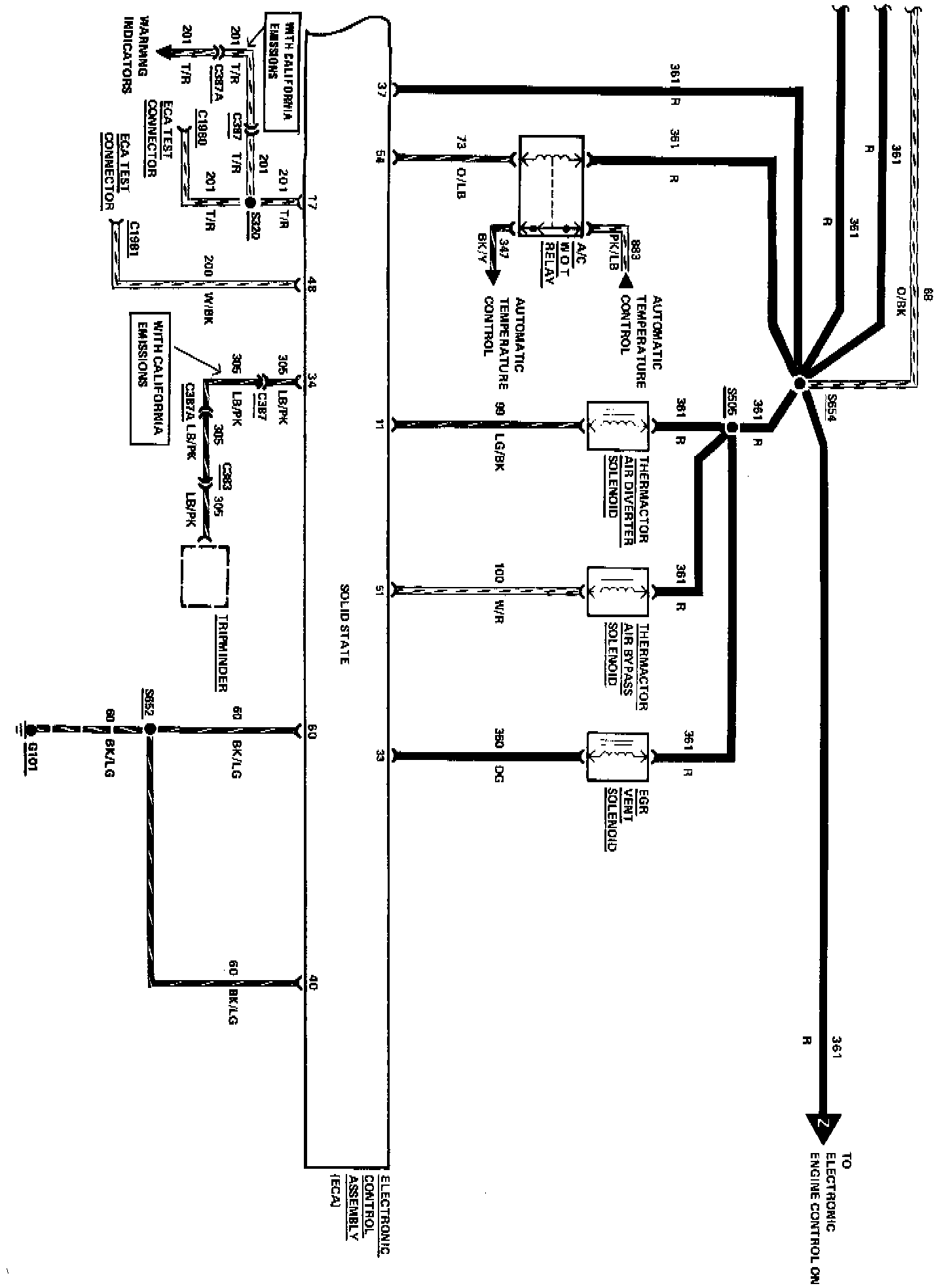

Electronic Engine Control System Wiring Circuit:
