Power Steering Seal Kit - Installation Revision

90ford11
^ SHOP MANUAL - 1988 - PAGE 13-46-13 - POWER STEERING SEAL KIT INSTALLATION PROCEDURES REVISED

^ SHOP MANUAL - 1989 - PAGE 13-46-13 - POWER STEERING SEAL KIT INSTALLATION PROCEDURES REVISED

Article No. 90-6B-6







LINCOLN-MERCURY: 1988-89 TRACER

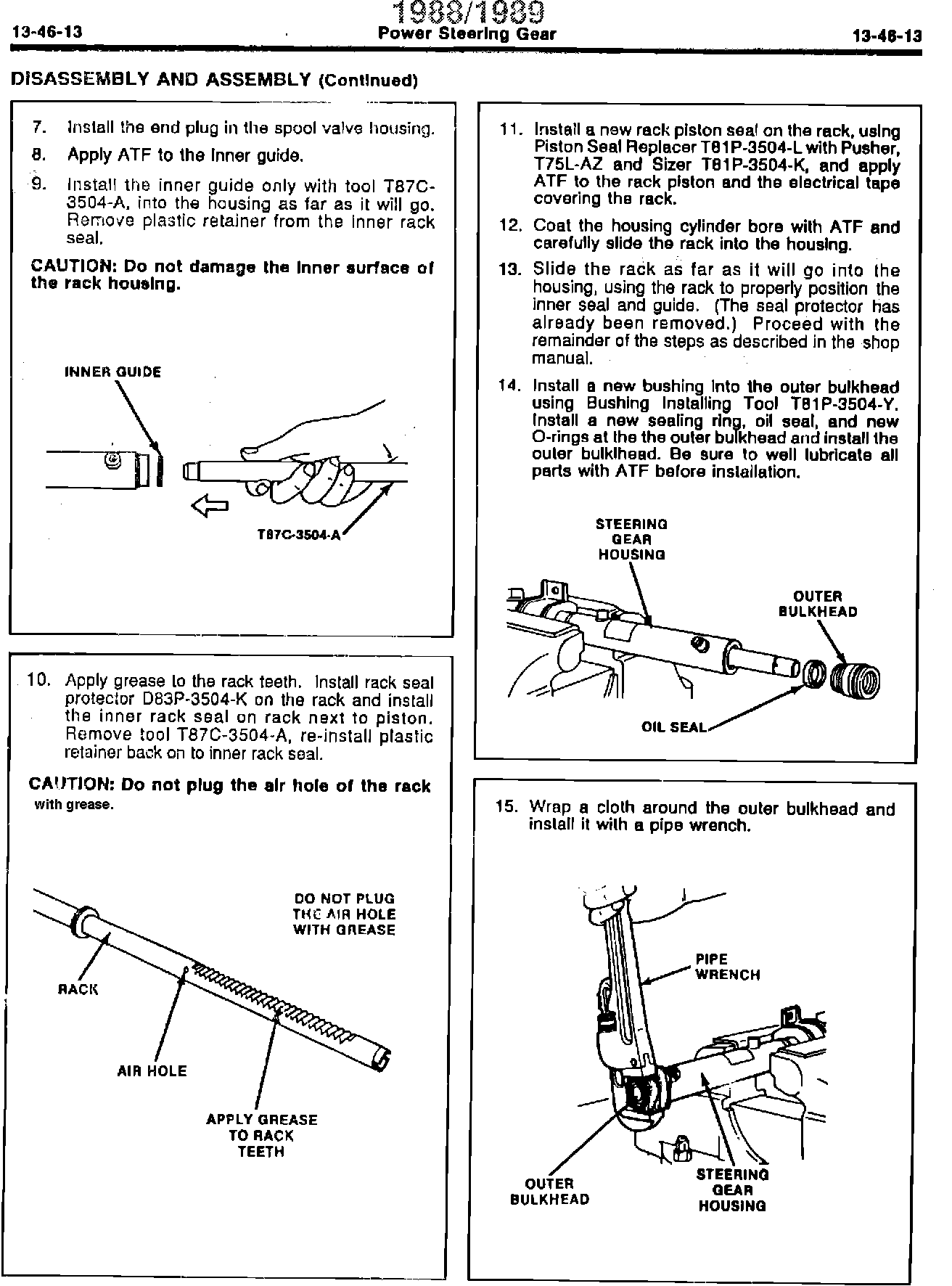

ISSUE: The power steering gear diassembly and assembly procedure has been revised. The affected steps are 9, 10, and 13 on page 13-46-13 of the 1988 and 1989 Tracer Shop Manuals.

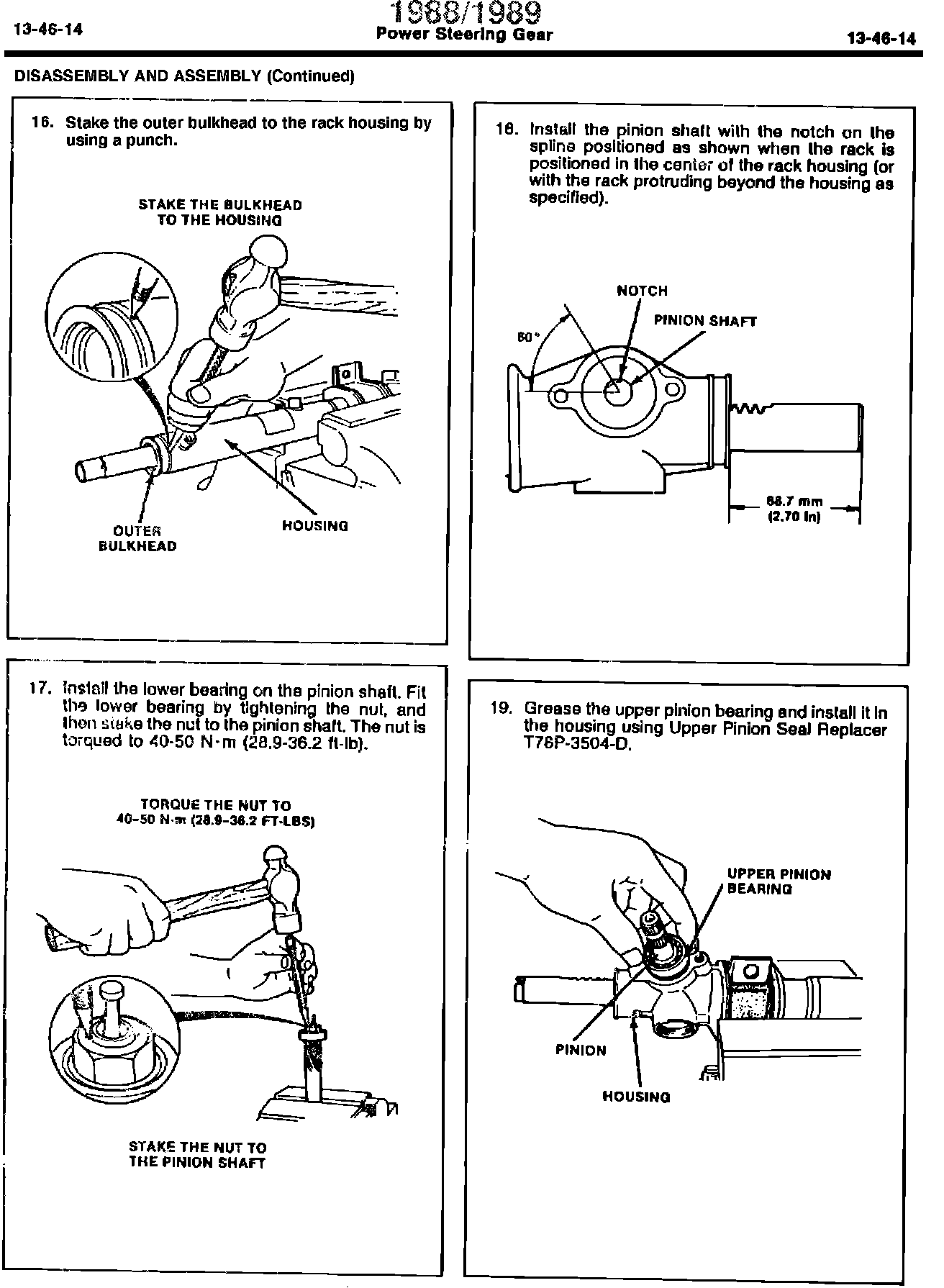

ACTION: Refer to the pages following this TSB article for the updated procedures.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
