Power Steering Pump: Service and Repair

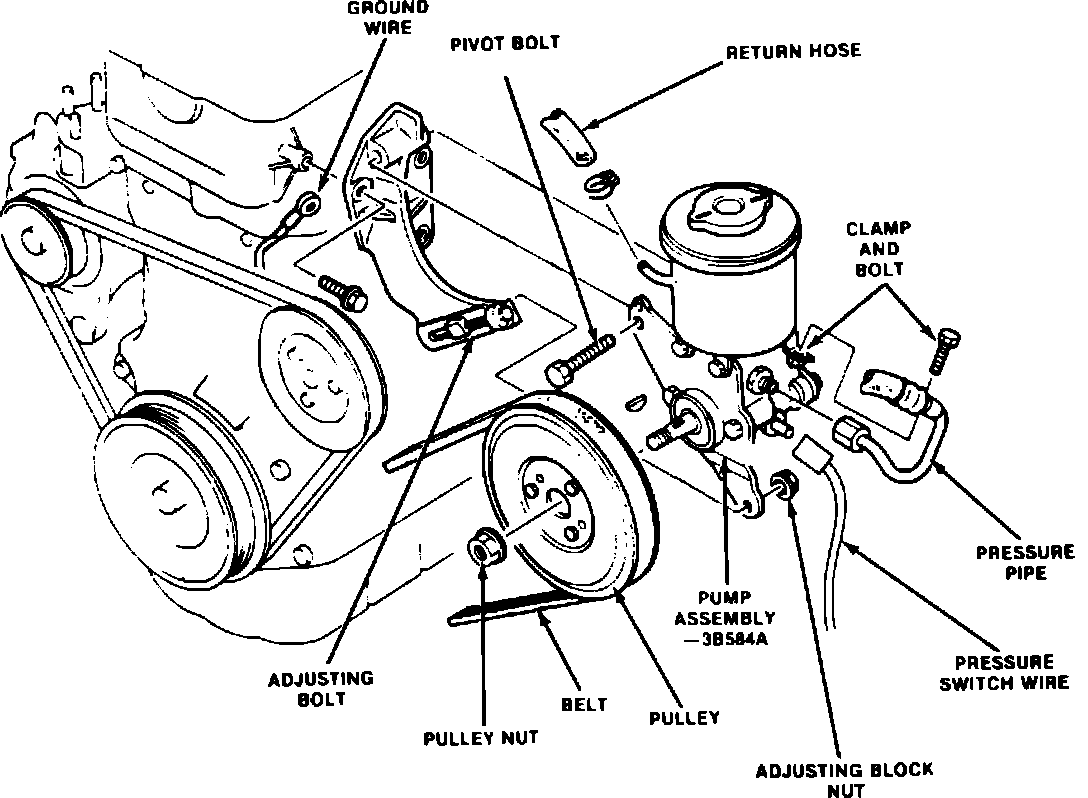

Fig. 7 Power steering pump replacement:

1. Remove power steering pump drive belt, Fig. 7.
2. Disconnect ground wire from engine lifting eye.
3. Disconnect and plug power steering pump pressure and return hoses.
4. Disconnect electrical lead from power steering pump pressure switch.
5. Remove power steering pump from bracket.
6. Remove pivot bolt, then remove power steering pump.
7. Reverse procedure to install.
