IGN 8 System Check - With Engine Analyzer Equipment
>>
Test 2 Secondary Display
>>
Test Equipment & Step 8A
Test Equipment & Step 8A

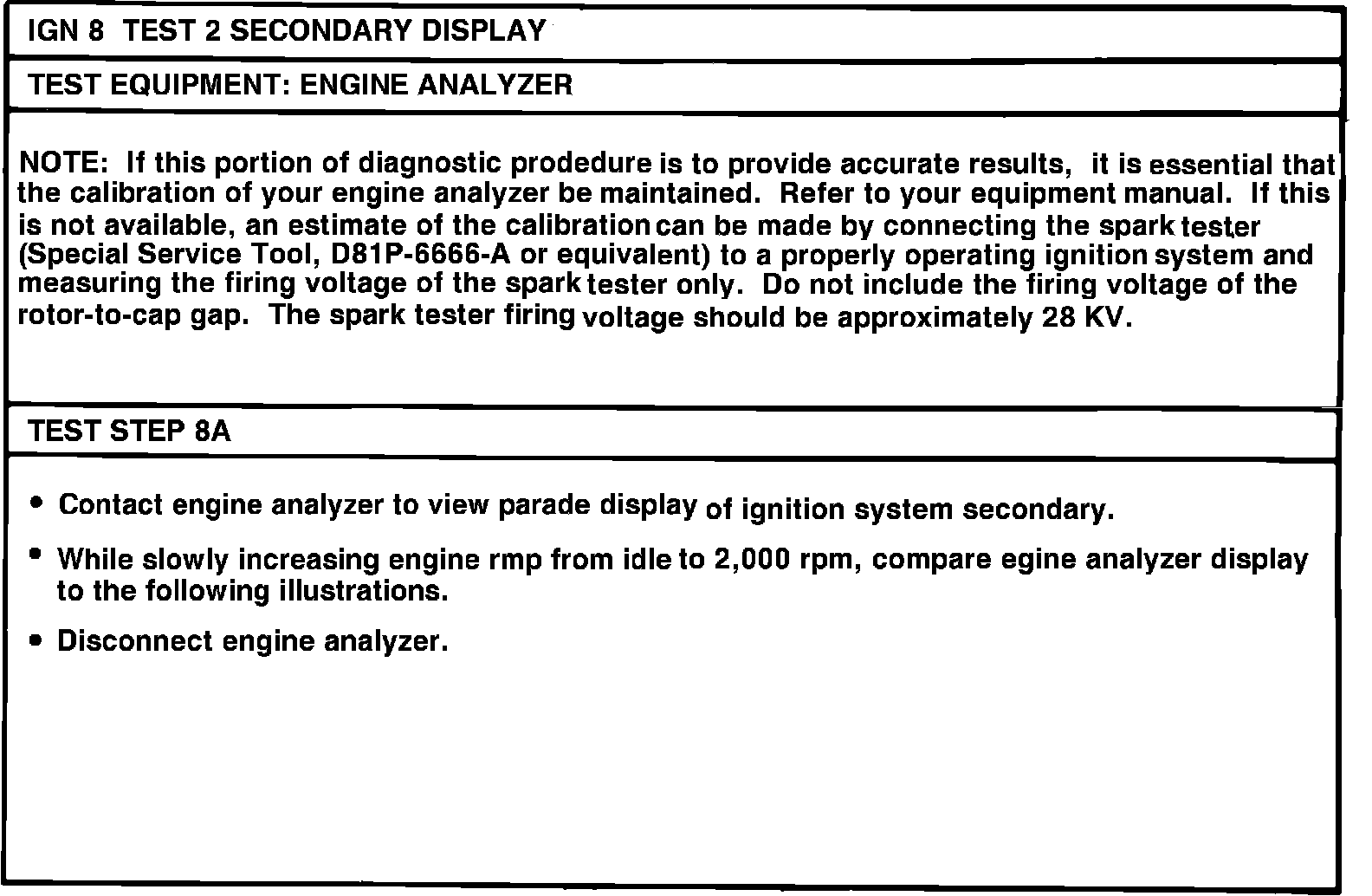

Fig. 8c Ignition system diagnosis, system check using engine analyzer (Part 3 of 10):
