IGN 8 System Check - With Engine Analyzer Equipment
>>
Preliminary Checkout and Required Equipment
Preliminary Checkout and Required Equipment

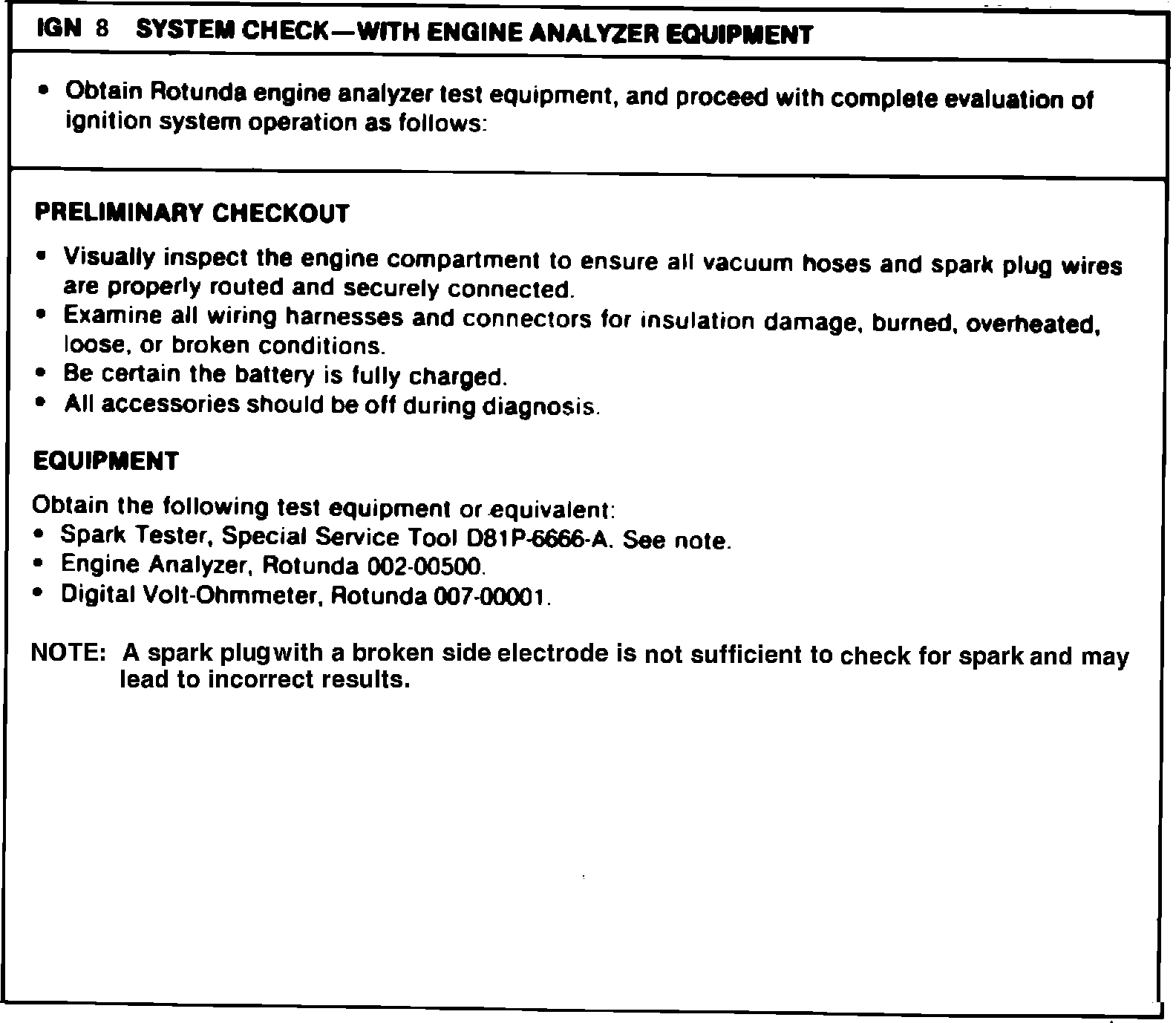

Fig. 8a Ignition system diagnosis, system check using engine analyzer (Part 1 of 10):
