Mercury
>>
1988
>>
Tracer L4-1589cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
IGN 4 Distributor Inspection
IGN 4 Distributor Inspection

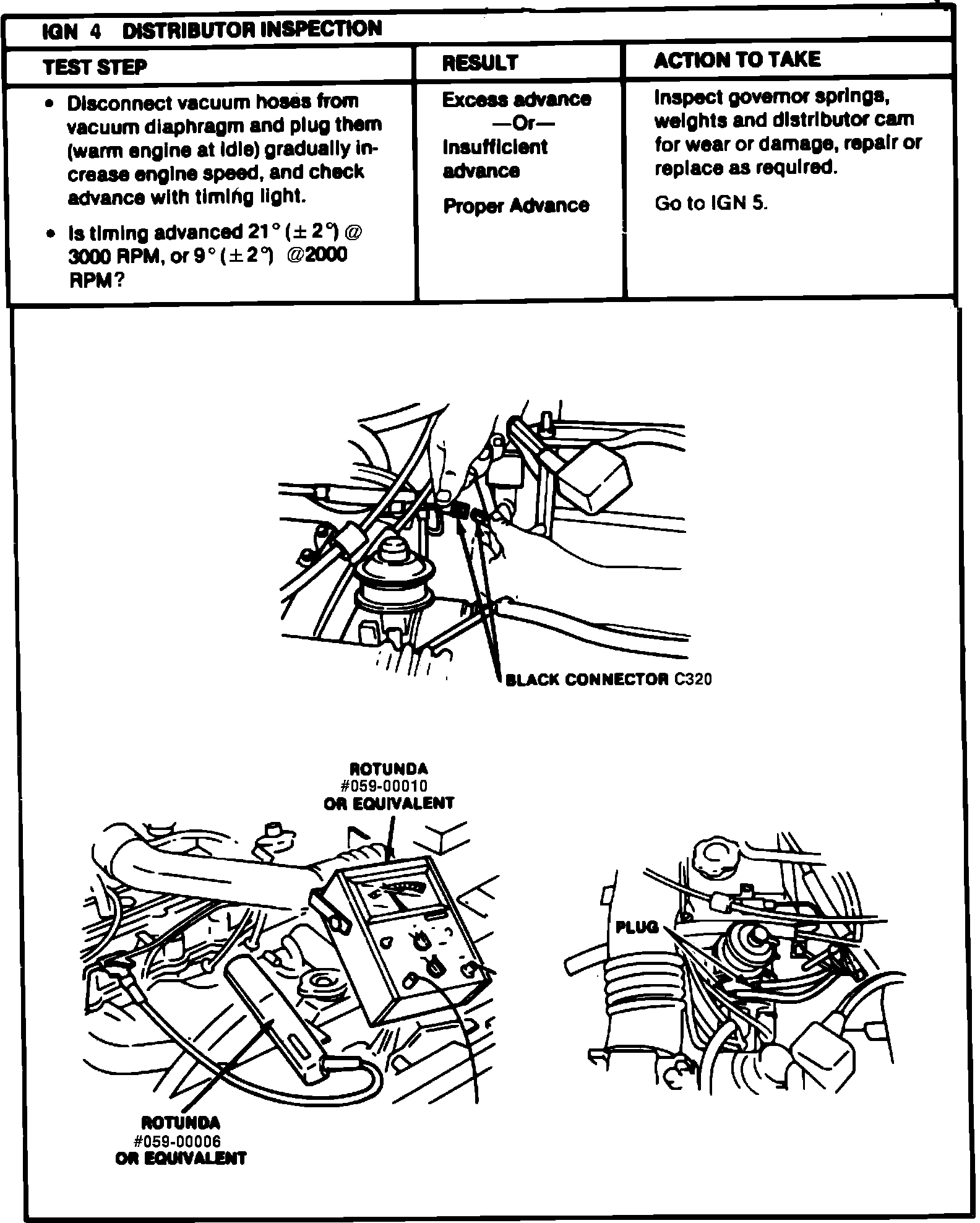

Fig. 4 Ignition system diagnosis (distributor inspection):
