IGN 16 Check For Electrical Short

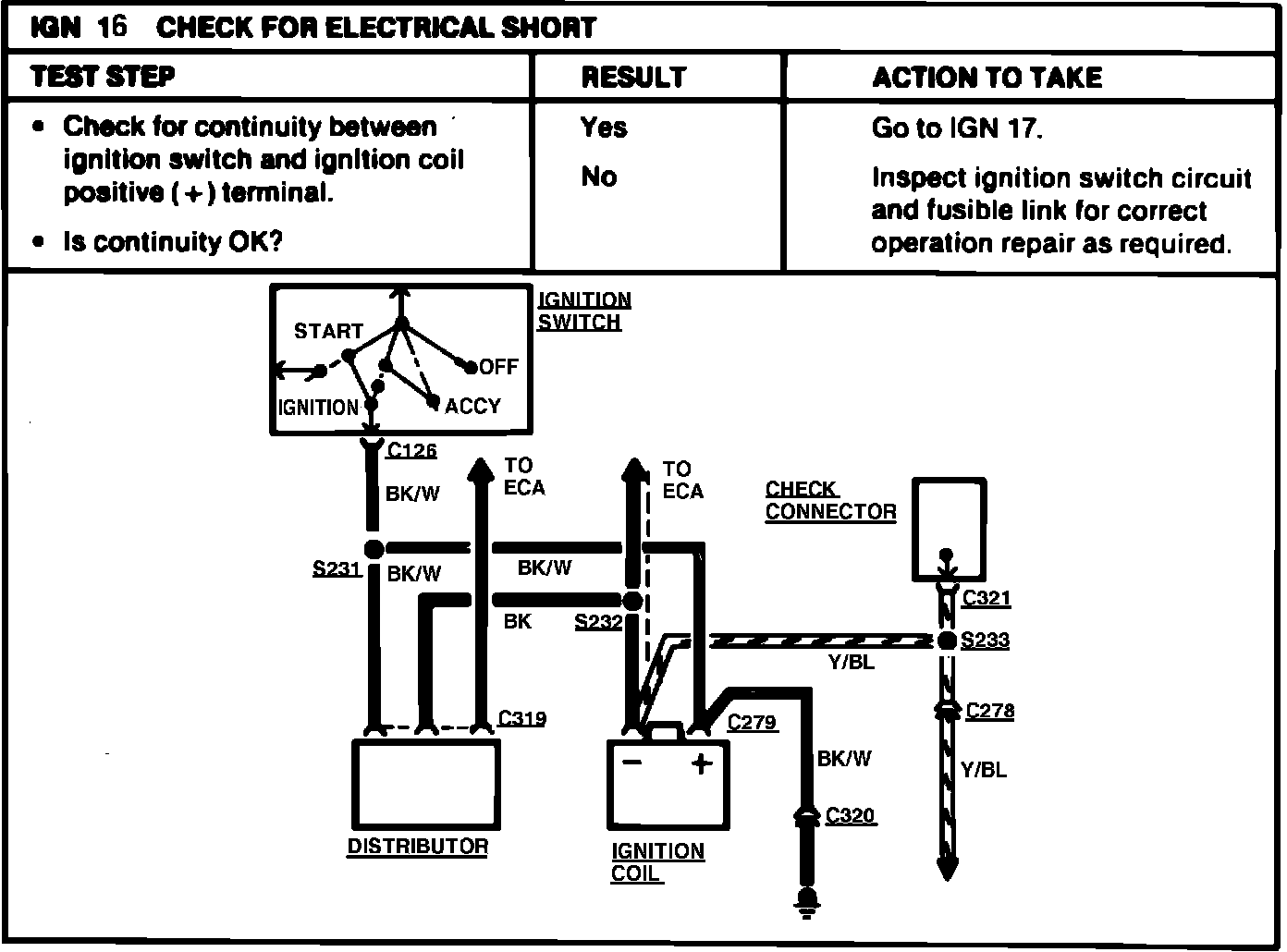

Fig. 16 Ignition system diagnosis (ignition switch electrical short check):
