IGN 14 Ignition Module Test
IGN 14 Ignition Module Test

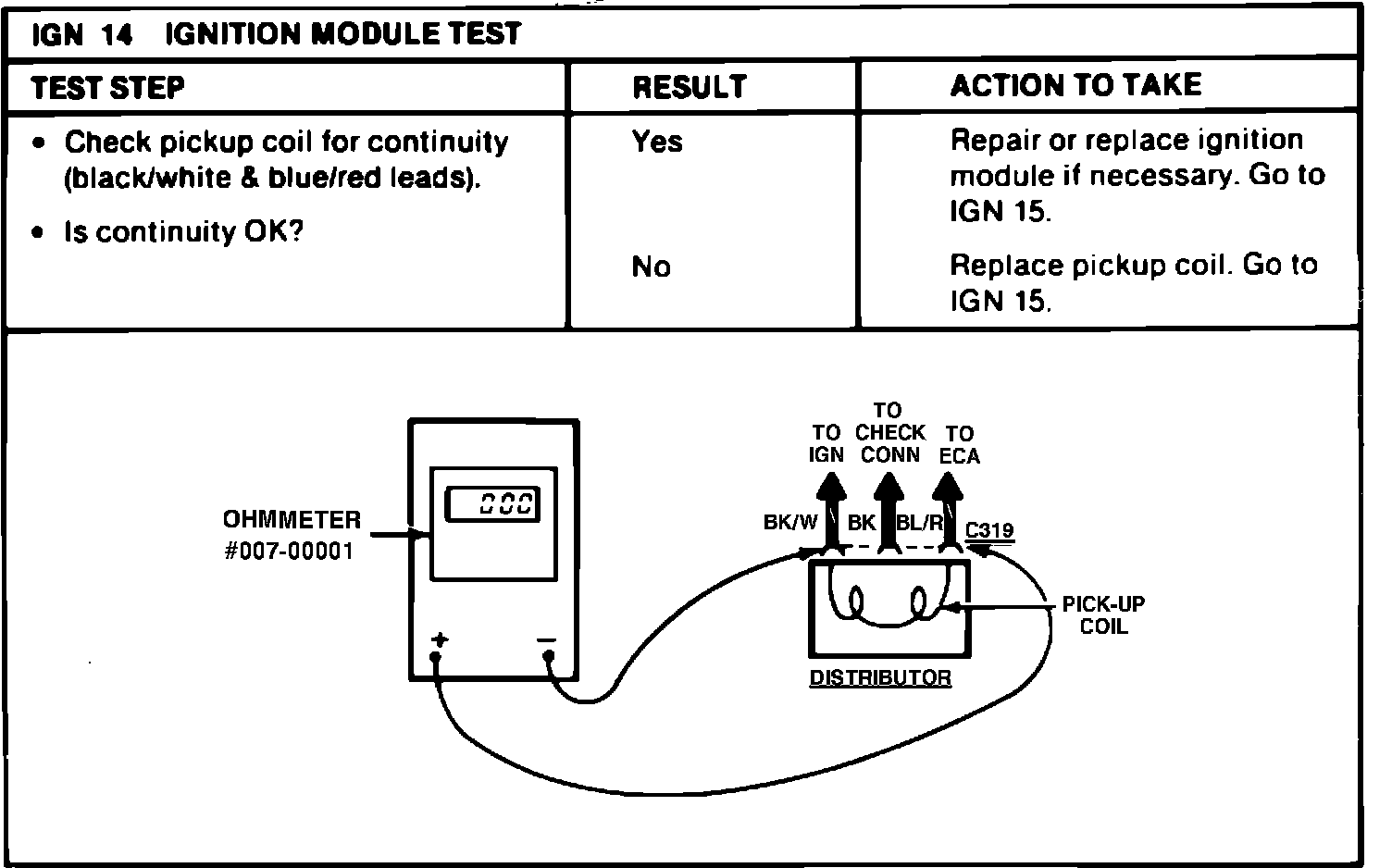

Fig. 14 Ignition system diagnosis (ignition module test):
