Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1988
>>
Tracer L4-1589cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
System Diagram

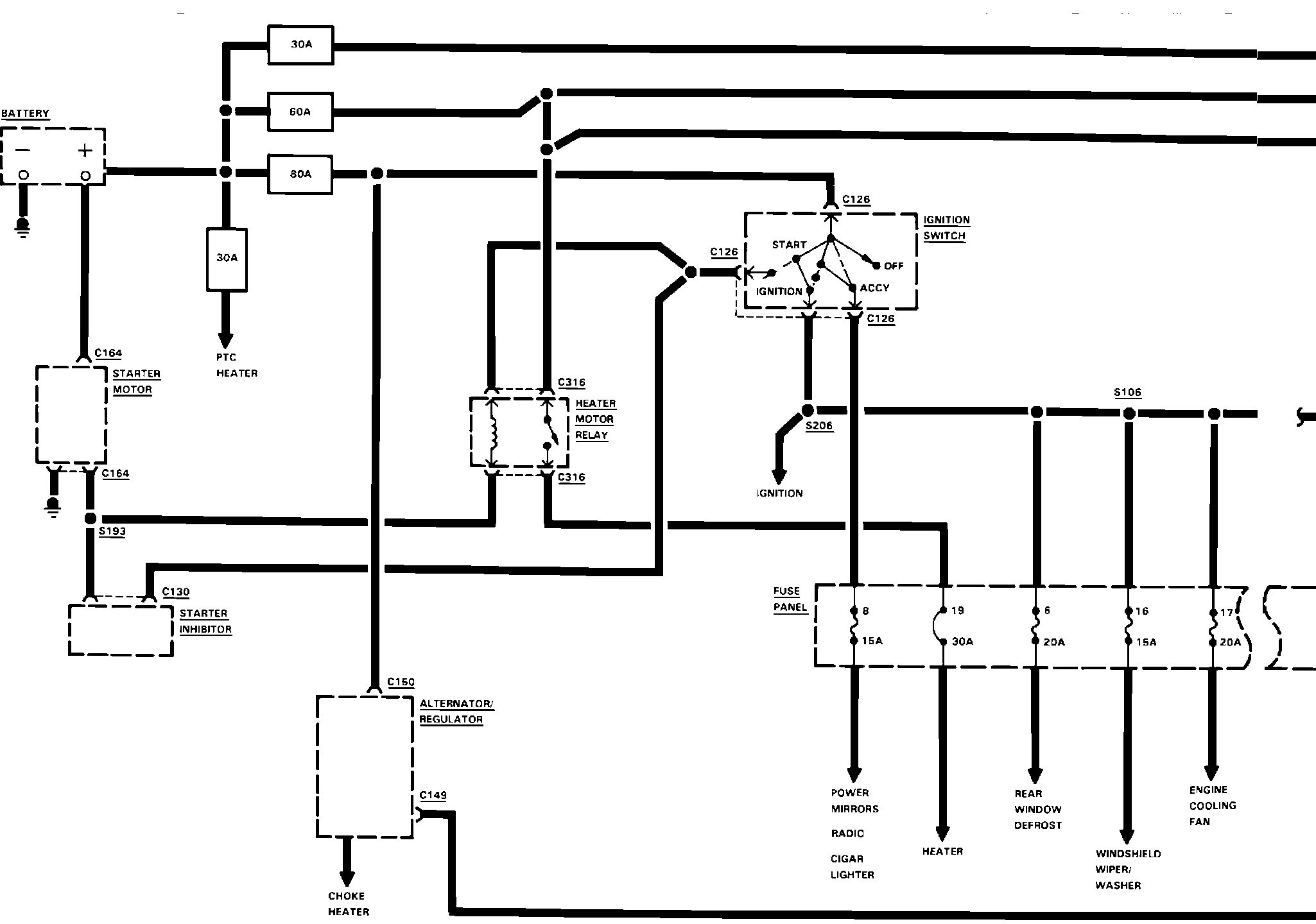

o($CCharging System & Power Distribution:
