Interval Wipers

Wiper Switch:





Terminal Locations

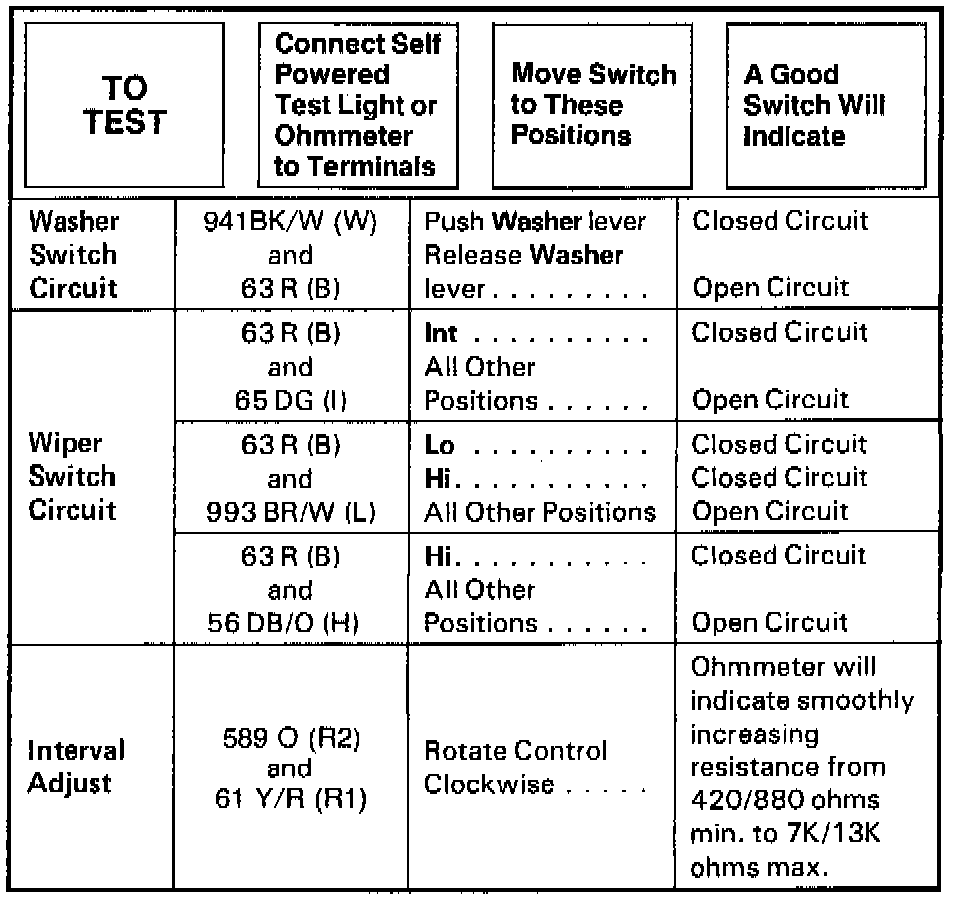

Wiper/Washer Switch Tests:





Testing Procedure

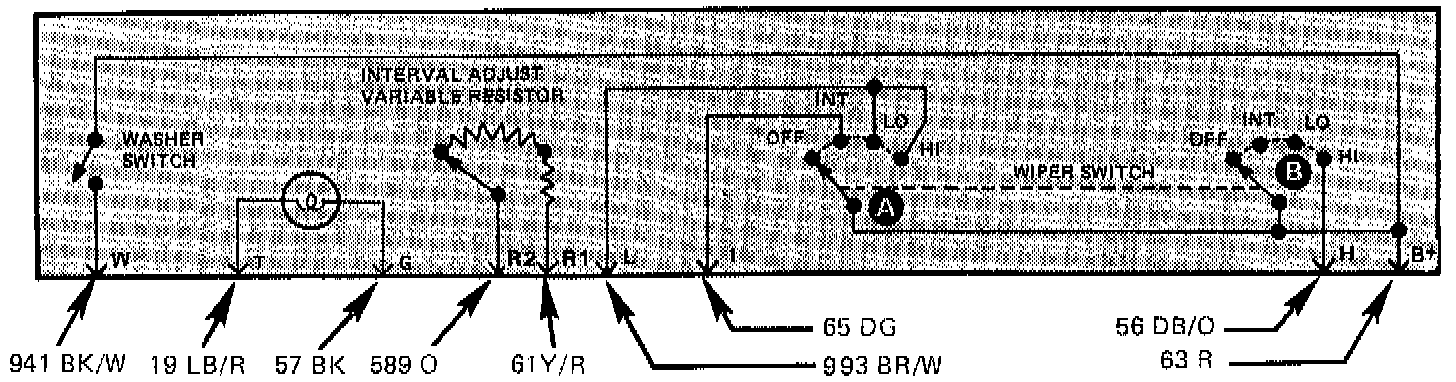

Wiper/Washer Switch:





Schematic
