Fusible Link
>>
Locations
>>

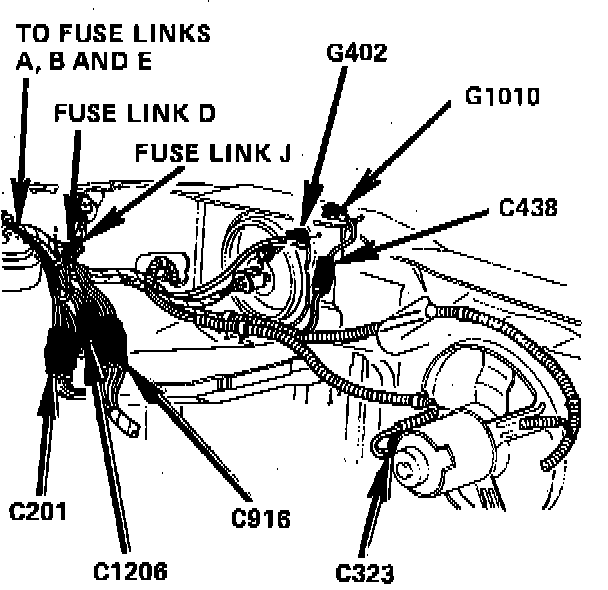

Fuse Links D, J, R
Fuse Links D, J, R
Near LH Headlamp:
Connected To Starter Relay
